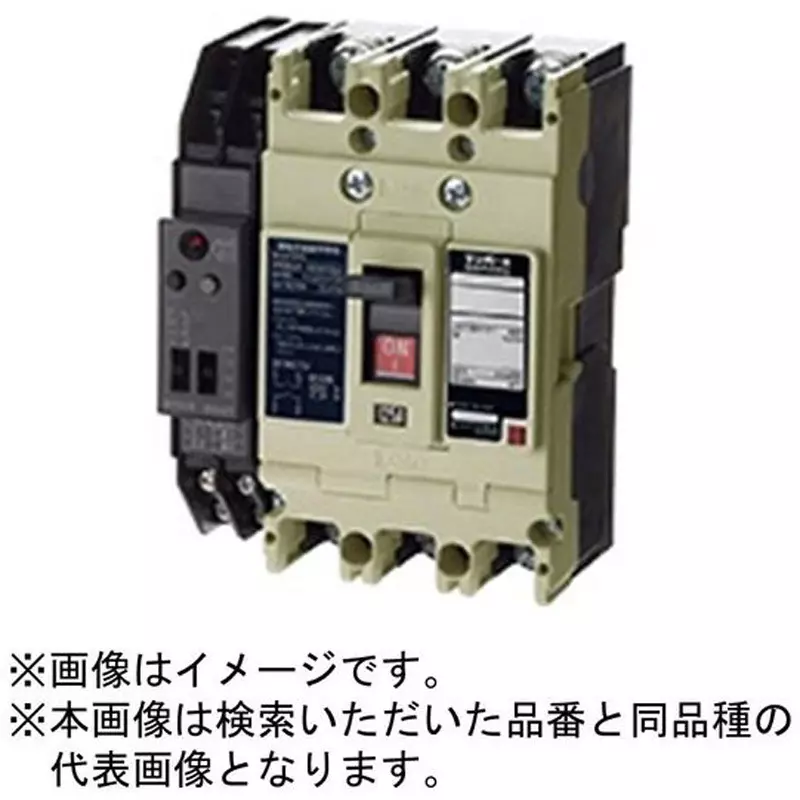

| Type of Product | Circuit Breaker |
| Model No | B123GC06W2L3 |
| Rated Breaking Capacity (kA) | [JIS C 8201-2-1 Ann(Icu/Ics) AC 240 V] 35/18 |
| Mass (Kg) | 0.75 |
Type of Product |
Circuit Breaker |
Model No |
B123GC06W2L3 |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-1 Ann(Icu/Ics) AC 240 V] 35/18 |
Mass (Kg) |
0.75 |
Type |
B-123GC |
Monotaro ID |
73002679 |
Rated Current (A) |
60 |
Suitable For |
[Compatible accessory: Handle lock, cap type (LC)] (sold separately) LC-4J, [Compatible accessory: Handle lock, locking type (HL)] (sold separately) HL-4J, [Compatible accessory: Barrier (BA)] Power supply side attachment (PHS-4), [Compatible accessory: Terminal cover, surface type (TMC)] (sold separately) TMC-1 |
Country of Origin |
Japan |
Rated Insulation Voltage (V) |
500(Ui) |
Connection Type |
Surface type |
Trip button |
Included |
Earth Leakage Indication |
[Main Unit] LED |
Reverse Connection |
Impossible |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
[Earth leakage alarm contact specifications, output extraction type] terminal block |
Type of Resetting |
[Earth Leakage Alarm Contact Specifications] Built-in reset button (external reset/optional when ordering) |
Rated Impulse Withstand Voltage (kV) |
Uimp/ 6 |
No. of Poles / Elements |
3P3E |
Terminal |
Crimp terminal type M8 |
Connectable Wire (mm2) |
Up to 60 |
Name |
With earth leakage alarm |
Tripper Type |
[Leakage current] Thermal electromagnetic |
Contact Configuration |
[Earth leakage alarm contact specifications] 2a |
