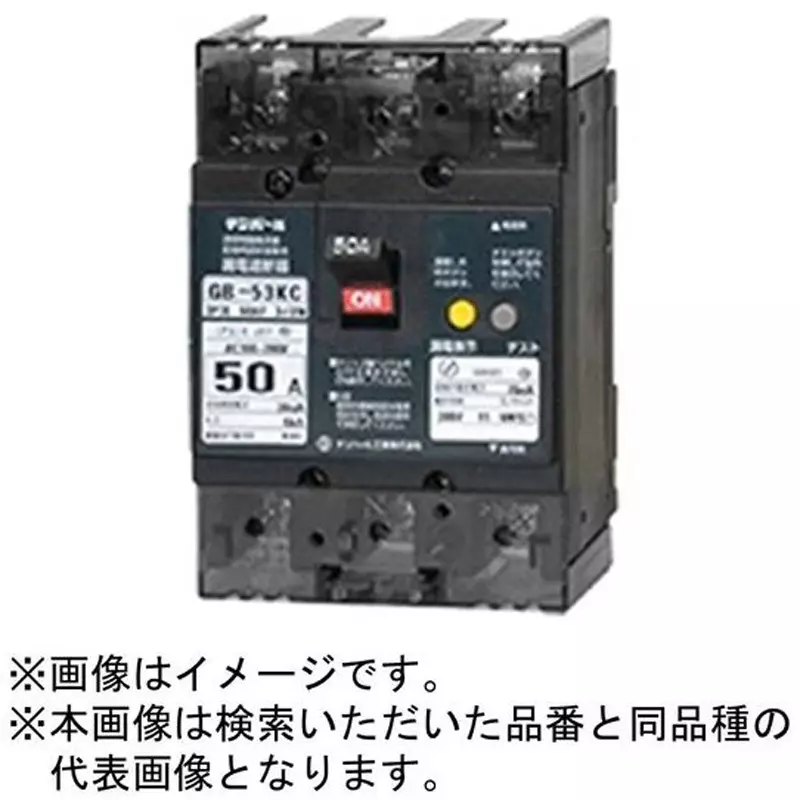

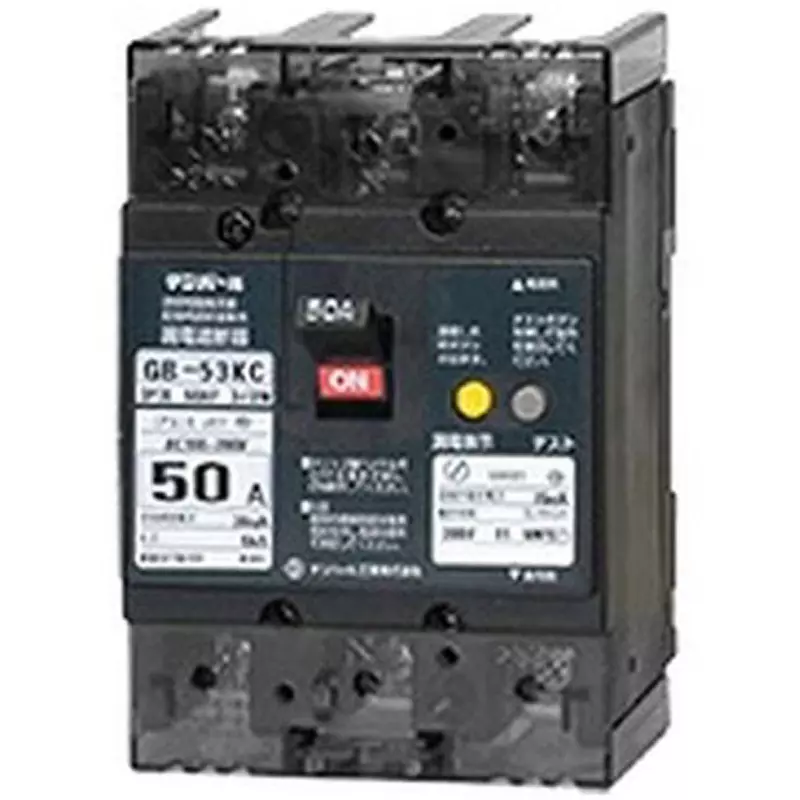

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | 53KC20100P |
| Frame (AF) | 50 |
| Overcurrent Tripper Type | Thermodynamic electromagnetic |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
53KC20100P |
Frame (AF) |
50 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
0.43 |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100 |
Monotaro ID |
72998479 |
Rated Current (A) |
20 |
Suitable For |
[Compatible accessory: Handle lock, cap type (LC)] (sold separately) RC-KA, [Compatible accessory: Terminal cover, surface type (TMC)] included (TMC-63KC) |
Country of Origin |
Japan |
Attached Device |
(AL) Alarm switch |
Applicable crimp terminal |
[Nominal cross-sectional area <sup>2mm��,</sup> allowable current (600V IV wire) 27A, wire size range 1.04 to 2.63mm�� <sup>]</sup> 2-5, [Nominal cross-sectional area <sup>5.5mm��,</sup> allowable current (600V IV wire) 49A, wire size range 2.63 to 6.64mm�� <sup>]</sup> 5.5-5, [Nominal cross-sectional area <sup>8mm��,</sup> allowable current (600V IV wire) 61A, wire size range 6.64 to <sup>10.52mm��</sup> ] 8-5, [Nominal cross-sectional area <sup>14mm��,</sup> allowable current (600V IV wire) 88A, wire size range 10.52 to <sup>16.78mm��</sup> ] 14-5 |
Connection Type |
Surface Type |
Earth Leakage Indication |
Included |
Reverse Connection |
Impossible |
Included Components |
Mounting screws (M4 x 60) x 2, wood screws (4 x 60) x 2, terminal covers x 2, sealing plates x 2 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
No. of Poles / Elements |
3P3E |
Terminal |
Wire clamping method (crimp terminals can be used) M5 |
Connectable Wire (mm2) |
Up to 22 |
Name |
K series (distribution panel agreement type size) |

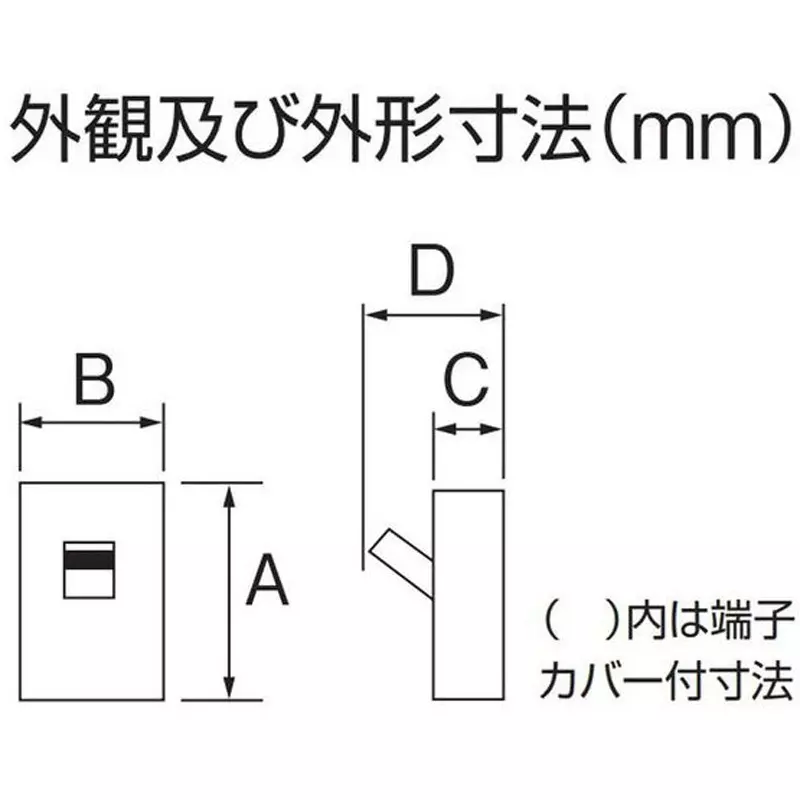

External Dimensions / Height (mm) |
60, 79 (height to the handle) |
