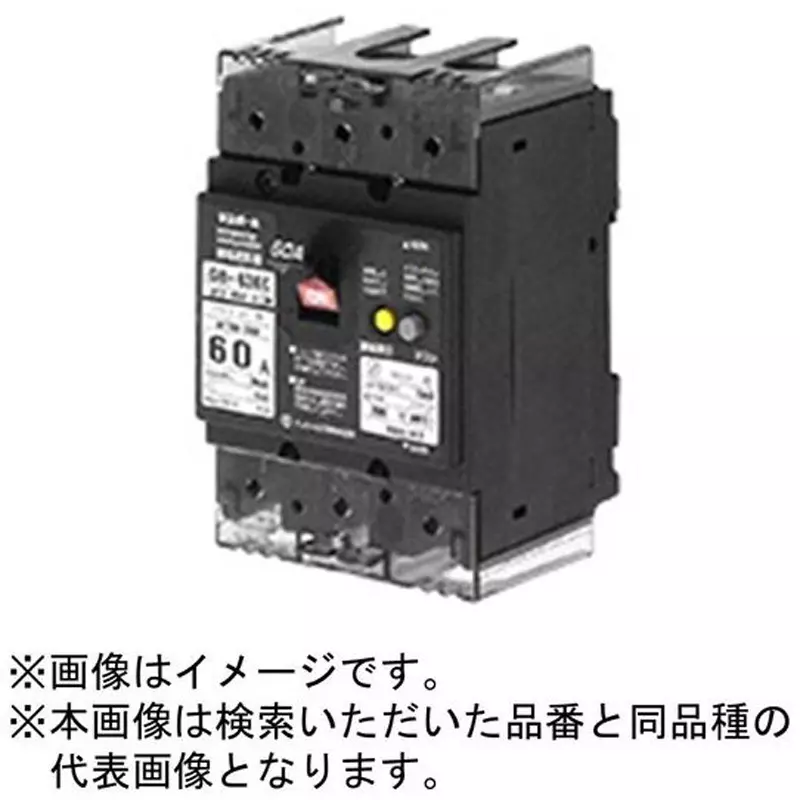

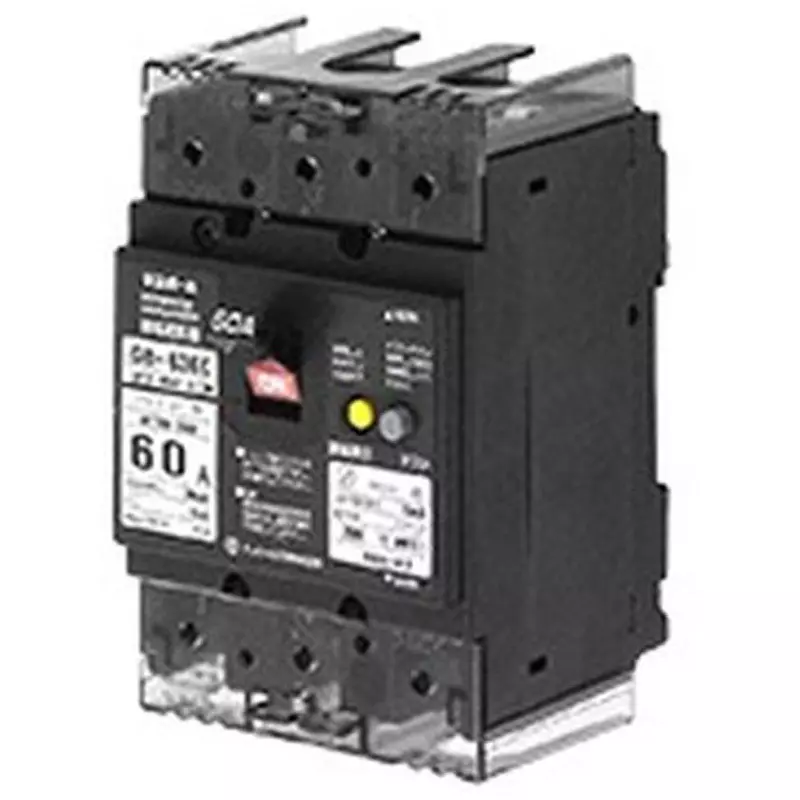

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | 63KC60100P |
| Overcurrent Tripper Type | Thermodynamic electromagnetic |
| Mass (Kg) | 0.44 |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
63KC60100P |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
0.44 |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100 |
Monotaro ID |
72998531 |
Rated Current (A) |
60 |
Suitable For |
[Compatible accessory: Handle lock, cap type (LC)] (sold separately) RC-KA, [Compatible accessory: Terminal cover, surface type (TMC)] included (TMC-63KC) |
Country of Origin |
Japan |
Attached Device |
(AL) Alarm switch |
Applicable crimp terminal |
[Nominal cross-sectional area <sup>14mm��,</sup> allowable current (600V IV wire) 88A, wire size range 10.52 to 16.78mm�� <sup>]</sup> 14-5, [Nominal cross-sectional area <sup>22mm��,</sup> allowable current (600V IV wire) 115A, wire size range 16.78 to 26.66mm�� <sup>]</sup> 22-6S |
Connection Type |
Surface Type |
Earth Leakage Indication |
Included |
Reverse Connection |
Impossible |
Included Components |
Mounting screws (M4 x 60) x 2, wood screws (4 x 60) x 2, terminal covers x 2, sealing plates x 2 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
No. of Poles / Elements |
3P3E |
Terminal |
Wire clamping method (crimp terminals can be used) M6 |
Connectable Wire (mm2) |
Up to 22 |
Motor Capacity |
15 kW (AC 200 V) |
Name |
K series (distribution panel agreement type size) |
Remark |
For motor protection |
