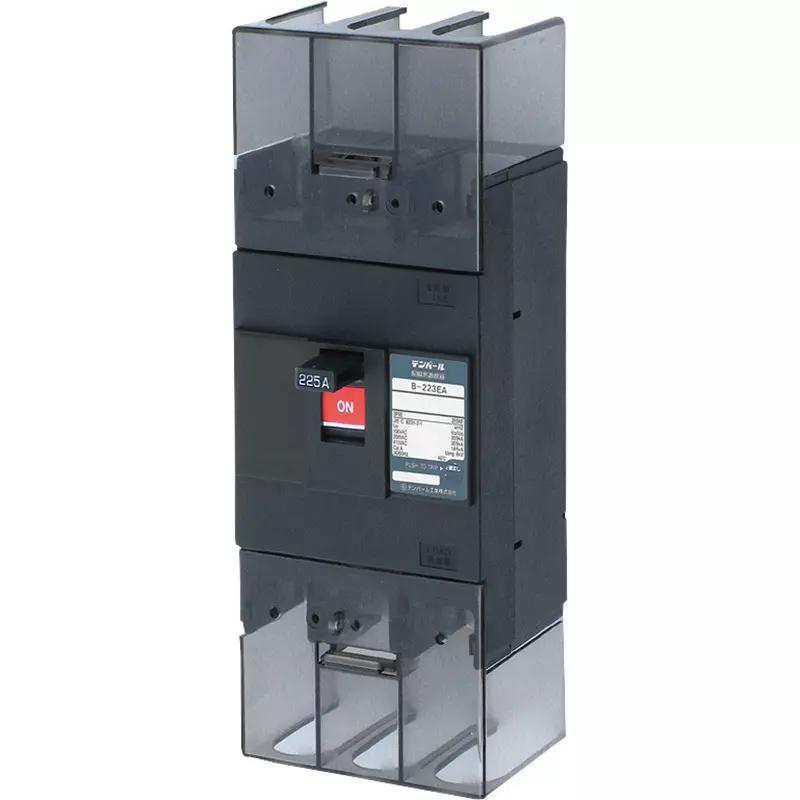

| Type of Product | Circuit Breaker |
| No. of Pole | 3P |
| Model No | B-223EA22 |
| Overcurrent Tripper Type | Thermodynamic electromagnetic |
Type of Product |
Circuit Breaker |
No. of Pole |
3P |
Model No |
B-223EA22 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
1.4 |
Type |
Circuit breaker for wiring |
Rated Voltage (V) |
AC100-200-415 |
Monotaro ID |
32739061 |
Rated Current (A) |
225 |
Country of Origin |
Japan |
Connection Type |
Surface type |
Reverse Connection |
Possible |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Surface type terminal / crimp terminal type (crimp terminal included) |
Rated Impulse Withstand Voltage (kV) |
6 |
Dimension B (Φmm) |
105 |
Dimension A (Φmm) |
165(255) |
Dimension d |
82 mm |
Dimension C |
60 mm |
Terminal |
M8 |
Connectable Wire (mm2) |
(Maximum) 150 |
Motor Capacity |
(AC 200 V) 55 kW |
