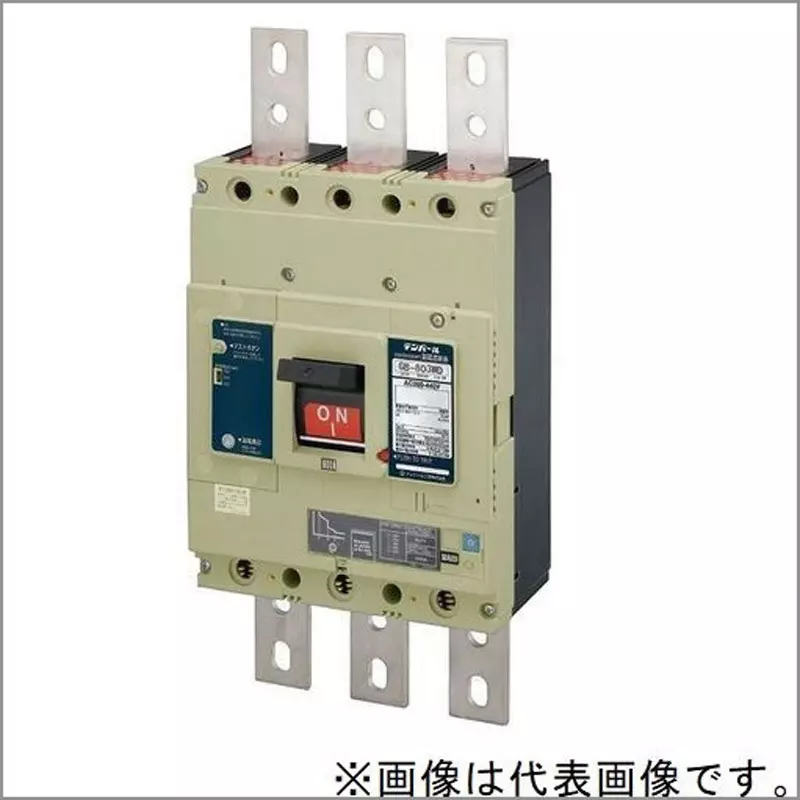

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | 803WD80W2S |
| Rated Breaking Capacity (kA) | [JIS C 8201-2-2(Icu/Ics) AC 240 V]100/100, [JIS C 8201-2-2(Icu/Ics)] 50/50 (440 V AC) |
| Frame (AF) | 800 |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
803WD80W2S |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-2(Icu/Ics) AC 240 V]100/100, [JIS C 8201-2-2(Icu/Ics)] 50/50 (440 V AC) |
Frame (AF) |
800 |
Overcurrent Tripper Type |
electronicadjustable |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100/200/500 |
Monotaro ID |
72998786 |
Rated Current (A) |
400/450/500/600/700/800 adjustable |
Country of Origin |
Japan |
Connection Type |
Back side |
Rated operating voltage (AC V) |
200���440 |
Earth Leakage Indication |
Included |
Reverse Connection |
Impossible |
Included Components |
Mounting screws (M6 x 60) x 4, wiring bolts (M12 x 40) x 12 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
[Short-term detection current (percentage of rated current)] Fixed at 1000 |
Rated Impulse Withstand Voltage (kV) |
8(Uimp) |
JIS Standard |
JIS C 8201-2-2 Ann2 |
No. of Poles / Elements |
3P3E |
Terminal |
Bar stud system |
Rated Breaking Capacity (kA) (200VAC) |
���JIS C 8201-2-2(Icu/Ics)���100/100 |
Name |
W Series (Adjustable Rated Current) |
