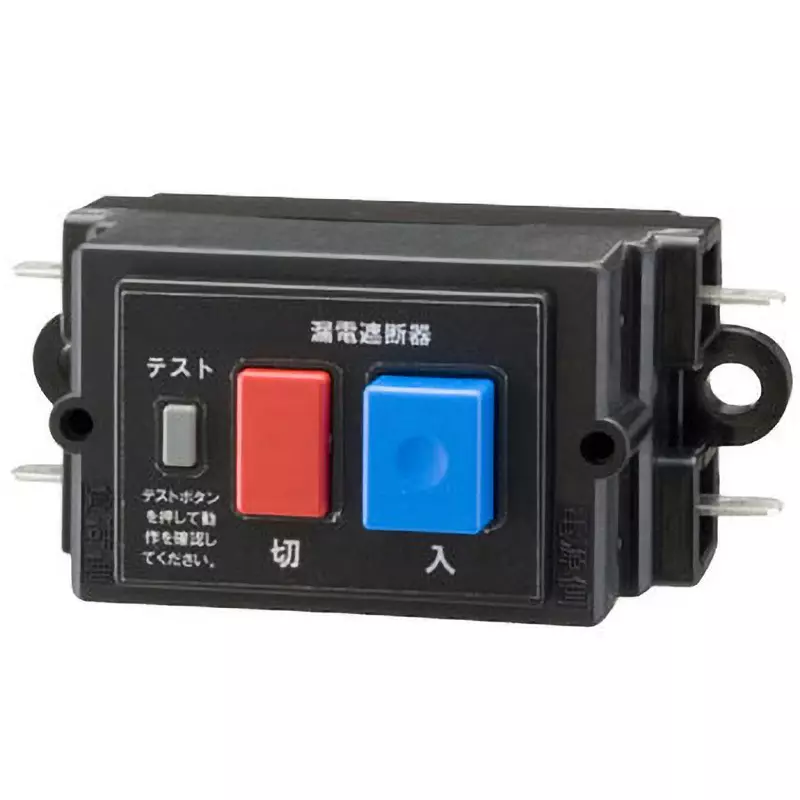

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | GB-20PB-1 15A 15MA HP |
| Operating Time | Within 0.1 seconds (high-speed type) |
| Mass (Kg) | 0.07 |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
GB-20PB-1 15A 15MA HP |
Operating Time |
Within 0.1 seconds (high-speed type) |
Mass (Kg) |
0.07 |
Type |
Horizontal mounting type |
Rated Voltage (V) |
AC 100-AC 125 |
Rated Sensitivity Current (mA) |
15 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
39210062 |
Rated Current (A) |
15 |
Country of Origin |
Japan |
Reference Ambient Temperature |
40℃ |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |

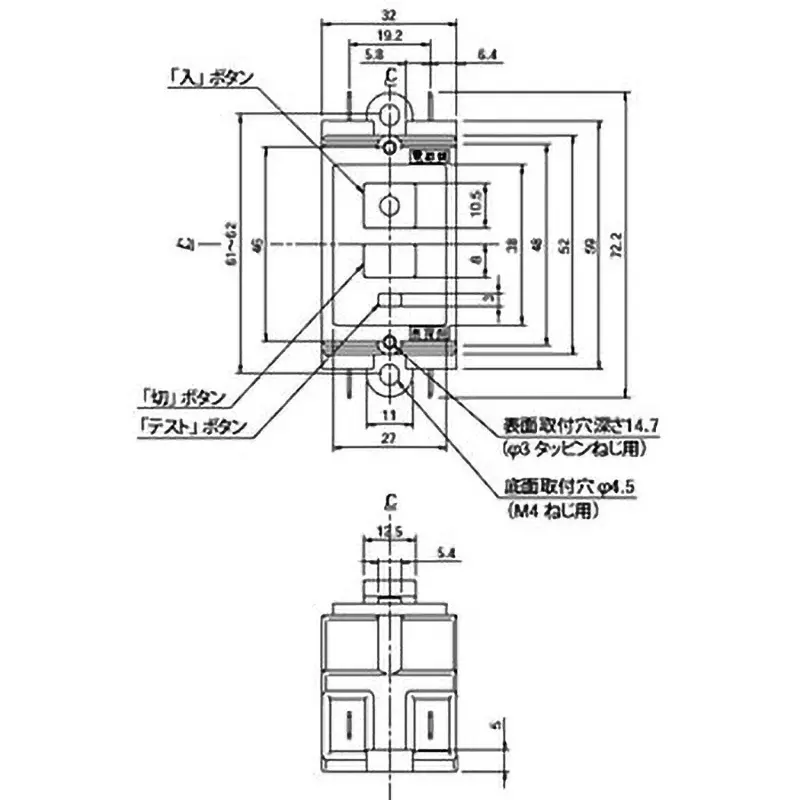

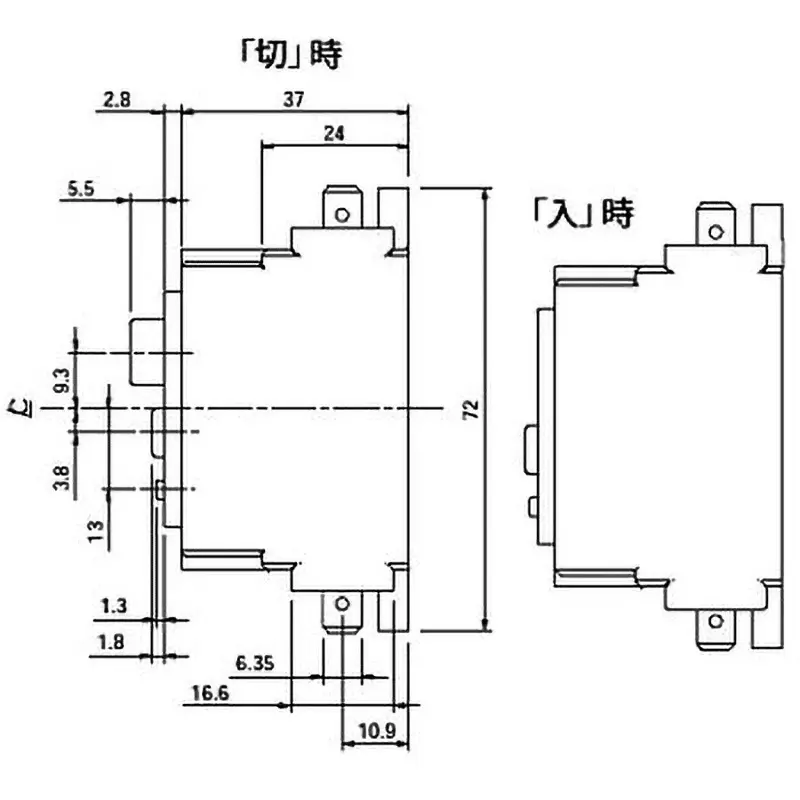

Dimension (mm) |
H32xW73xD45 (including handle) |
Dimension d |
32 mm |
Dimension W |
72 mm |
No. of Poles / Elements |
2P2E |
Dimension H (Φmm) |
45 |
Operating Temperature Range |
-10 to 40℃ |
Breaking Current (A) |
1000 |
