Ships within 25 days
View
View
View
View

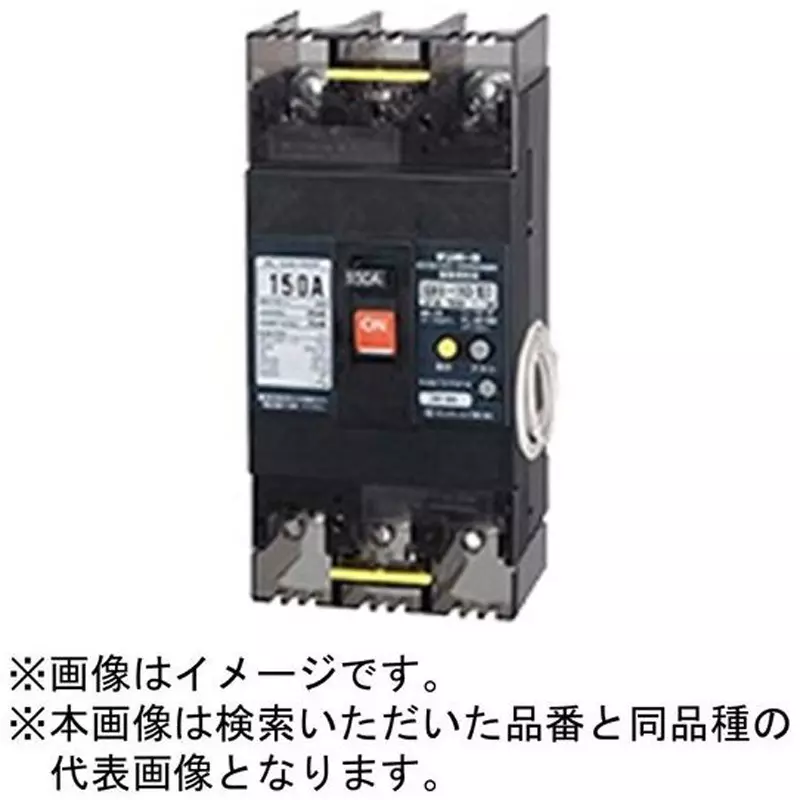

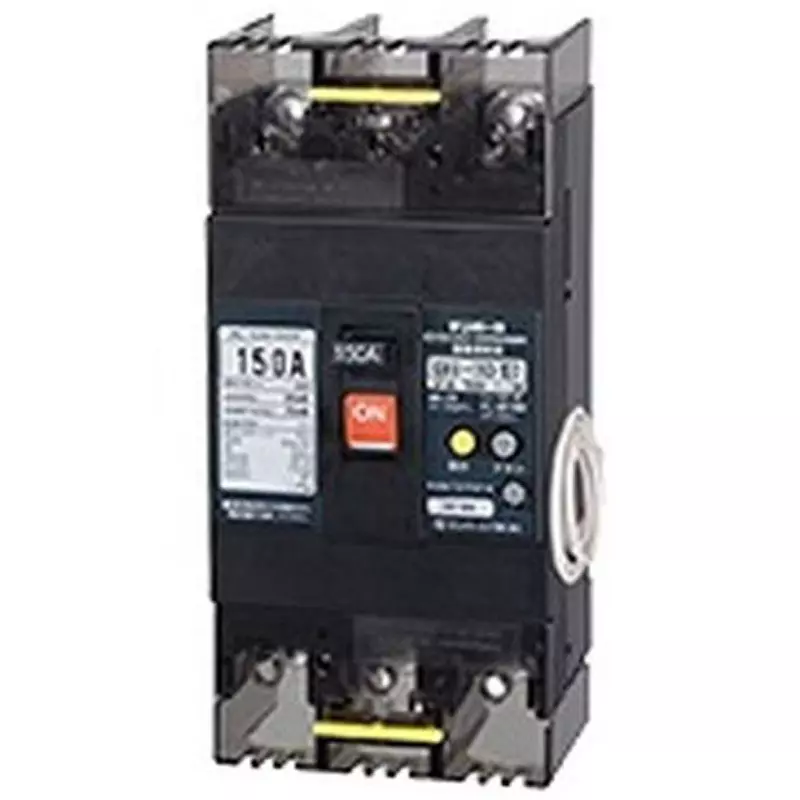

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | U15301EC15W2LVP |
| Rated Breaking Capacity (kA) | ���JIS C 8201-2-2(Icu/Ics) AC100/200V���25/7 |
| Overcurrent Tripper Type | Thermodynamic electromagnetic |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
U15301EC15W2LVP |
Rated Breaking Capacity (kA) |
���JIS C 8201-2-2(Icu/Ics) AC100/200V���25/7 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
0.75 |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100/200/500 |
Monotaro ID |
73001446 |
Rated Current (A) |
150 |
Suitable For |
[Compatible accessories: Handle lock, cap type (LC)] (sold separately) LC-153EB, [Compatible accessories: Barrier (BA)] (sold separately) PHS-2T, [Compatible accessories: Terminal cover, surface type (TMC)] included (TMC-153EC) |
Country of Origin |
Japan |
Attached Device |
(AL) Alarm switch |
Connection Type |
Surface Type |
Earth Leakage Indication |
Yes (The leakage current indicator will also be displayed when the circuit is shut off due to overvoltage.) |
Reverse Connection |
Impossible |
Included Components |
Mounting screws (M4 x 60) x 2, wood screws (4 x 60) x 2, terminal covers x 2, crimp terminals, sealing plates x 2 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Overvoltage detection lead wire included |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
No. of Poles / Elements |
3P2E |
Terminal |
Crimp terminal type (crimp terminals included) M8 |
Connectable Wire (mm2) |
Up to 60 |
Name |
With AA neutral line open phase protection |
Remark |
Overvoltage detection lead wire, heat-resistant vinyl wire, white, 0.5mm��, 400mm |
