Ships within 19 days
View
View
View
View

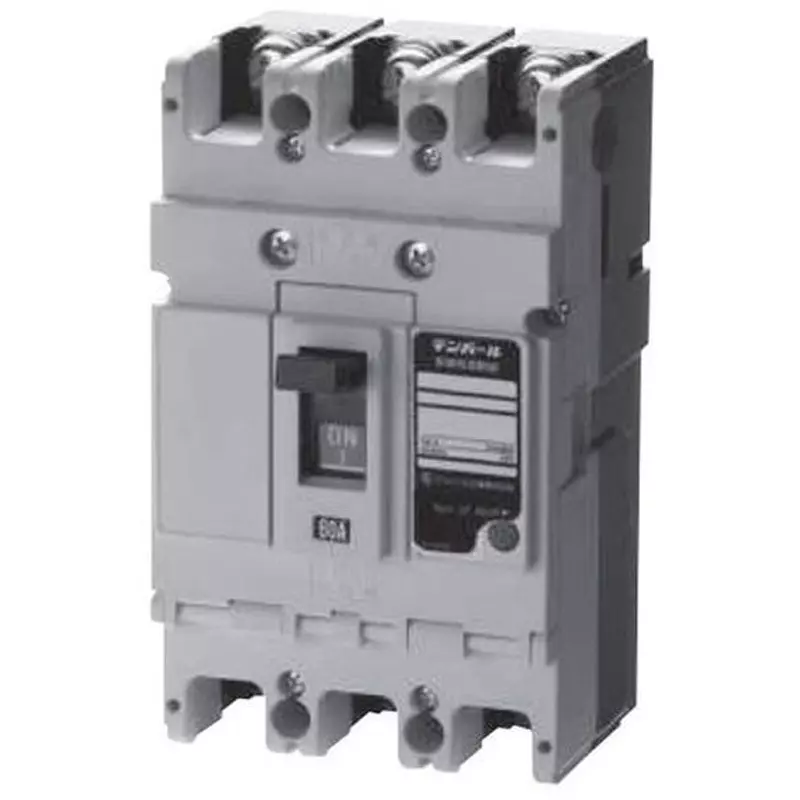

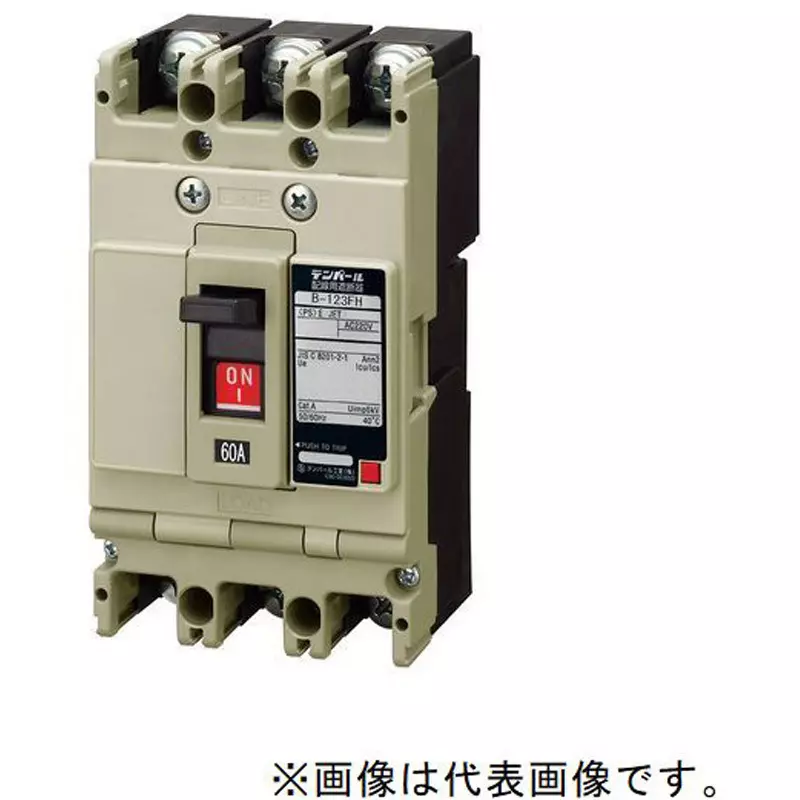

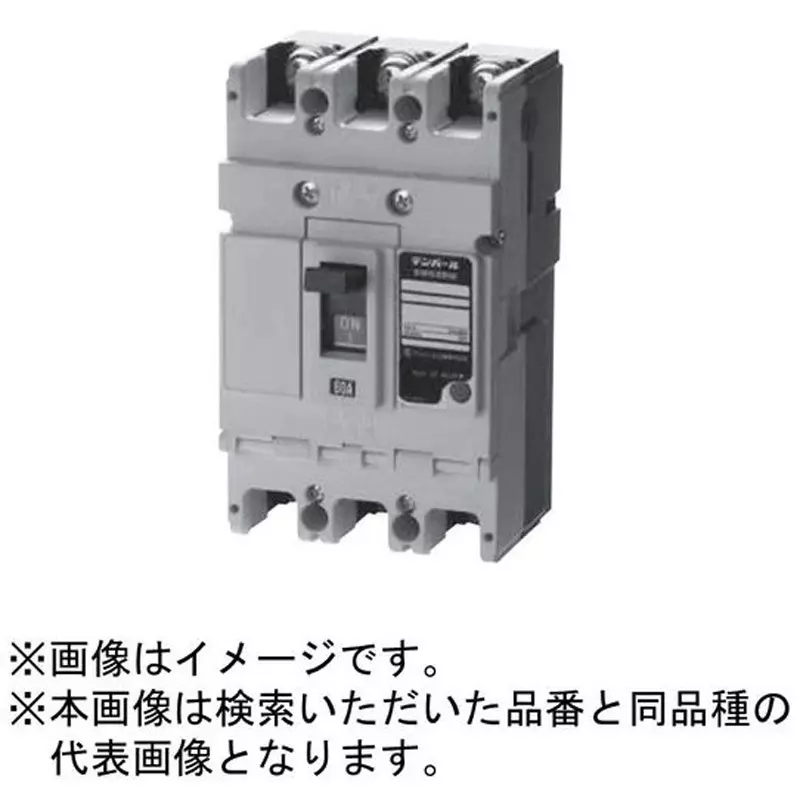

| Type of Product | Circuit Breaker |
| Model No | B123FKC02S |
| Rated Breaking Capacity (kA) | [JIS C 8201-2-1 Ann2(Icu/Ics)] AC500: 25/13, DC125V: 40/20, DC250V: 40/20 |
| Frame (AF) | 125 |
Type of Product |
Circuit Breaker |
Model No |
B123FKC02S |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-1 Ann2(Icu/Ics)] AC500: 25/13, DC125V: 40/20, DC250V: 40/20 |
Frame (AF) |
125 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Type |
B-122FKC |
Monotaro ID |
72997630 |
Rated Current (A) |
20 |
Terminal Type |
Bar stud system |
Country of Origin |
Japan |
Attached Device |
Compatible terminal cover, rear-mounted type (BTC) / sold separately (BTC-2C) |
Rated Insulation Voltage (V) |
Ui/690 |

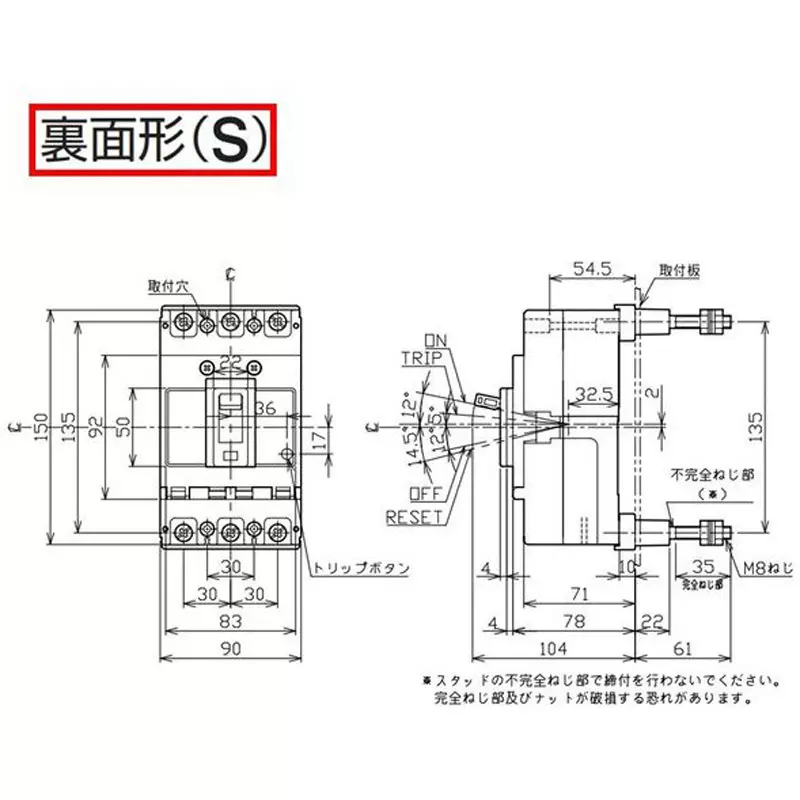

Connection Type |
Back side |
Rated operating voltage (AC V) |
200-415-500 |
Reverse Connection |
Possible (This is a "reverse connection possible" type as defined in JEAC8001 Document 3-5-8 of the Internal Wiring Regulations. For grid-connected applications such as solar power generation systems, connect the commercial power supply to the power source side and the power generation system side to the load side. Regardless of the application, do not connect the commercial power supply to the load side.) |
Included Components |
Mounting screws (M4 x 65) x 2 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Rated Impulse Withstand Voltage (kV) |
Uimp/ 8 |
JIS Standard |
JIS C 8201-2-1 Ann2 |
No. of Poles / Elements |
3P/3E |
Rated Breaking Capacity (kA) (100VAC) |
[JIS C 8201-2-1 Ann2(Icu/Ics)]50/25 |
Rated Breaking Capacity (kA) (200VAC) |
[JIS C 8201-2-1 Ann2(Icu/Ics)]100/50 |
Name |
F Series (High Breaking Capacity) |
