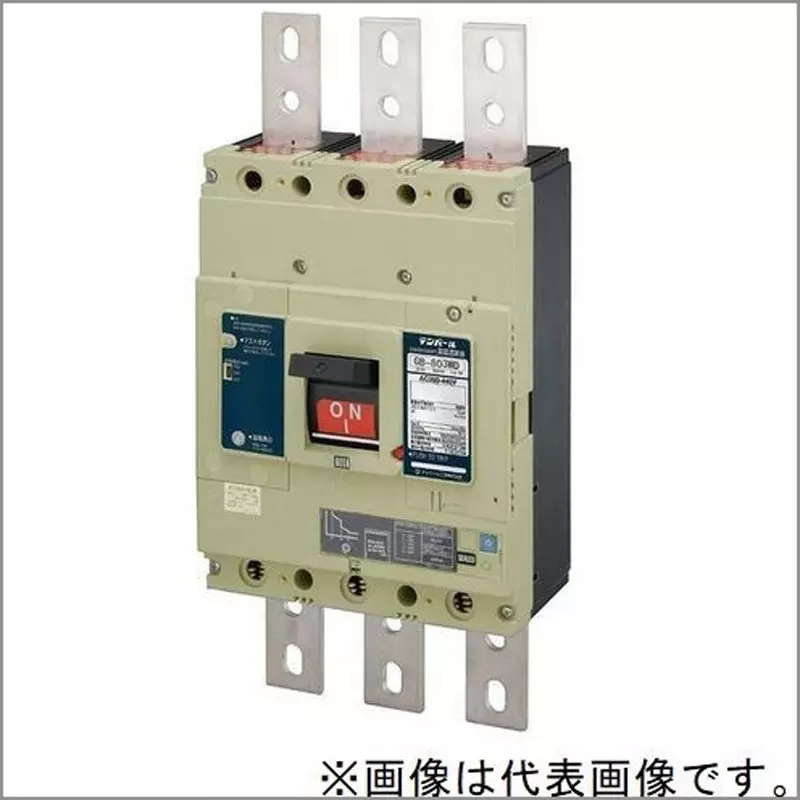

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | 803WD80W2L2 |
| Rated Breaking Capacity (kA) | ���JIS C 8201-2-2(Icu/Ics) AC240V���100/100 |
| Frame (AF) | 800 |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
803WD80W2L2 |
Rated Breaking Capacity (kA) |
���JIS C 8201-2-2(Icu/Ics) AC240V���100/100 |
Frame (AF) |
800 |
Overcurrent Tripper Type |
electronicadjustable |
Mass (Kg) |
12.9 |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100/200/500 |
Monotaro ID |
72998768 |
Rated Current (A) |
400/450/500/600/700/800 adjustable |
Suitable For |
[Optional Accessories: External Operating Handle (HA)] (Sold Separately) HA-402, [Optional Accessories: Barrier (BA)] Power Supply Side Attached (PHS-5) (The included power supply side phase barrier must be used in 400V class applications.), [Optional Accessories: Terminal Cover, Surface Mount (TMC)] (Sold Separately) TMC-5D |
Country of Origin |
Japan |
Connection Type |
Surface Type |
Rated operating voltage (AC V) |
200���440 |
Earth Leakage Indication |
Included |
Reverse Connection |
Impossible |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
[Short-term detection current (percentage of rated current)] Fixed at 1000 |
Rated Impulse Withstand Voltage (kV) |
8(Uimp) |
No. of Poles / Elements |
3P3E |
Terminal |
Bar terminal type M12 |
Name |
W Series (Adjustable Rated Current) |

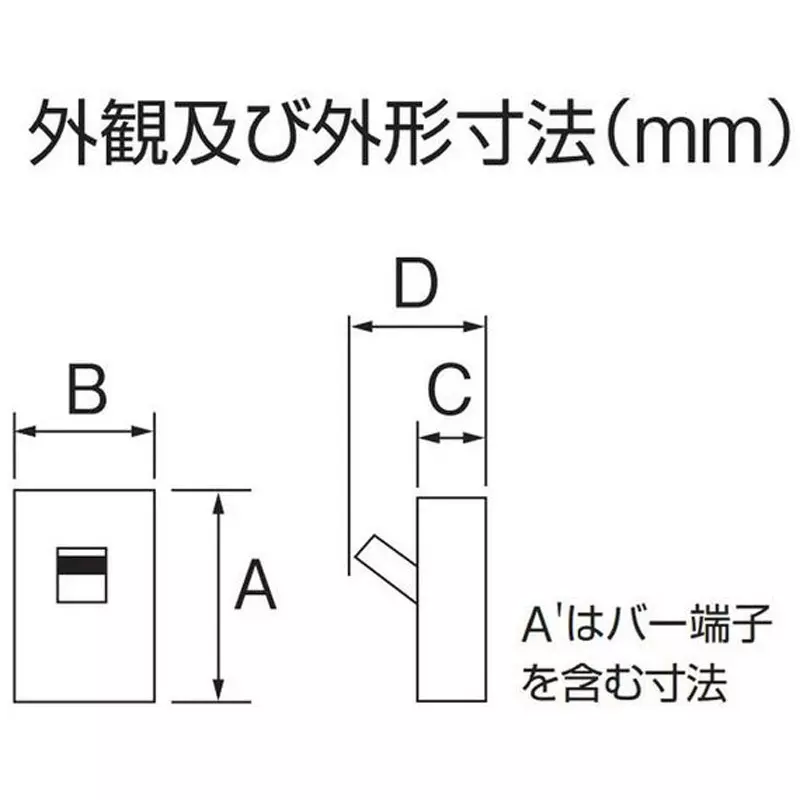

External Dimensions / Height (mm) |
103, 141 (height to the handle) |
Inertia Non-Operation Time |
0.1/0.2/0.5 sec |
