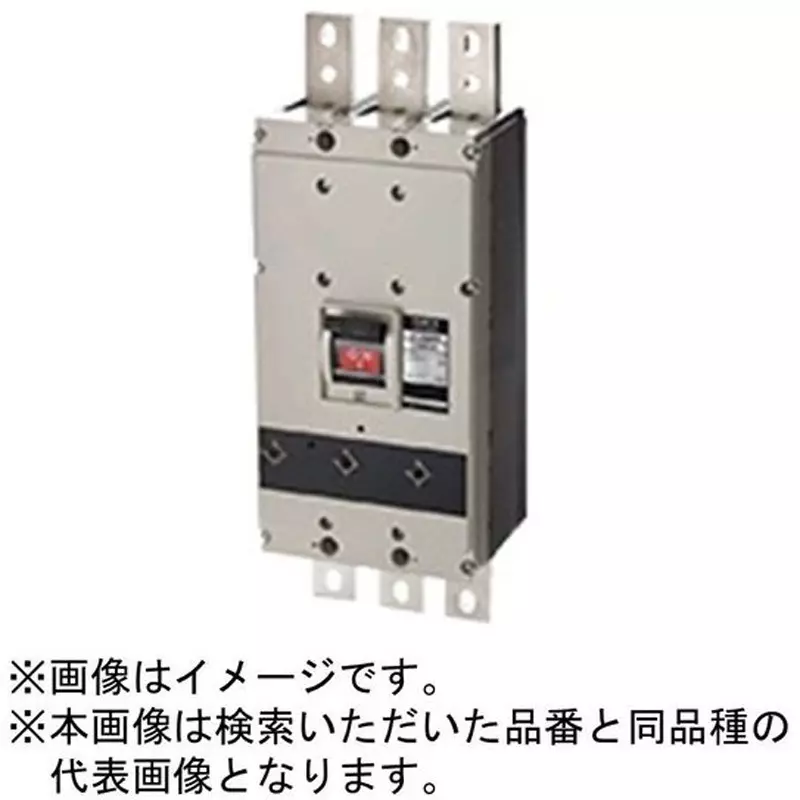

| Type of Product | Circuit Breaker |
| Model No | B1003FH10F |
| Rated Breaking Capacity (kA) | [JIS C 8201-2-1 Ann2(Icu/Ics)] AC500: 42/11, DC125V: 40/10, DC250V: 40/10 |
| Frame (AF) | 1000 |
Type of Product |
Circuit Breaker |
Model No |
B1003FH10F |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-1 Ann2(Icu/Ics)] AC500: 42/11, DC125V: 40/10, DC250V: 40/10 |
Frame (AF) |
1000 |
Overcurrent Tripper Type |
Thermal-Adjustable Electromagnetic |
Type |
B-1003FH |
Monotaro ID |
72998391 |
Rated Current (A) |
1000 |
Terminal Type |
Bar stud system |
Country of Origin |
Japan |
Rated Insulation Voltage (V) |
Ui/600 |

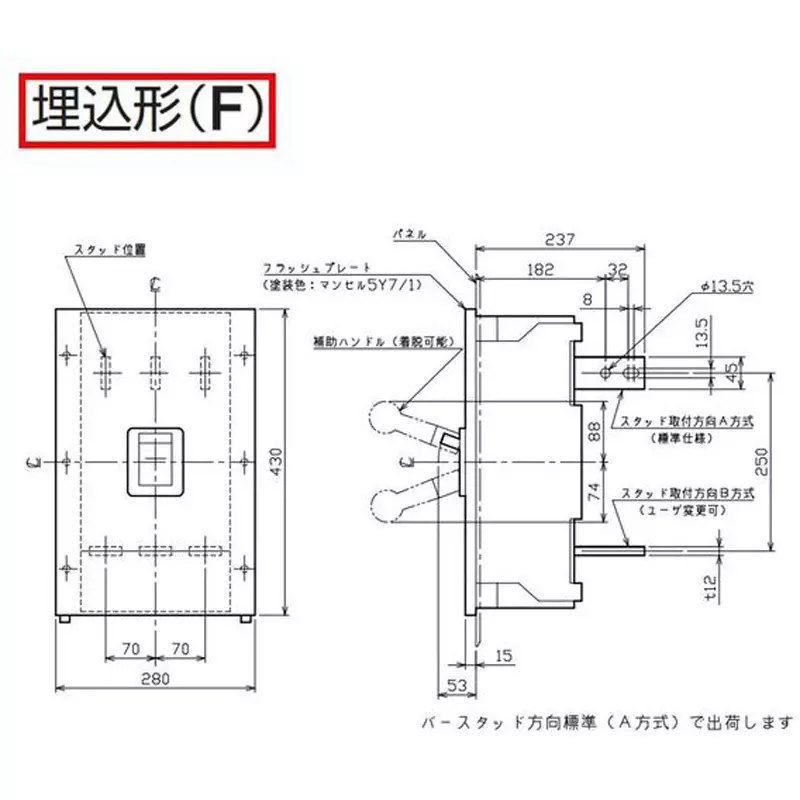

Connection Type |
Embedded type |
Rated operating voltage (AC V) |
200-415-500 |
Reverse Connection |
Possible (This is a "reverse connection possible" type as defined in JEAC8001 Document 3-5-8 of the Internal Wiring Regulations. For grid-connected applications such as solar power generation systems, connect the commercial power supply to the power source side and the power generation system side to the load side. Regardless of the application, do not connect the commercial power supply to the load side.) |
Included Components |
Wiring bolts (M12 x 40) x 12, auxiliary handle x 1 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Rated Impulse Withstand Voltage (kV) |
Uimp/ 8 |
JIS Standard |
JIS C 8201-2-1 Ann2 |
No. of Poles / Elements |
3P/3E |
Rated Breaking Capacity (kA) (100VAC) |
85/22 |
Rated Breaking Capacity (kA) (200VAC) |
[JIS C 8201-2-1 Ann2(Icu/Ics)]125/32 |
Name |
F Series (High Breaking Capacity) |
