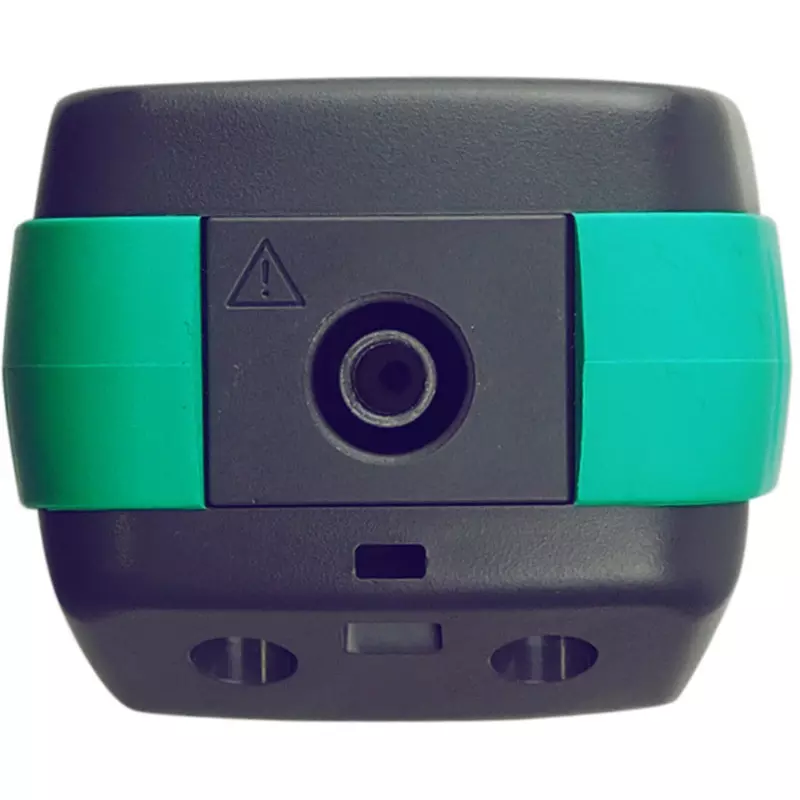

Kyoritsu Earth Resistance Meter AC: 5.0 to 300.0 V (45 to 65 Hz), DC: ± 5.0 to ± 300.0 V, Auto range: 200.0, KEW4300BT

Name: Kyoritsu Earth Resistance Meter AC: 5.0 to 300.0 V (45 to 65 Hz), DC: ± 5.0 to ± 300.0 V, Auto range: 200.0, KEW4300BT
Brand: Kyoritsu
SKU: TES.EAR.446075428
Price: 46019 INR
Availability: InStock

Visit the Kyoritsu Store

EMI starts at ₹4089/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Accuracy	Earth resistance meter (±3%rdg±5dgt), voltmeter (AC±1%rdg±4dgt/DC±1%rdg±8dgt)
Measurement Method	Simple measurement (2-pole method)
Type of Product	Earth Resistance Meter
Model No	KEW4300BT

More Kyoritsu Earth Resistance Tester products More Earth Resistance Tester products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Accuracy	Earth resistance meter (±3%rdg±5dgt), voltmeter (AC±1%rdg±4dgt/DC±1%rdg±8dgt)
Measurement Method	Simple measurement (2-pole method)
Type of Product	Earth Resistance Meter
Model No	KEW4300BT
Interface	Bluetooth(R)Ver.5.0
Measurement Range	AC: 5.0 to 300.0V (45 to 65Hz), DC: ± 5.0 to ± 300.0V, Auto range: 200.0 / 2000Ω
Power Supply	AA batteries
Standard	IEC_61010-1_CAT_III_300V_ Contamination degree 2, IEC_61010-031, IEC_61326-1, 2-2_ (EMC)
Country of Origin	Japan
Monotaro ID	26546599

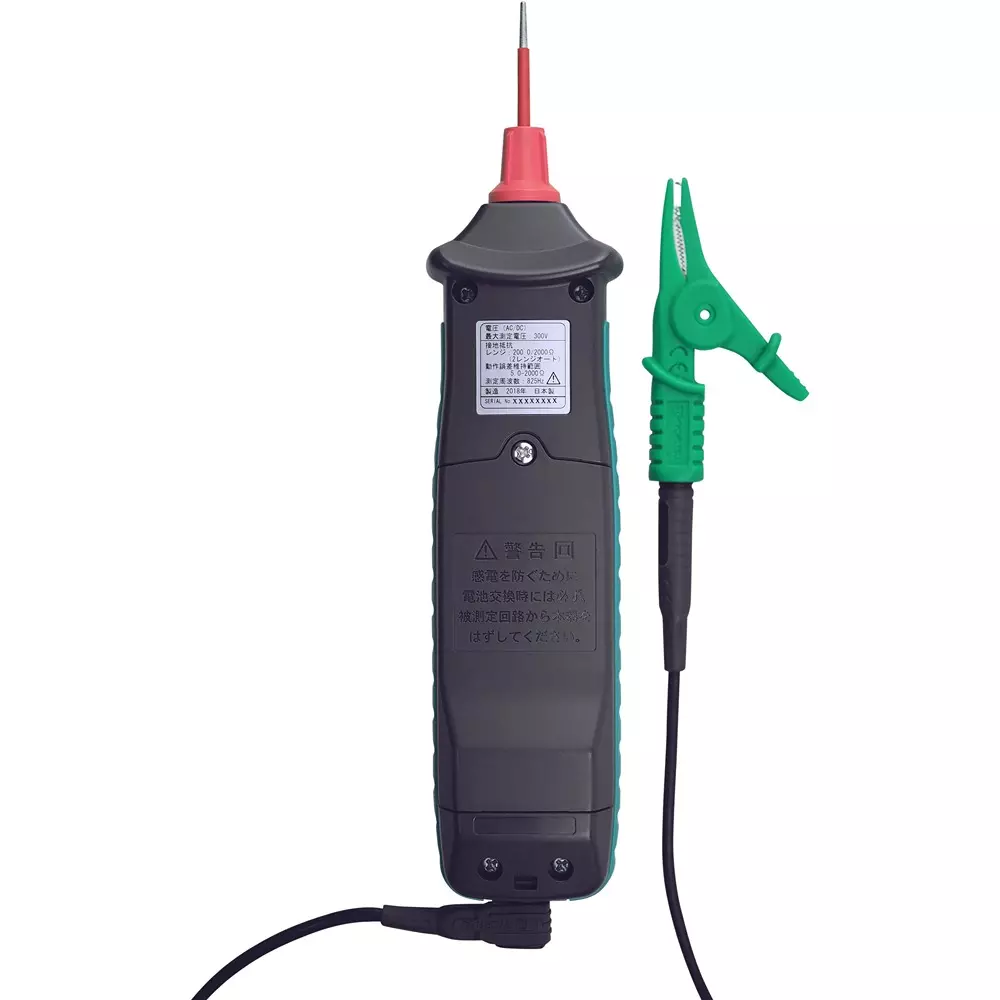

Included Components	8072 (tip metal fittings / standard), 8253 (tip metal fittings / mold), 8017 (tip metal fittings / long), 7248 (crocodile cord set), 9161 (carrying case), AA alkaline batteries LR6 x 2, instruction manual book
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.
Voltage (Dc)	±5 to 300 V
Import Country	Direct Import from Japan
Mass (g)	Approximately 220 (including batteries)

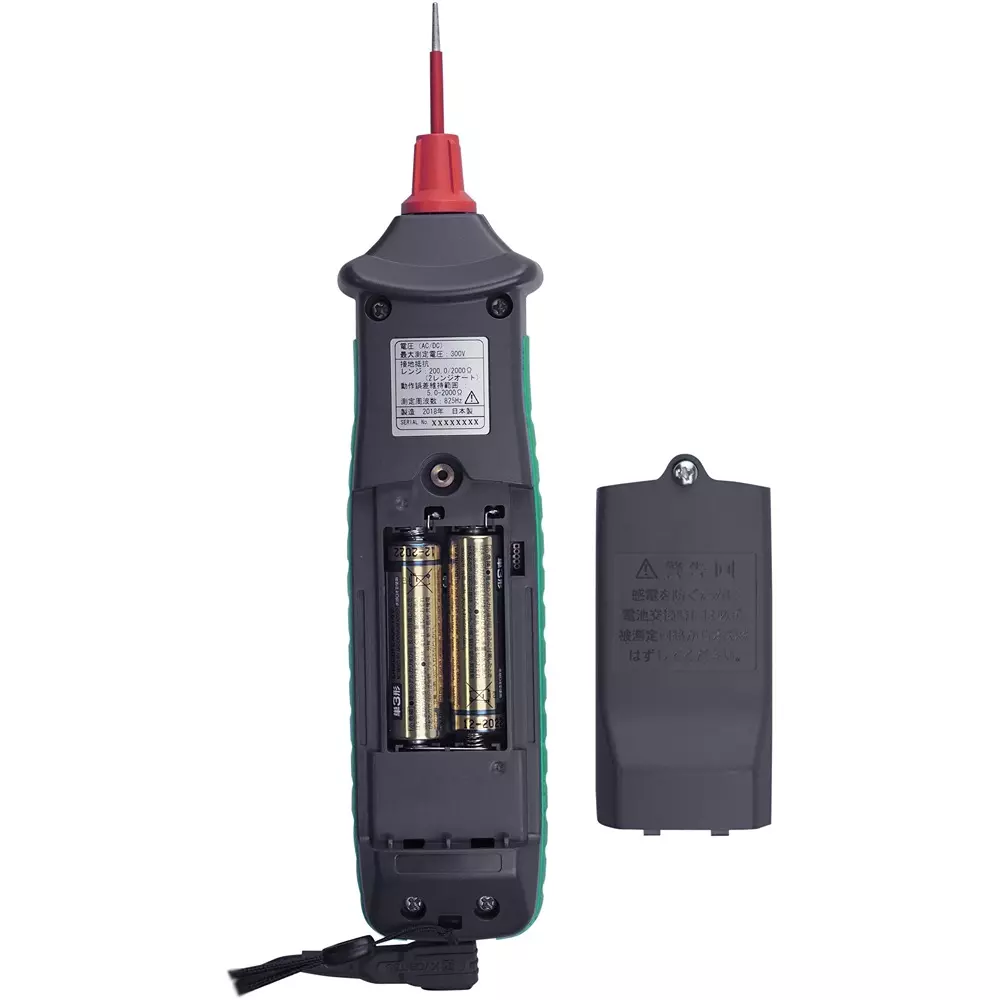

Suitable Battery	2 x AA alkaline batteries LR6 (1.5V) (Auto power off after approx. 10 minutes) (approx. 3000 measurements)
Applicable Standard	IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2, IEC 61326-1, 2-2 (EMC)
Dimensions, Length L x Width W x Depth D (mm)	232 x 51 x 42 (when tip metal fittings / standard are installed)
Length (mm)	42
Operating Temperature / Humidity Range	-10 to 50°C, 80% or less (no condensation)
Storage Temperature/Humidity Range	-20 to 60°C, 75% or less (no condensation)
AC Voltage (Volts)	5 to 300(45 to 65Hz)
Supported OS	Android (TM) 5.0 or above, iOS 10.0 or above
Bluetooth	4.0LE
