| Accuracy | ×5: Test time accuracy = 1%rdg±3dgt/Test current accuracy = +2% to +8%, ×1: Test time accuracy = 1%rdg±3dgt/Test current accuracy = +2% to +8%, ×1/2: Test time accuracy = 1%rdg±3dgt/Test current accuracy = -8% to -2%, Sensitivity current (mA): -4% to +4% for each step of test current |
| Display | 1999 (3 1/2 digits) Large LCD |
| Range | x5, x1, x1/2, Sensitivity current (mA) |
| Voltage | Voltage measurement: Measurement range (80 to 450 50/60Hz) / Accuracy (2% rdg ± 4dgt) V |
Accuracy |
×5: Test time accuracy = 1%rdg±3dgt/Test current accuracy = +2% to +8%, ×1: Test time accuracy = 1%rdg±3dgt/Test current accuracy = +2% to +8%, ×1/2: Test time accuracy = 1%rdg±3dgt/Test current accuracy = -8% to -2%, Sensitivity current (mA): -4% to +4% for each step of test current |
Display |
1999 (3 1/2 digits) Large LCD |
Range |
x5, x1, x1/2, Sensitivity current (mA) |
Voltage |
Voltage measurement: Measurement range (80 to 450 50/60Hz) / Accuracy (2% rdg ± 4dgt) V |
Type of Product |

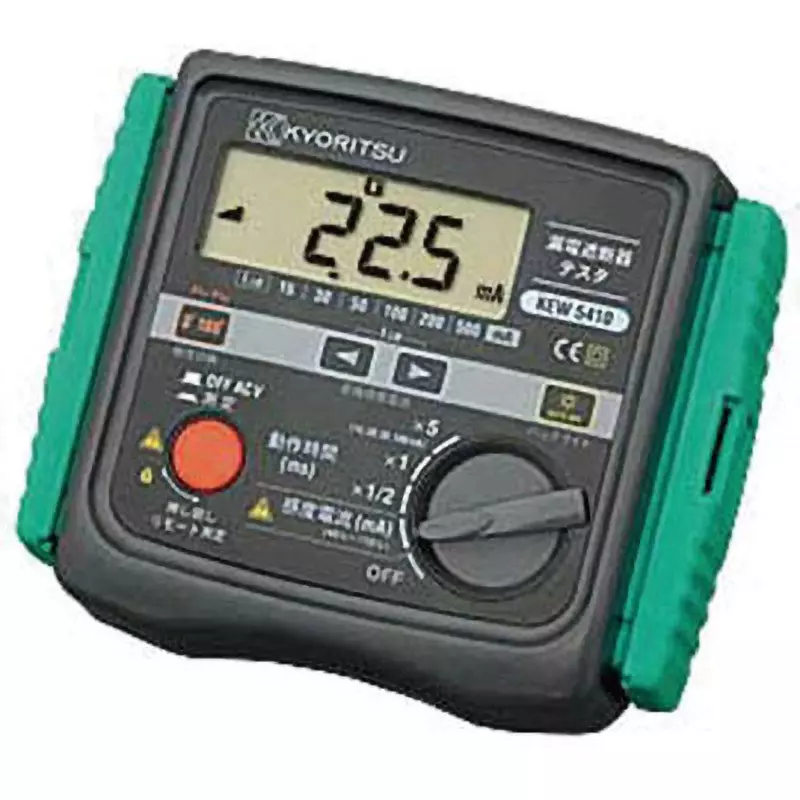

Earth Leakage Breaker Tester |
Model No |
KEW5410 |
Function |
Power save: (1) Approximately 3 minutes after a switch operation, the LCD display turns off and the unit enters the power save state (current consumption: approximately 70 μA). (2) The backlight turns off approximately 1 minute after it is turned on. |
Measurement Range |
x5: Test time 0ms to 200ms, x1: Test time 0ms to 2000ms, x1/2: Test time 0ms to 2000ms, Sensitivity current: 40% to 110% of rated sensitivity current (current increases every 5%) Test time 300ms x 15 times |
Rated Voltage |
100V±10% 200V-10% to +32% 400V±10% 50/60Hz |
Power Supply |
AA batteries R6 (1.5V) x 8 |
Country of Origin |
Japan |
Monotaro ID |
10232608 |
Included Components |
7128A (dedicated measurement cord), 7129A (dedicated alligator clip cord), 8017 (long tip metal fitting) x 2, 9121 (shoulder strap), 9147 (cord case), instruction manual, shoulder strap, cord case, AA R6 batteries x 8 |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electrical Instruments Co., Ltd. |
Insulation Resistance |
10MΩ or more / 1000V (between electric circuit and outer box) |
Import Country |
Direct Import from Japan |
Mass (g) |
Approximately 960 (including batteries) |
Suitable Battery |
AA batteries R6 (1.5V) x 8 |
Applicable Standard |
IEC 61010-1 CAT III 300V, CAT II 400V Pollution Degree 2, IEC 61010-031, IEC 61557-1, 6, IEC 60529 (IP54) |
RoHS Directive |
Correspondence |
Dimensions, Length L x Width W x Depth D (mm) |
167x186x89 |
Trusco Part No. |
479-6551 |
Length (mm) |
89 |
Dimension (WxDxH) |
186x167x89 mm |
Operating Temperature / Humidity Range |
0-40 ° C, relative humidity 85% or less (no condensation) |
Storage Temperature/Humidity Range |
-20℃ to 60℃, relative humidity 85% (no condensation) |
Withstand Voltage |
AC3700V / 1 minute (between the electric circuit and the outer box) |
Rated Voltage (V) |
100±10%, 200-10% to 32%, 400±10%(50/60Hz) |
Outer Dimensions (mm) |
186(L)x167(W)x89(D) mm |
Automatic Power Saving |
(1) About 3 minutes after the switch is operated, the LCD display disappears and the power save mode (current consumption about 70 μA) is entered. (2) The backlight will turn off after about 1 minute. |
Rated Sensitivity Current (mA) |
x5: 15/30/50/100, x1, x1/2, Sensitivity current: 15/30/50/100/200/500 |
Number of Measurements |
1200 times or more (measured at 30 second intervals in x 1/2 range 100mA) |
