Earth Resistance Range
View
View
View
View

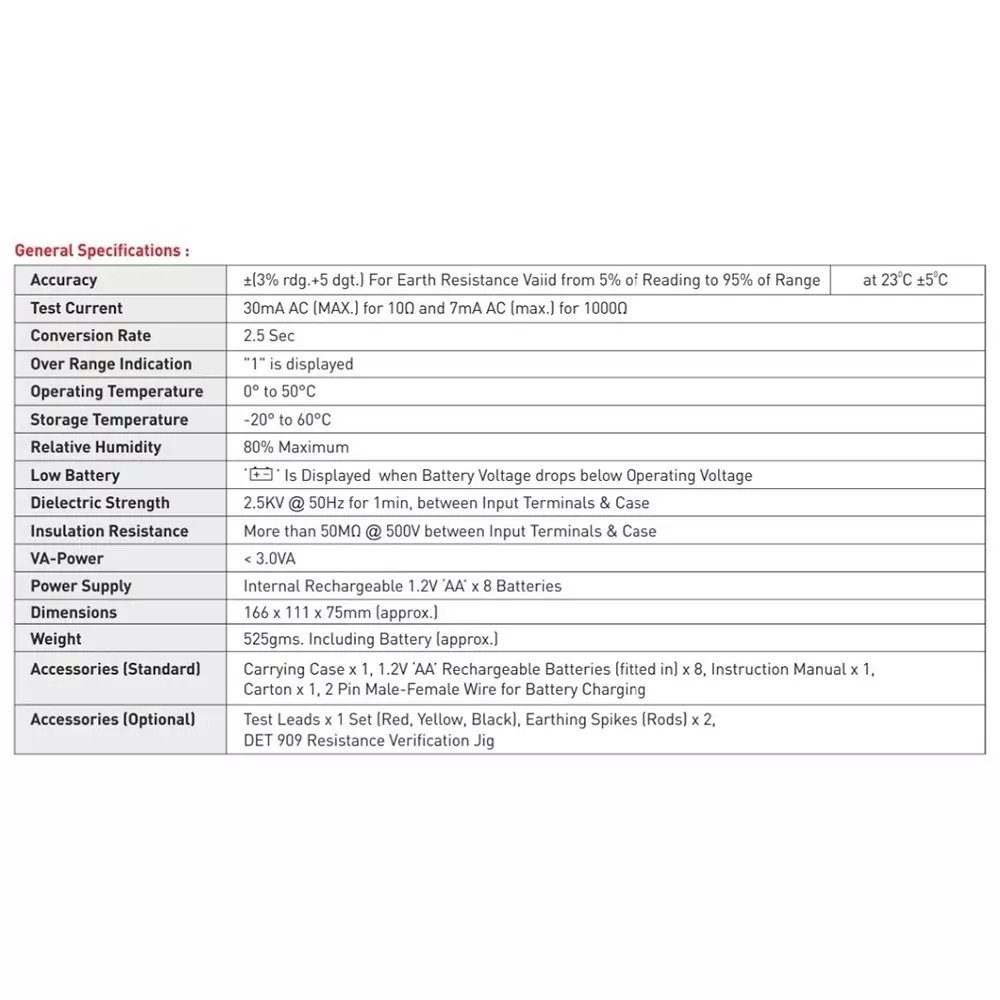

| Resolution | 0.01 Ω / 1 Ω |
| Weight | 525 g |
| Type of Product | Digital Earth Resistance Tester |
| Model No | DET 909P |
Resolution |
0.01 Ω / 1 Ω |
Weight |
525 g |
Type of Product |
Digital Earth Resistance Tester |
Model No |
DET 909P |
Function |
Data Hold |
Dimension |
166x111x75 mm |
Package Contains |
Meter x 1 Pc 1.2 V 'AA' Rechargeable Battery x 8 Pcs Instruction Manual x 1 Pc Carrying Case x 1 Pc 2 Pin Male-Female Wire for Battery Charging |
Standard |
EN61557 |
Display Type |
3½ Digit (1999 Counts) 14mm LCD Display with Backlight |
Operating Temperature |
0 to 50°C |
Country of Origin |
India |
Test Current |
30 mA AC (MAX.) for 100 and 7 mA AC (max.) for 1000 Ω |
Earth Resistance Range |
0 - 10 Ohms & 0 - 1000 Ohms |
Humidity |
80% Maximum |
Conversion Rate |
2.5 Seconds |
Storage Temperature |
-20°C to 60°C |
Name of Manufacturer/Packer/Importer |
MECO INSTRUMENTS |
Insulation Resistance |
More than 50 MΩ @ 500V between Input Terminals & Case |
Safety Standard |
EN61010-1 CAT III 1000 V |
Power Rating |
< 3.0 V |
Dielectric Strength |
2.5 kV @ 50 Hz for 1 min, between Input Terminals |
