Metravi Earth Resistance and Soil Resistivity Meter with 0.00 Ω - 30.00 kΩ Earth Resistance and ±2% rdg ±3 dgt Accuracy, PRO ERT-1605

Name: Metravi Earth Resistance and Soil Resistivity Meter with 0.00 Ω - 30.00 kΩ Earth Resistance and ±2% rdg ±3 dgt Accuracy, PRO ERT-1605
Brand: Metravi
SKU: TES.EAR.647481138
Price: 22419 INR
Availability: InStock

Visit the Metravi Store

EMI starts at ₹1992/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

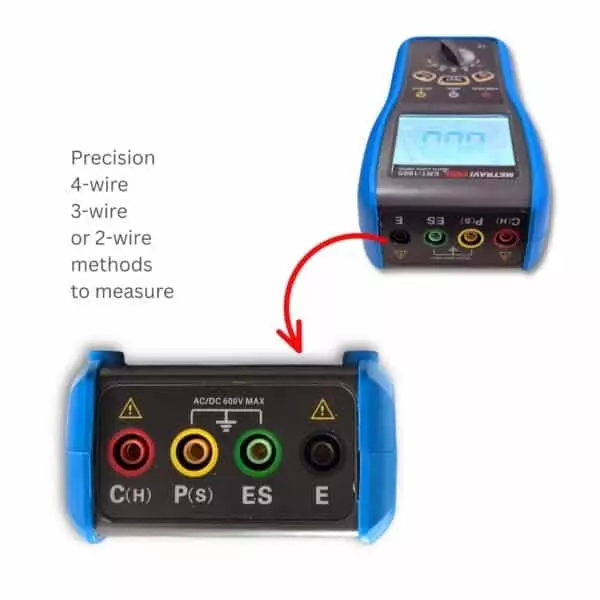

Measurement Method	Earth Resistance: Precision 4-wire method, 3-wire method, simple 2-wire method Soil Resistivity: 4-pole method (Wenner method) AC/DC Earth Voltage: RMS
Type of Product	Earth Resistance and Soil Resistivity Meter
Model No	PRO ERT-1605
Soil Resistivity	0.00 Ωm - 9000 kΩm, Accuracy: (ρ=2 πaR a:1m - 100 m, π=3.14), Resolution: 0.01 Ωm - 1 kΩm

More Metravi Earth Resistance Tester products More Earth Resistance Tester products

1 Year

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Measurement Method	Earth Resistance: Precision 4-wire method, 3-wire method, simple 2-wire method Soil Resistivity: 4-pole method (Wenner method) AC/DC Earth Voltage: RMS
Type of Product	Earth Resistance and Soil Resistivity Meter
Model No	PRO ERT-1605
Soil Resistivity	0.00 Ωm - 9000 kΩm, Accuracy: (ρ=2 πaR a:1m - 100 m, π=3.14), Resolution: 0.01 Ωm - 1 kΩm
Function	Data Hold, Data View, Interference Test
Open Circuit Test Voltage	40 V AC max

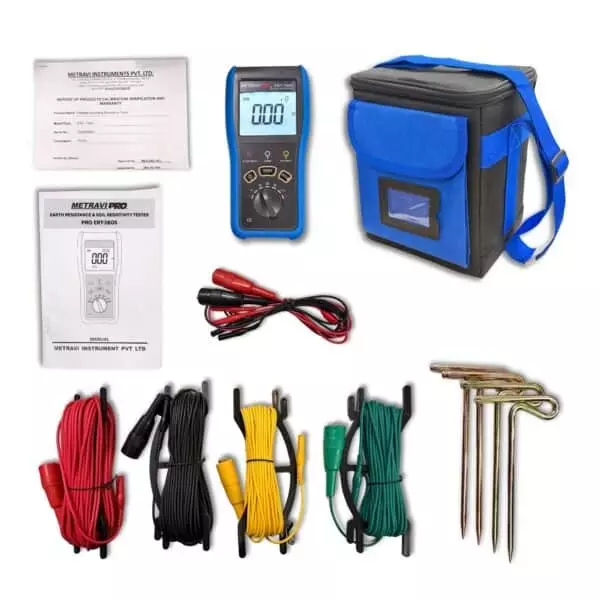

Package Contains	Earth Resistance and Soil Resistivity Meter Padded Carrying Case with Belt Spike Stakes x 4 nos Red Testing Lead 20 mts. Green Testing Lead 10 mts. Yellow Testing Lead 10 mts. Black Testing Lead 20 mts. Red & Black Test Leads 1.6 mts with Crocodile Clip User Manual
Power Supply	DC 9 V Alkaline Dry Battery (LR6 1.5 V x 6) (NOT INCLUDED)
Display Type	Backlit LCD 58x46 mm
Earth Resistance	0.00 Ω - 30.00 kΩ, Accuracy: ±2% rdg ± 3dgt, Resolution: 0.01 Ω - 10 Ω
Country of Origin	India
Test Current	>20 mA (sine wave)
Color	Blue-Grey
Sampling time	Voltage to Earth: about 3 times/second Earth Resistance / Soil Resistivity: about 15 seconds/time
Name of Manufacturer/Packer/Importer	METRAVI
Test Frequency	128 Hz / 111 Hz / 105 Hz / 94 Hz (AFC)
Safety	IEC61010-1 (CAT Ⅲ 300V, CAT IV 150V, Pollution 2) IEC61010-031, IEC61557-1 (Earth resistance) IEC61557-5 (Soil resistivity) JJG 366-2004
Indicator Type	Low Battery Indication, Overflow indication
Warranty Details	1 Year Against Manufacturing Defects
Warranty Duration	1 Year
Voltage (AC/DC)	AC/DC 0.0 - 600 V, Accuracy: ±2% rdg ± 3dgt, Resolution: 0.1 V
