Globe Electric Wire Rope Hoist 6 m Lift Height 7.5 Ton, GWRH-M3-124

Name: Globe Electric Wire Rope Hoist 6 m Lift Height 7.5 Ton, GWRH-M3-124
Brand: Globe
SKU: MAT.ELE.747523186
Price: 461460 INR
Availability: InStock

Visit the Globe Store

EMI starts at ₹41000/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Brake	Fail Safe Electro-Magnetic D.C. Disc Type in Main Hoist only.
Country of Origin	India
Lift Height	6 m
Voltage	415 V +10%

More Globe Electric Hoist products More Electric Hoist products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

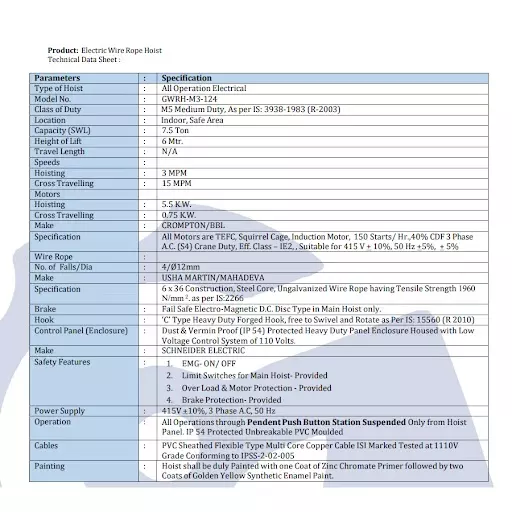

specifications

description

Brake	Fail Safe Electro-Magnetic D.C. Disc Type in Main Hoist only.
Country of Origin	India
Lift Height	6 m
Voltage	415 V +10%
Frequency	50 Hz
Phase	3 Phase A.C
Type of Product	Electric Wire Rope Hoist
Hoisting Speed	3 MPM
Model No	GWRH-M3-124
Name of Manufacturer/Packer/Importer	Globe Overseas Pvt Ltd
Hook	C’ Type Heavy Duty Forged Hook, free to Swivel and Rotate as Per IS: 15560 (R 2010)
Power Supply	415 V ± 10%, 3 Phase A.C, 50 Hz
Safety Features	EMG - ON/OFF, Limit Switches for Main Hoist - Provided, Over Load & Motor Protection - Provided, Brake Protection - Provided
Control Panel (Enclosure)	Dust & Vermin Proof (IP 54) Protected Heavy Duty Panel Enclosure Housed with Low Voltage Control System of 110 Volts
Operations	All Operations through Pendent Push Button Station Suspended Only from Hoist Panel. IP 54 Protected Unbreakable PVC Moulded
Cable	PVC Sheathed Flexible Type Multi Core Copper Cable ISI Marked Tested at 1110 V Grade Conforming to IPSS-2-02-005
Cross Travelling Speed	15 MPM
Class of Duty	M5 Medium Duty, As per IS: 3938-1983 (R-2003)
Painting	Hoist shall be duly Painted with one Coat of Zinc Chromate Primer followed by two Coats of Golden Yellow Synthetic Enamel Paint.
Capacity (SWL)	7.5 Ton
Motor Brand	CROMPTON/BBL
Wire Rope No. of Falls / Dia	4 / Ø12 mm
Hoisting Motor Power	5.5 K.W
Cross Travel Motor Power	0.75 K.W
Capacity (SWL) Kg	7500 Kg
Control Panel Brand	SCHNEIDER ELECTRIC
Exclusions	1. Material Unloading At Site, 2. C.T Brake, 3. C.T Limit Switch, 4. Lifting Sling & Dead Load
Wire Rope Brand	USHA MARTIN/MAHADEVA
Wire Rope Specification	6 x 36 Construction, Steel Core, Ungalvanized Wire Rope having Tensile Strength 1960 N/mm
Motor Specifications	All Motors are TEFC, Squirrel Cage, Induction Motor, 150 Starts/Hr., 40% CDF, 3 Phase A.C. (S4) Crane Duty, Eff. Class - IE2, Suitable for 415 V ± 10%, 50 Hz ± 5%, ± 5%
