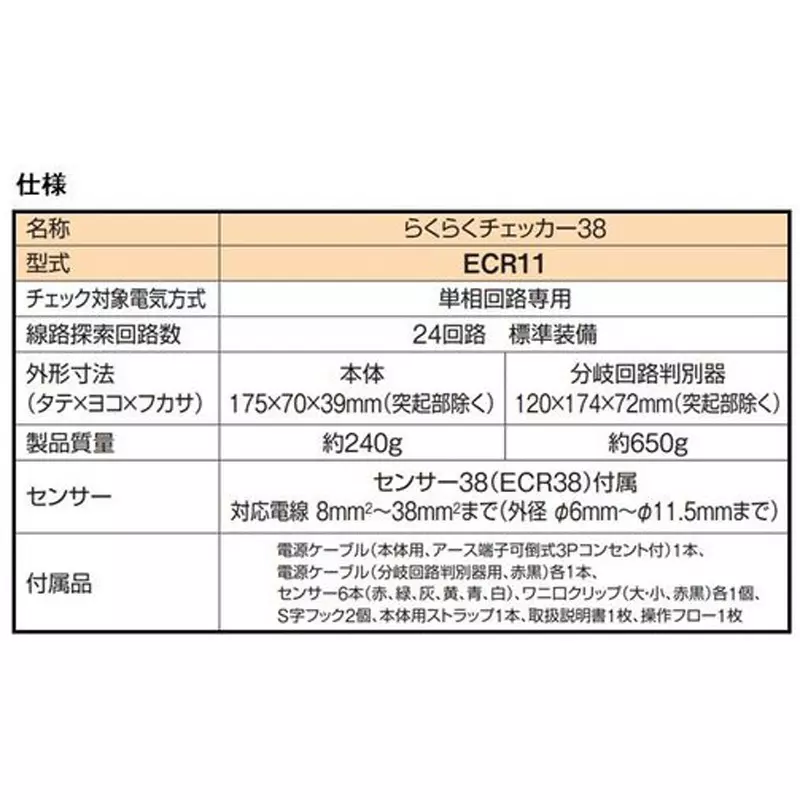

| Type of Product | Electrical Work Checker |
| Model No | ECR11 |
| Type | Alarm devices, measuring instruments |
| Country of Origin | Japan |
Type of Product |
Electrical Work Checker |
Model No |
ECR11 |
Type |
Alarm devices, measuring instruments |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
No. of Circuits |
[Track Search Circuit] 24 circuits included as standard. |
Mass (Kg) |
[Main unit] Approx. 0.24 kg, [Branch circuit discriminator] Approx. 0.65 kg |
Outer Dimensions |
175x70x39 mm (excluding protrusions), [Branch circuit discriminator] 120x174x72 mm (excluding protrusions) |
Included Components |

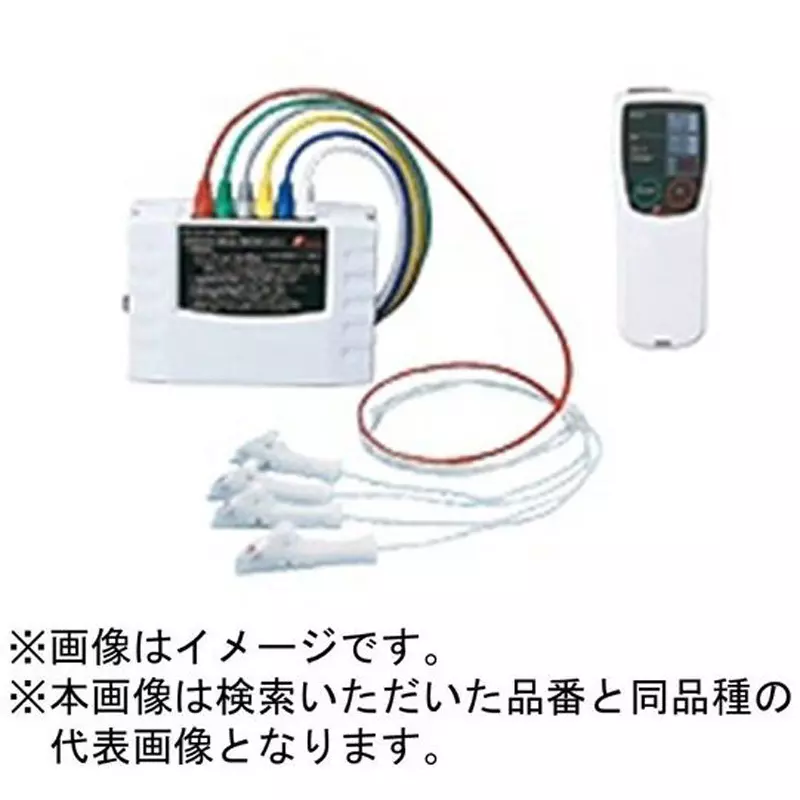

One power cable (for the main unit, with a foldable 3-prong outlet and ground terminal), one power cable each for the branch circuit discriminator (red and black), six sensors (red, green, gray, yellow, blue, white), one large and one small alligator clip each (red and black), two S-hooks, one strap for the main unit, one instruction manual, and one operation flow chart. |
Import Country |
Direct Import from Japan |
Electric system |
[Items to be checked] Single-phase circuits only |
Name |
Measuring instruments |
Monotaro ID |
73003607 |
Sensor |
Includes sensor 38 (ECR38). Compatible wire sizes: 8mm² to 38mm² (outer diameter Φ6mm to Φ11.5 mm |
