| Type of Product | Mini Clamp Wire Mount Socket |
| Model No | 37304-2206-000FL |
| Monotaro ID | 8580905 |
| Material | Body: PBT, Base cover: 66 Nylon Top cover: Polycarbonate Contact: Copper alloy |
Type of Product |
Mini Clamp Wire Mount Socket |
Model No |
37304-2206-000FL |
Monotaro ID |
8580905 |
Material |
Body: PBT, Base cover: 66 Nylon Top cover: Polycarbonate Contact: Copper alloy |

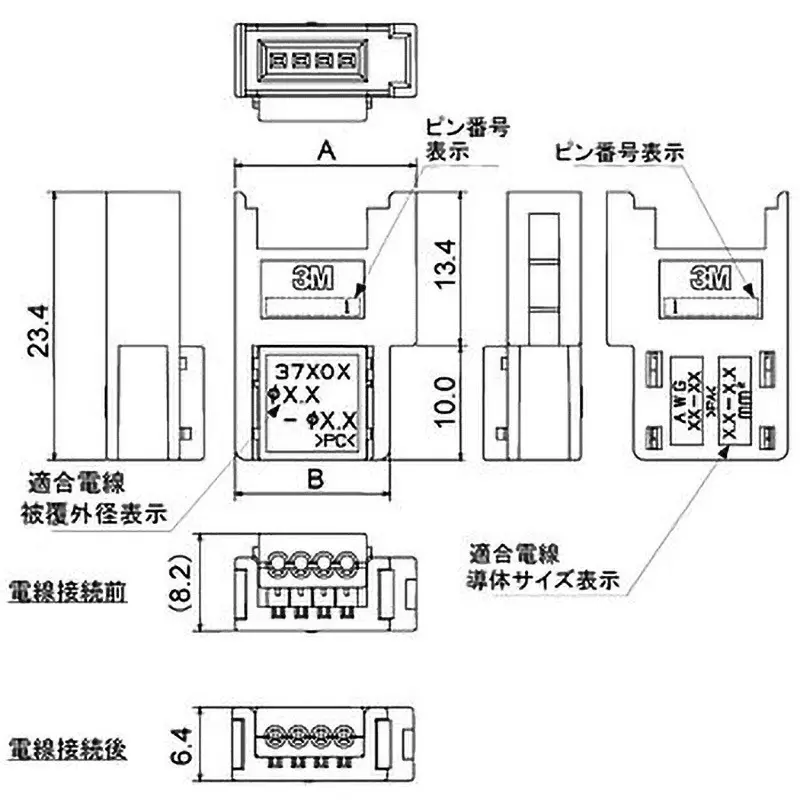

Dimension B (Φmm) |
13.5 |
No. of Pole |
4 |
Outer Diameter (Φmm) |
1.6-2.0 |
Dimension A (Φmm) |
15.8 |
Suitable Wire |
AWGNo: 20-22 Nominal cross-sectional area: 0.3 or more-0.5 mm Less than SQ Finished outer diameter: Φ1.6-2.0 mm |
Voltage |
AC / DC 32 V or less |
Operating Temperature Range |
-20 to 85℃ (when 1A is energized), -20 to 75℃ (when 2A is energized), -20 to 60℃ (when 3A is energized), * No condensation or water drops |
Current (A) (50/60Hz) |
Up to 3.0 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |
Cover Color |
Gray |
Applicable Wire Range AWG |
20-22 |
Nominal Sectional Area (mm²) |
Less than 0.3-0.5 |
Applicable Connector |
Mini clamp wire mount plug |
Suitable Cable |
0.14 to 0.50 mm² (22 to 26 AWG) Cable outer diameter including insulator Φ0.8 to 2.0 mm |
