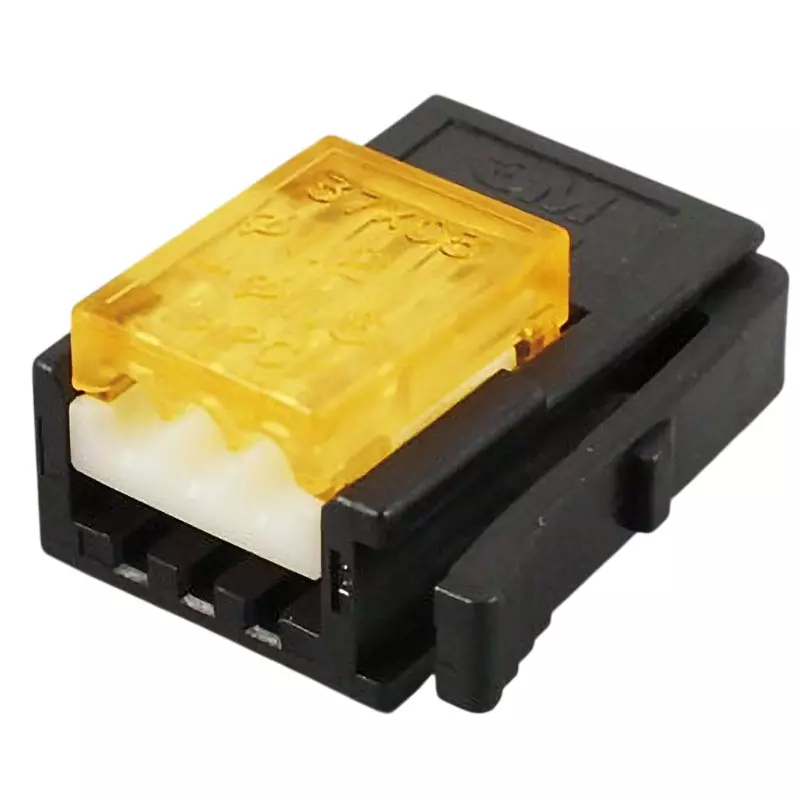

| Type of Product | Mini Clamp Wire Mount Plug |
| Model No | 37103-3163-000FL |
| Monotaro ID | 8580695 |
| Type | Square |
Type of Product |
Mini Clamp Wire Mount Plug |
Model No |
37103-3163-000FL |
Monotaro ID |
8580695 |
Type |
Square |
Material |
Body: PBT, Base cover: 66 nylon, Top cover: Polycarbonate, Contact: Copper alloy |
Rated Voltage (V) |
AC/DC 32 |
Rated Current (A) |
3 |
Shape |
Straight |

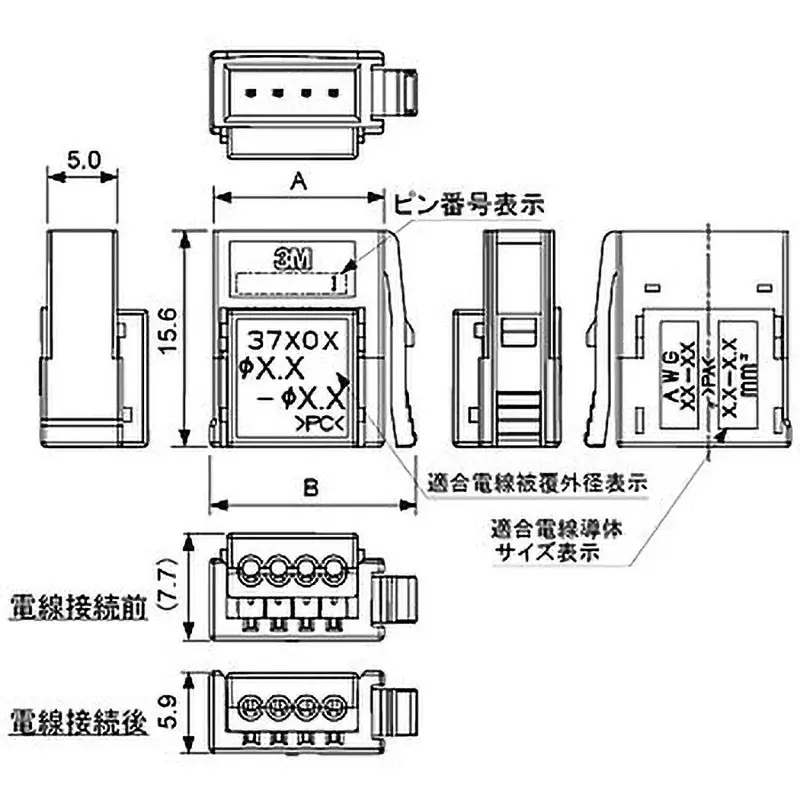

Dimension B (Φmm) |
12.9 |
No. of Pole |
3 |
Outer Diameter (Φmm) |
1.2 to 1.6 |
Dimension A (Φmm) |
10.4 |
Operating Temperature Range |
-20 to 85℃ (when 1A is energized), -20 to 75℃ (when 2A is energized), -20 to 60℃ (when 3A is energized) * No condensation or water drops |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Connection Type |
One touch |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |
Body Color |
Black |
Contact Type |
Male |
Connection Method |
Crimping |
Cover Color |
Orange |
Applicable Wire Range AWG |
24 to 26 |
Nominal Sectional Area (mm²) |
0.14 to less than 0.3 |
Applicable Connector |
Mini clamp board mount socket Mini clamp wire mount socket |
