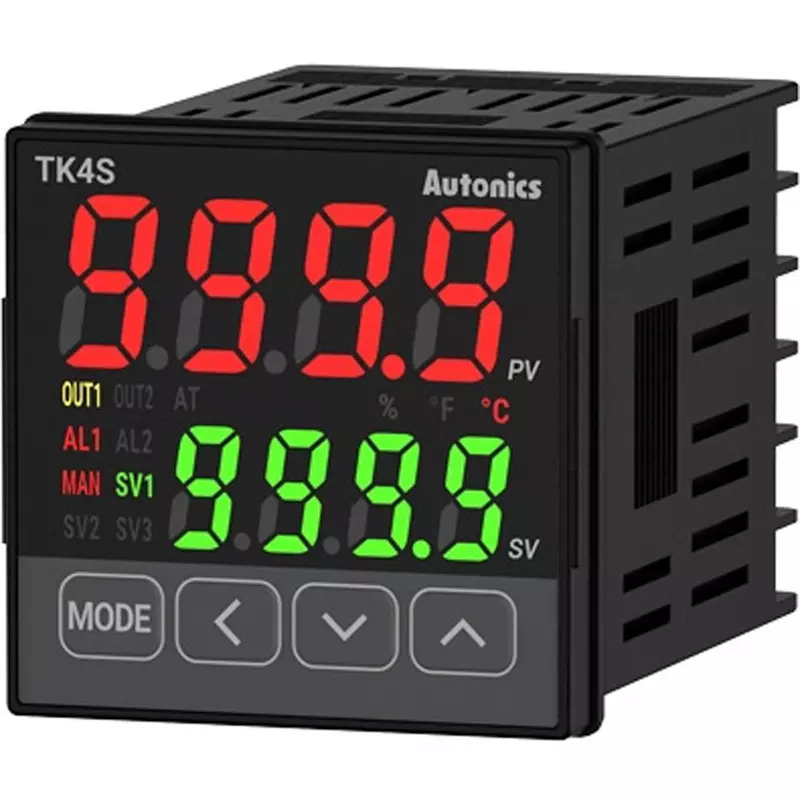

Autonics Digital Temperature Controller IP65 (front part) Protection Class ON/OFF control, P, PI, PD, PID con, TK4S-A4SN

Name: Autonics Digital Temperature Controller IP65 (front part) Protection Class ON/OFF control, P, PI, PD, PID con, TK4S-A4SN
Brand: Autonics
SKU: IND.ELE.645502891
Price: 16519 INR
Availability: InStock

Visit the Autonics Store

EMI starts at ₹1468/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Digital Temperature Controller
Model No	TK4S-A4SN
Monotaro ID	65660779
Size (mm)	DIN W48xH48

More Autonics Electrical Components products More Electrical Components products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Digital Temperature Controller
Model No	TK4S-A4SN
Monotaro ID	65660779
Size (mm)	DIN W48xH48
Thermocouple	K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
Protection Class	IP65 (front part)
Mass (g)	Approximately 150 (approximately 105)
Length (mm)	60
Insulation Type	Double insulation or reinforced insulation (symbol: times, withstand voltage between measurement input section and power supply section: 2 kV)
Alarm Output	Relay output (alarm output 1 + alarm output 2) + transmission output
Country of Origin	Japan
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Autonics
Control	ON/OFF control, P, PI, PD, PID control
Operation Ambient Temperature (°C)	-10 to 50, when saving: -20 to 60
Display Type	4-digit 7-segment LED
Power Supply Voltage (V)	100-240AC to 50/60Hz
Input	13 types of thermocouples / 6 types of platinum resistance temperature detectors / 2 types of current / 4 types of voltage can be selected
Display Accuracy	[Resistance thermometer]<br>・ Room temperature (23°C ±5°C) range: (±0.3% of PV or ±1°C, whichever is greater) ±1 digit<br> - Outside normal temperature range: (±0.5% of PV or ±2°C, whichever is greater) ±1 digit<br> [Thermocouple]<br>・ Room temperature (23°C ±5°C) range: (±0.3% of PV or ±1°C, whichever is greater) ±1 digit<br> Outside normal temperature range: (±0.5% of PV or ±2°C, whichever is greater) ±1 digit/(analog)<br>・ Room temperature (23°C ±5°C): ±0.3% FS ±1 digit ・ Outside room temperature: ±0.5°C % FS ±1 digit/(CT input) ±5% FS ±1 digit
Reset	Manual value: 0.0 to 100.0%
Specifications	Proportional band width: 0.1 to 999.9℃/°F (0.1 to 999.9%)
Sampling Cycle	50ms
Options	Input: CT, digital (DI-1)
Standard to Conform	CE, UL, RoHS
Control Cycle	0.1 to 120.0 seconds
Integration time (I)	0-9999 seconds
