| Type of Product | Capacitive Film Sensor Development Board |
| Model No | ADFCS01 |
| Monotaro ID | 62957379 |
| Warranty Duration | 6 months after purchase |
Type of Product |
Capacitive Film Sensor Development Board |
Model No |
ADFCS01 |
Monotaro ID |
62957379 |
Warranty Duration |
6 months after purchase |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |

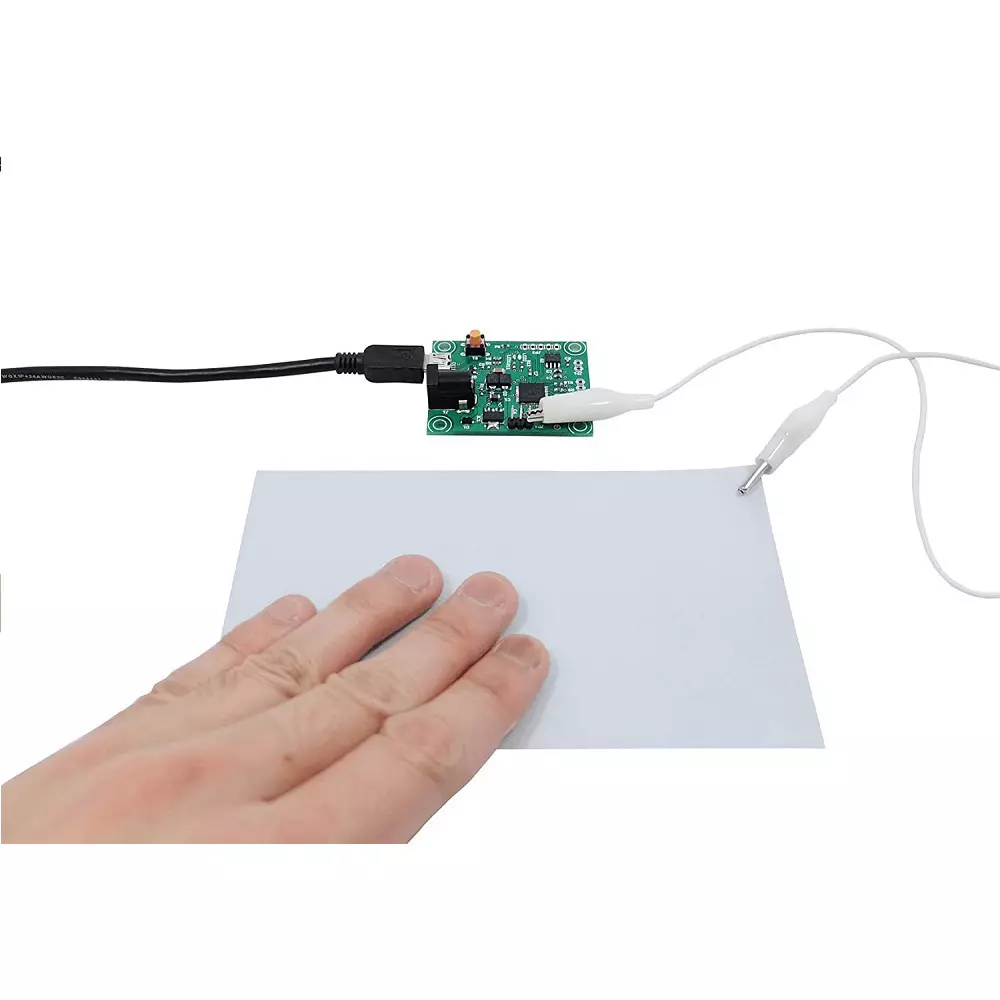

1 copy of main board 1 clip of alligator mouth 1 transparent film for sensor 1 copy of instruction manual 1 copy of warranty |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Compatible Models |
A model that has a USB port as standard and the PC manufacturer guarantees the operation of the USB port on the above compatible OS. (Some models are not supported) NEC PC-9800 and PC-9821 series are not supported. |
Output |
Digital output (0 / 5V) / UART output / LED lighting output |
Supported OS |
Japanese OS: DOS / V PC with Windows10, Windows8, Windows7, Vista |
Specifications |
Corresponding interface standard: USB2.0 (type miniB connector) USB full speed mode Operating power supply: DC jack: 5.1V ~ 12V USB: 5V Main body board dimensions: W40xD51xH12.5mm (excluding protrusions) Operating environment: Temperature: 0 to 45°C, humidity 10 to 60% (no condensation) Transparent film for sensor Dimensions: W100xD85xH0.1mm Number of sensor inputs: 1 Threshold / sensitivity adjustment: Sensitivity 4 steps Threshold 255 steps Board weight: Approximately 15g |
