| Type of Product | Introductory Board |
| Model No | ADCQ1805P |
| Monotaro ID | 75821123 |
| Operating Temperature Range | 0 to 40℃ (no condensation) |
Type of Product |
Introductory Board |
Model No |
ADCQ1805P |
Monotaro ID |
75821123 |
Operating Temperature Range |
0 to 40℃ (no condensation) |
Warranty Duration |
1 year from purchase |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Specifications |

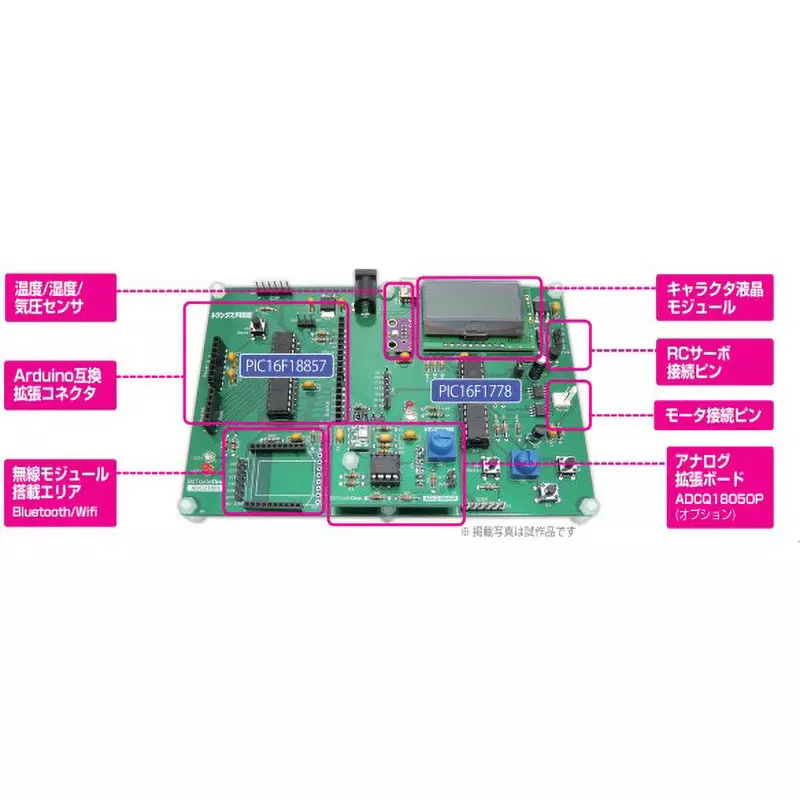

● Installed PIC: PIC16F1778-I / SP, PIC16F18857-I / SP ● Display: Character liquid crystal module (16x2 lines) ● Input / output: AUDUINO compatible expansion connectorx1, switch inputx4 Semi-fixed volume x, RC servox1, motorx1, WIFI modulex1, BLUETOOTH modulex1, analog expansion boardx1 ● Power supply: USB mini B or AC adapter 5V 1A or more, outer diameter 5.5mm inner diameter 2.1mm center plus (cannot be used at the same time) ● Size: W150xH15xD100mm (excluding protrusions) ● Weight: Approximately 87g (board only) ● Accessories: Screw set, 1 warranty |
