| Type of Product | Pulse Counter |
| Model No | CNT-723-CAN |
| Monotaro ID | 66273125 |
| Input Power | AC 100-240 V |
Type of Product |
Pulse Counter |
Model No |
CNT-723-CAN |
Monotaro ID |
66273125 |
Input Power |
AC 100-240 V |
Input Method |
Single phase, A/B phase |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Atmosphere |
Surrounding area: No corrosive gases |
Name of Manufacturer/Packer/Importer |
COCO RESEARCH |
Storage Temperature/Humidity Range |
-10℃ to +60℃/85%RH or less (no condensation) |
Power Consumption (VA) |
30VA or less |
Operating Temperature / Humidity Range |
0℃ - +40℃/85%RH or less (no condensation) |

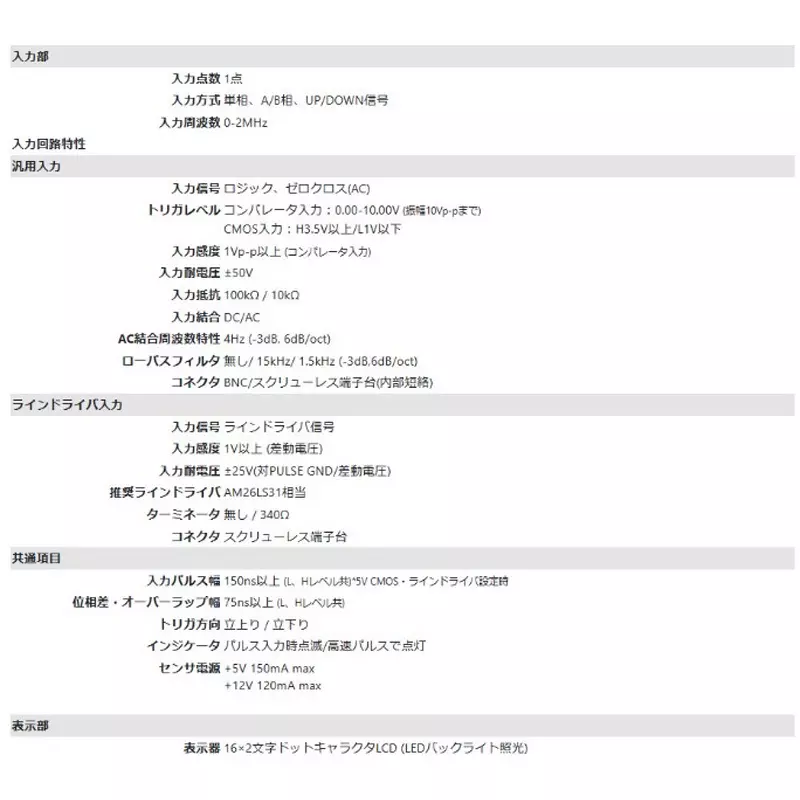

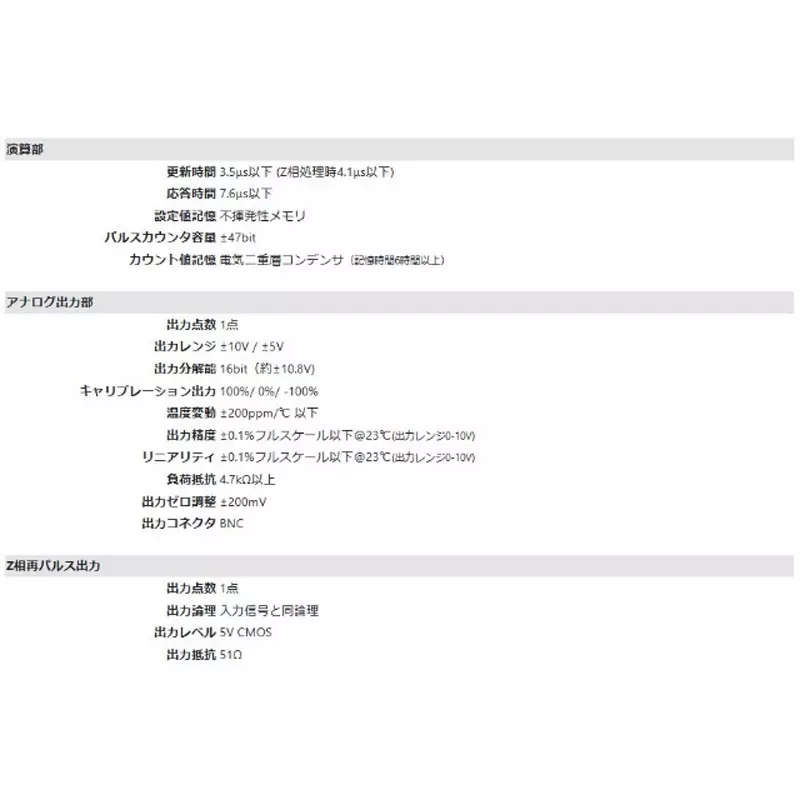

Specifications |
●CAN communication/FORMAT, ID length: Little endian / Big endian, 11 bit / 29 bit●CAN communication/Terminator resistor: None●CAN communication/Numeric format: Signed integer 16 bit / 32 bit / 48 bit●CAN communication/Measurement value output interval: 0-100 ms (No output at 0 ms setting)●CAN communication/Communication data, Connector: Measurement value output/Reset command reception, Sub-9 pin male x 1●RS-232C communication/Flow control, Communication cord, Connector, Communication data: RTS / CTS, ASCII, D-sub 9 pin male (Use a cross cable to connect to the host.) Setting changes and count value reading. ●RS-232C communication/Communication method: Asynchronous. ●RS-232C communication/Transmission format: Start bit 1 bit, stop bit 1 bit, data length 8 bits, no parity bit. ●RS-232C communication/Transmission speed: 9.6k/19.2k/38.4k/57.6k/115.2kbps. ●Isolation: Sensor power supply, signal input/analog output, digital output/power input. ●Analog: 3.5μs to ±5/±10V. |
Communication speed |
CAN communication: 1M/ 500k/ 250k/ 125k/ 100k/ 50k/ 20k/ 10kbps |
