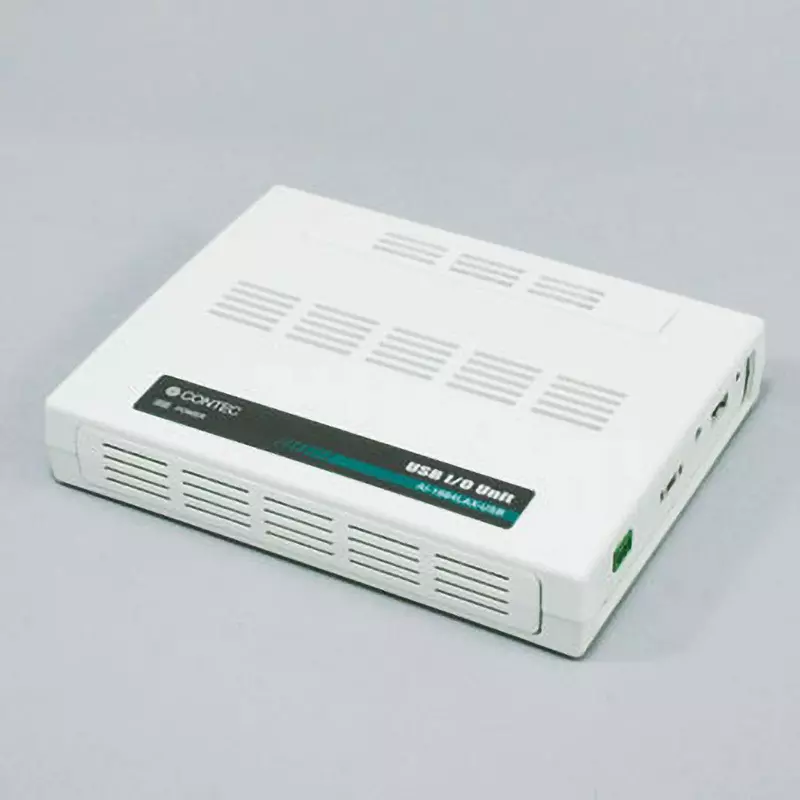

| Type of Product | Analog Input Unit |
| Model No | AI-1664LAX-USB |
| Monotaro ID | 11690534 |
| Mass (g) | 400 |
Type of Product |
Analog Input Unit |
Model No |
AI-1664LAX-USB |
Monotaro ID |
11690534 |
Mass (g) |
400 |
Current Consumption (mA) |
670(Max..)(DC 5 V) |
Operating Humidity Range |
10-90 %RH (however, no condensation) |
Input Impedance |
1x10 ⁶ Ω or more |
Operating Temperature Range |
0 to 50℃ |
Cable |
USB cable |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Contec Co., Ltd. |
Input Voltage (V) |
±20 |
Resolution |
16-bit |
No. of Channels |
1ch |
Input Range |
Bipolar ± 10V |
Cable Length (m) |
1.8 |
Specifications |
USB Specification 2.0, 1.1 compliant |
Suitable Connector |
68-pin 0.8mm pitch connector, HDRA-E68W1LFDT-SL (manufactured by Honda Tsushin Kogyo) equivalent |
Number of Input Channels |
64ch (single end), 32ch (differential) |
Dimensions, Width W x Length L x Height H (mm) |
180x140x34 (excluding protrusions) |
Transfer Speed |
12Mbps (full speed), 480Mbps (high speed) |
