| Type of Product | USB Extension Unit USB Extender |
| Model No | DUEX-UNI3 |
| Monotaro ID | 72364076 |

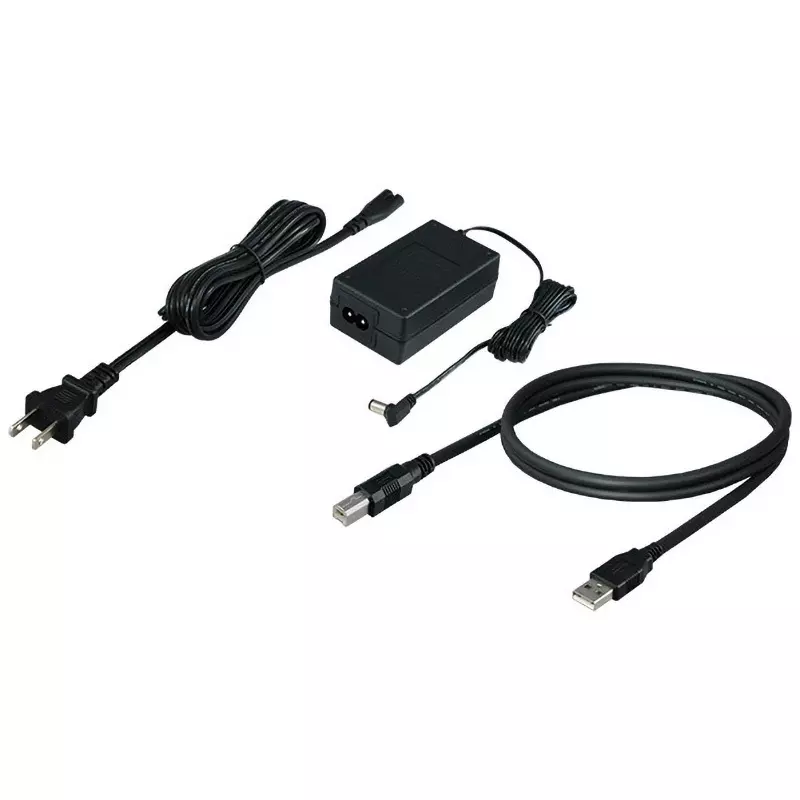

| Mass (g) | Local unit (LEX): 64, Remote unit (REX): 71, Power cable: 90, AC adapter: 132, USB cable: 94 |
Type of Product |
USB Extension Unit USB Extender |
Model No |
DUEX-UNI3 |
Monotaro ID |
72364076 |
Mass (g) |
Local unit (LEX): 64, Remote unit (REX): 71, Power cable: 90, AC adapter: 132, USB cable: 94 |
Rated Power Consumption (W) |
Local unit (LEX): 1, remote unit (REX): 2 |
Power Supply Voltage |
AC adapter / input: AC100-240 V / output: DC24 V, 1 A |
Current (A) (50/60Hz) |
[Output USB bus current] Remote unit (REX): 1 |
Storage Temperature |
-20 to 70 ℃ |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Dia Trend Co., Ltd. |
Cable Length (m) |
USB cable: 1.8, power cable: 1.7 |
USB Type |
Compliant with USB Specification Rev2.0 / 1.1 |
Supported OS |
Windows / Mac OS / Linux, etc. |
Operating Temperature (c) |
0 to 50 ℃ |
Outer Dimensions |
Local unit (LEX): 57.5x87x30.4 mm, Remote unit (REX): 57.5x87x30.4 mm, AC adapter: 50x88.5x34 (cable part: 1.8m) mm |
Communication speed |
1.5 Mbps/12 Mbps/480 Mbps |
Storage Humidity (%) |
10 to 90% RH, non-condensing |
Maximum Extension from Centre |
100 m |
Operating Humidity (% RH) |
20 to 80% RH, no condensation |
Connector Specifications |
Local unit (LEX): RJ-45 (female) / USB B-Type (female), Remote unit (REX): RJ-45 (female) / USB A-Type (female) |
