Ships within 19 days
View
View
View
View
| Type of Product | I/O hopper |
| Model No | NE-HP001A |
| Monotaro ID | 51636700 |
| Applicable Standard | RoHS2, IP4X equivalent |
Type of Product |
I/O hopper |
Model No |
NE-HP001A |
Monotaro ID |
51636700 |
Applicable Standard |
RoHS2, IP4X equivalent |
Mass (g) |
80 |
Input Power |
Power terminal: DC 4.5 to 26.4, USB port: DC 4.5 to 5.5 V |

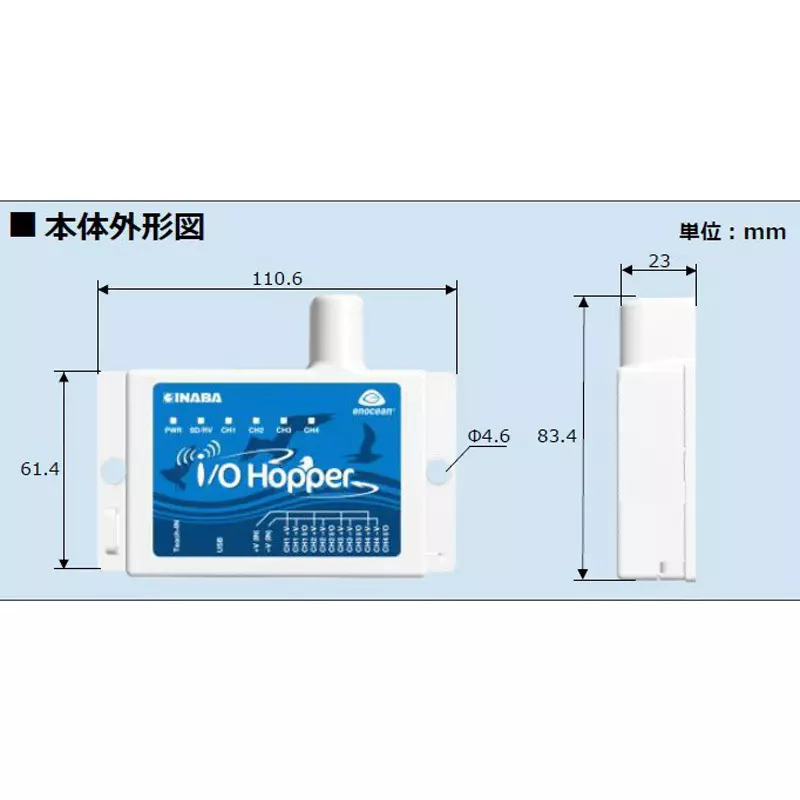

Dimension (mm) |
110.6x83.4x23 (including antenna) |
Rated power (W) |
2.4W/5V 10W/24V: Receiver/All channels on/External 400mA supply |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Connection Type |
Push-in terminal pitch: 2.54 mm |
Compatible Cable |
Single wire, twisted wire 0.5 to 1.0 mm² (AWG26 to AWG18) |
Name of Manufacturer/Packer/Importer |
Inaba Electric Industry Co., Ltd. |
Power Consumption |
0.4W/5V 1.6W/24V: Transmitter/all channels on/no external supply, 0.4W/5V 0.6W/24V: receiver/all channels on/no external supply, 0.3W/5V 0.4W/24V: relay machine |
Power Supply |
+V power output: 4 channels total 400mA (maximum) |
Wireless |
Communication method: Simplex method, Communication frequency: 928.35MHz, Modulation method: FSK, Communication speed: Maximum 125kbps, Transmission power: 1mW (0dBm), Communication distance: Approximately 30m line of sight |
USB |
Shape: Type-C connector, cable length: max. 3m |
Wireless Standard |
EnOcean (adopted module: TCM515J) |
LED |
(Red/Orange) 2-color LED: 2 (Green) LED: 4 |
Antenna |
Helical antenna |
Specifications |
Number of relays: 1 time (only 1 time supported due to Japanese Radio Law regulations) |
Various Certifications |
Radio Law Certification: 001-X00495 |
Main Material |
ABS |
Mounting Screw Hole |
Φ4.6 (compatible screw: M4)x2 locations or magnet |
