Ships within 25 days
View
View
View
View

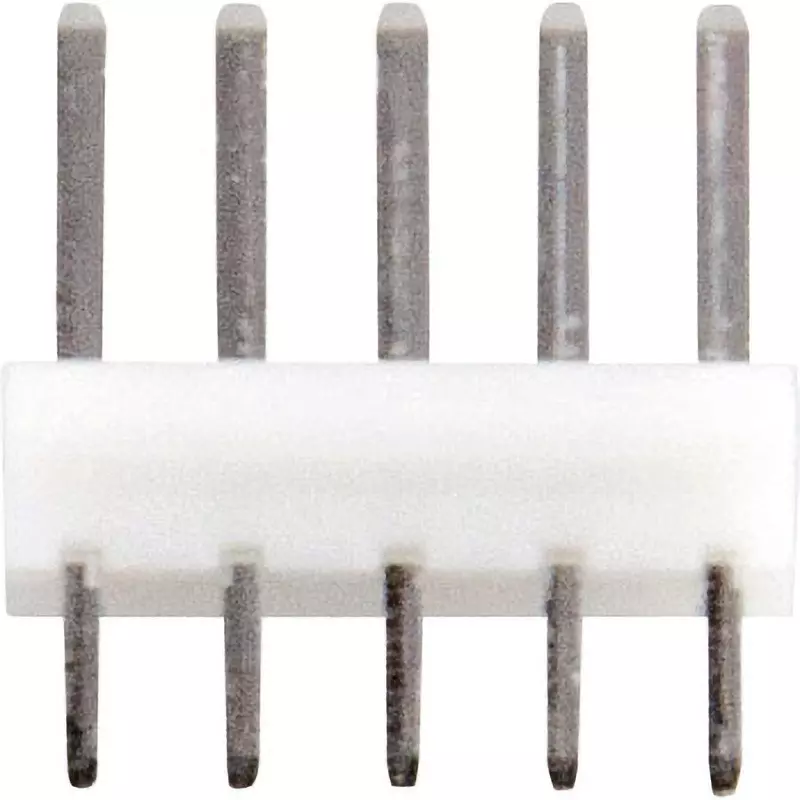

| Type of Product | Post with Base |
| Model No | B5P-SHF-1AA(LF)(SN) |
| Monotaro ID | 89631184 |
| Color | Natural |
Type of Product |
Post with Base |
Model No |
B5P-SHF-1AA(LF)(SN) |
Monotaro ID |
89631184 |
Color |
Natural |
Type |
Top type |
Material |
Brass, 66 nylon |
Standard |
Recognised E 60389, Certified LR 20812, R75086 |
Rated Voltage (V) |
250 V AC/DC |
Rated Current (A) |
3 AC / DC (when using AWG # 22) |
No. of Pole |
5 |
Mass (g) |
50 |
Dimension A (Φmm) |
10 |
Withstand Voltage |
AC 1500V, 1 minute |
Operating Temperature Range |
-25 to +85℃ (including temperature rise) |
Surface Treatment |
Copper-undercoated tin plating (reflow treatment) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Solderless Terminals Mfg. Co., Ltd. |
Pack of |
100 Pcs |
Trusco Part No. |
436-1610 |
Insulation Resistance (MOhm) |
500 or more |
Contact Resistance (ohm) |
Initial: 15 mΩ or less, after environmental test: 20 mΩ or less |
Specifications |
No clinch, RoHS compliant |
