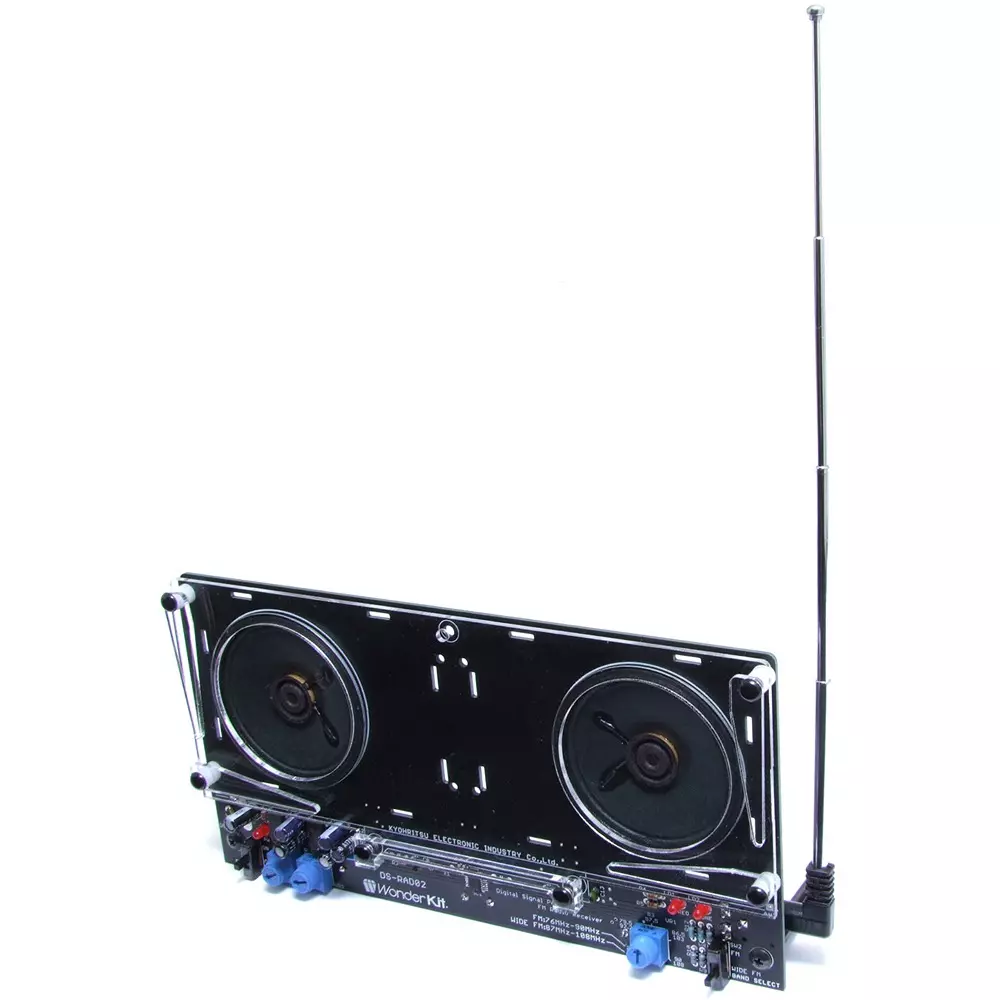

| Type of Product | DSP FM Radio Kit |
| Model No | DS-RAD02 |
| Monotaro ID | 63322894 |

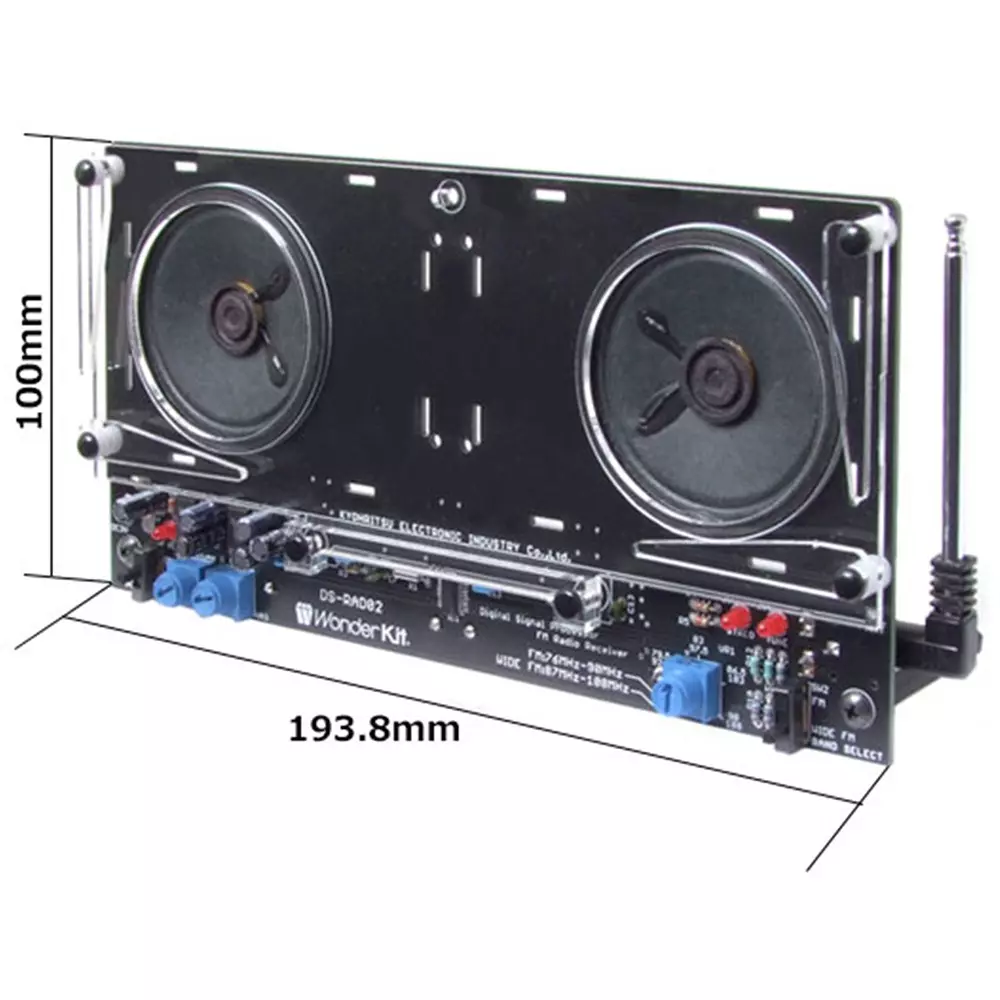

| Dimension (mm) | Board: 193.8x100.0x24.0 / Photo installation space: 181x75 (thickness 2.5) |
Type of Product |
DSP FM Radio Kit |
Model No |
DS-RAD02 |
Monotaro ID |
63322894 |
Dimension (mm) |
Board: 193.8x100.0x24.0 / Photo installation space: 181x75 (thickness 2.5) |
Operating current (mA) |
Approximately 40-400 (changes depending on the volume position of the speaker output) |
Receiving Frequency |
FM mode: 76.0-90.0 MHz ・ Wide FM mode: 87.0-108 MHz |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electronics Industry Co., Ltd. |
Power Supply Voltage (V) |
Standard DC3 (2.2 to 3.6V possible) ・ AAA battery boxx2: Rechargeable battery (nickel hydrogen + DC1.2) can be used ・ DC jack: Φ2.1mm + Center plus: AC adapter is DC3V current, 1A or more Things |
Output |
Speaker + 8Ω (maximum 0.2W) + 2 systems + (monaural / stereo + automatic switching + / volume control + left and right independent) |
Antenna |
Pattern antenna on the board and rod antenna (removable) |
Specifications |
IC chip: Silicon + Labs "Si4831" |
