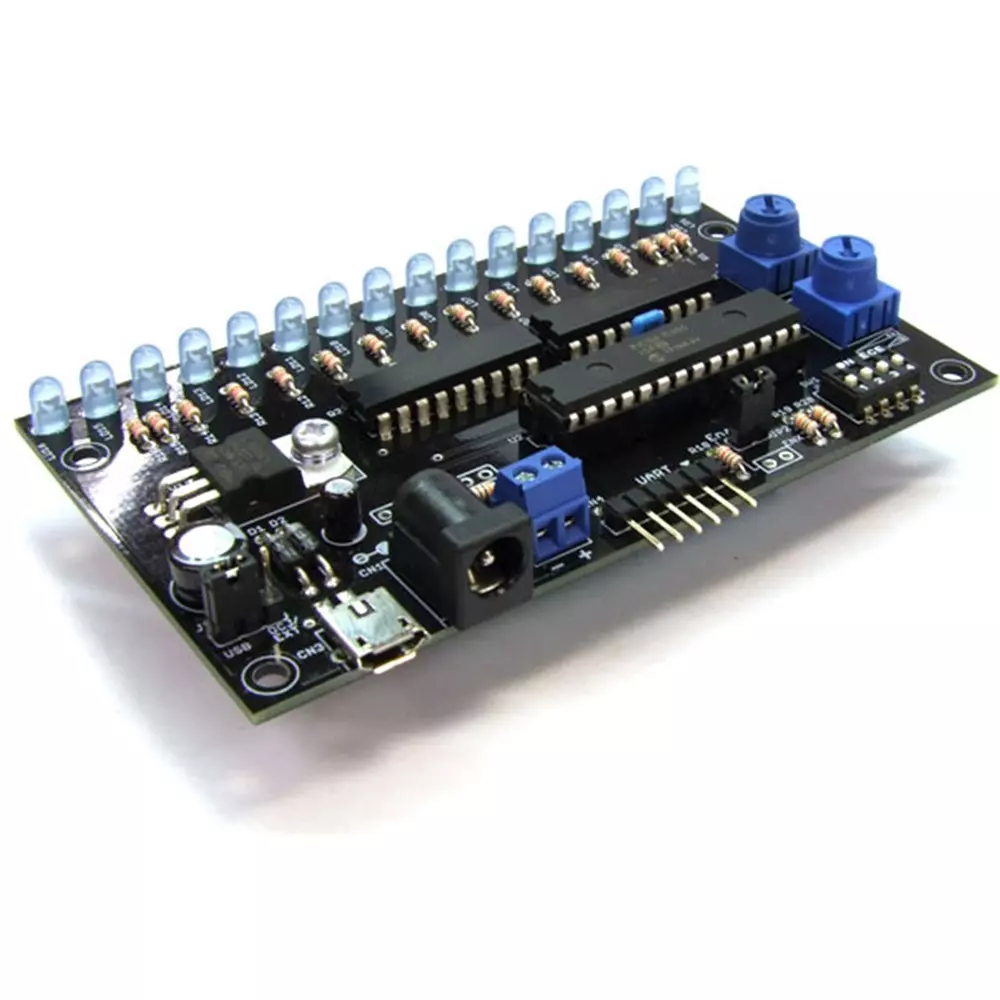

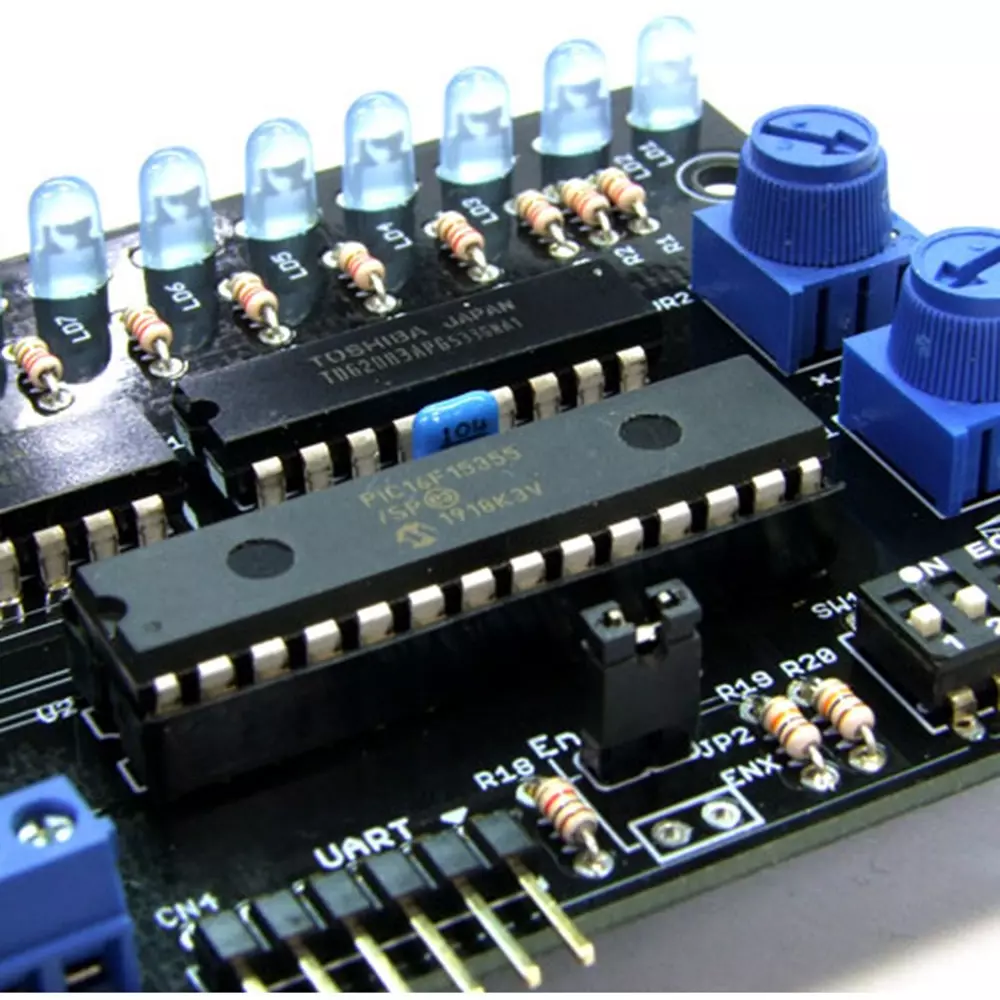

| Type of Product | LED Flasher |
| Model No | LED-16LFB |
| Monotaro ID | 65096983 |
| Current Consumption (mA) | Maximum during operation 160 (all lighting / maximum brightness) |
Type of Product |
LED Flasher |
Model No |
LED-16LFB |
Monotaro ID |
65096983 |
Current Consumption (mA) |
Maximum during operation 160 (all lighting / maximum brightness) |
Terminal Type |
[Control] Lighting control (JP2 / ENX): Overall lighting Enabled ⇔ Disabled / Serial numerical input (CN4) Terminal shape: 6-pin connector, Voltage level: 5V, Communication setting: 9600bps, Data bit 8 / No parity / Stop Bit 1, Numeric input format: Binary, Octal, Decimal, Hexadecimal |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electronics Industry Co., Ltd. |

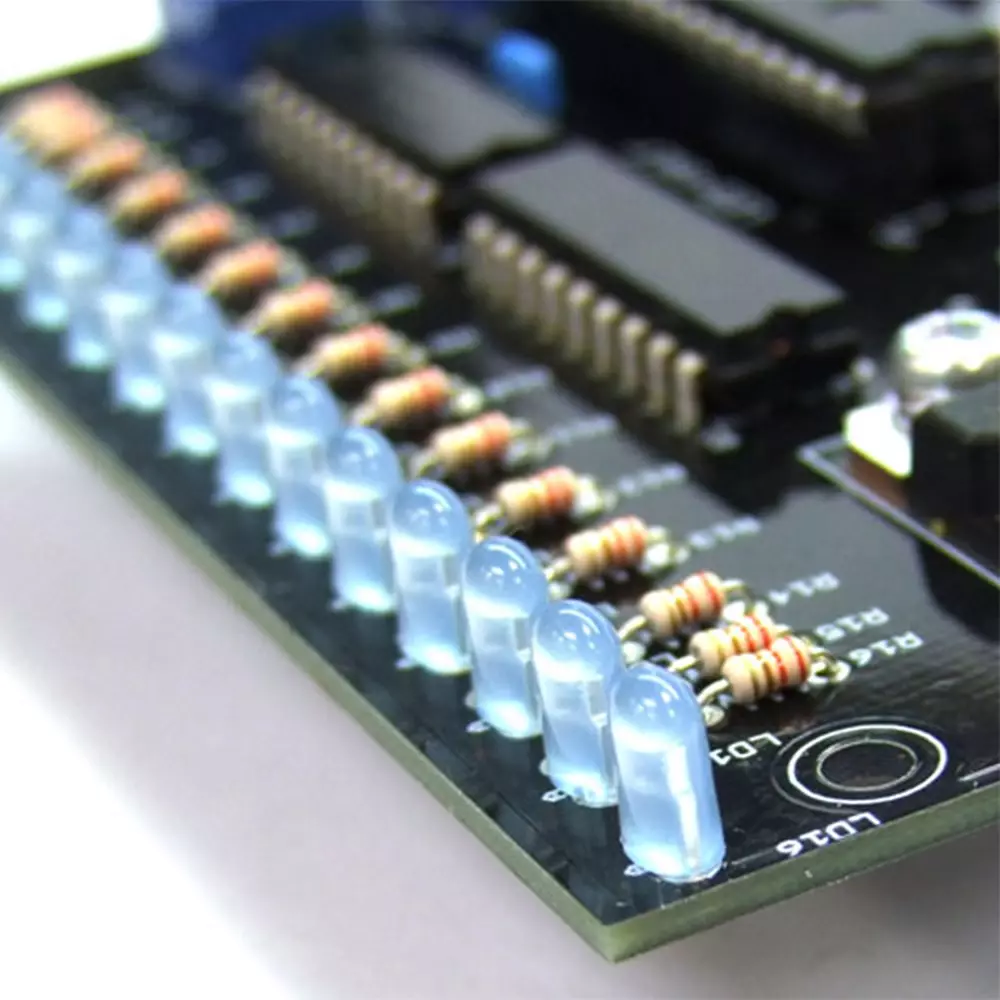

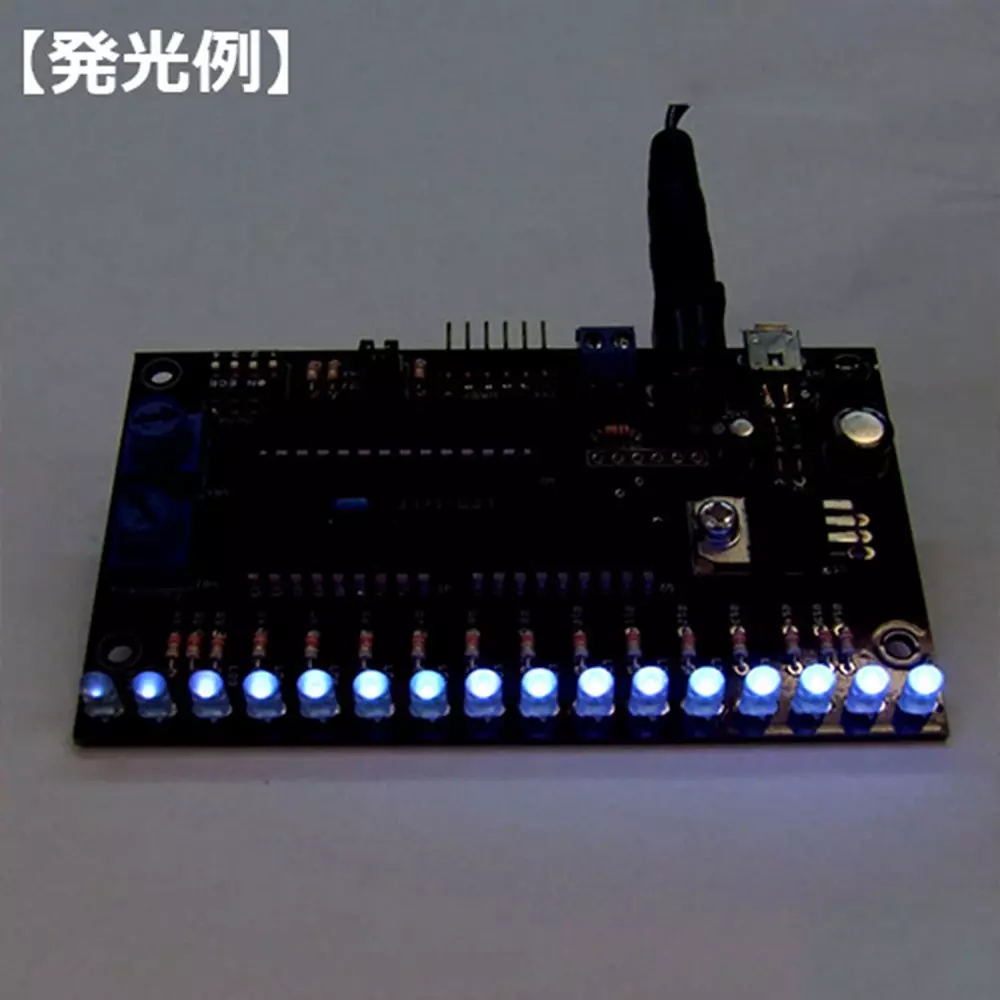

LED |
Single color blue 16 pieces |
Power Supply Voltage (V) |
DC jack (CN1) / terminal block (CN2): DC9-12, USB connector (micro B) (CN3): DC5 |

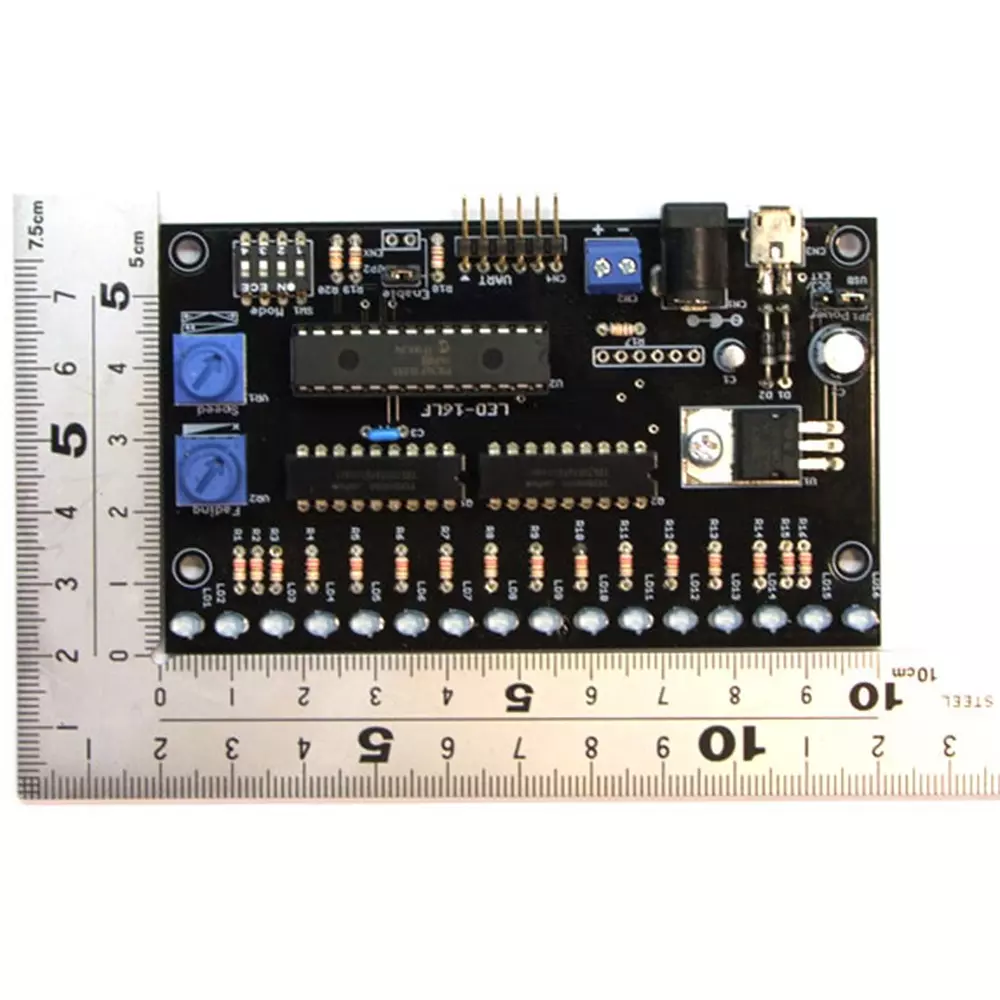

Board Dimensions (mm) |
100x60x12 (excluding solder surface protrusions) |
Specifications |
Adjustment volume: 2 (VR1, VR2) |
