| Set Contents | M5Stack Core S3 main unit, M5Stack DIN Base, hex wrench, and mounting bracket set |
| Type of Product | M5Stack CoreS3 ESP32S3 IoT Development Kit |
| Model No | M5STACK-K128 |
| Monotaro ID | 68556891 |
Set Contents |

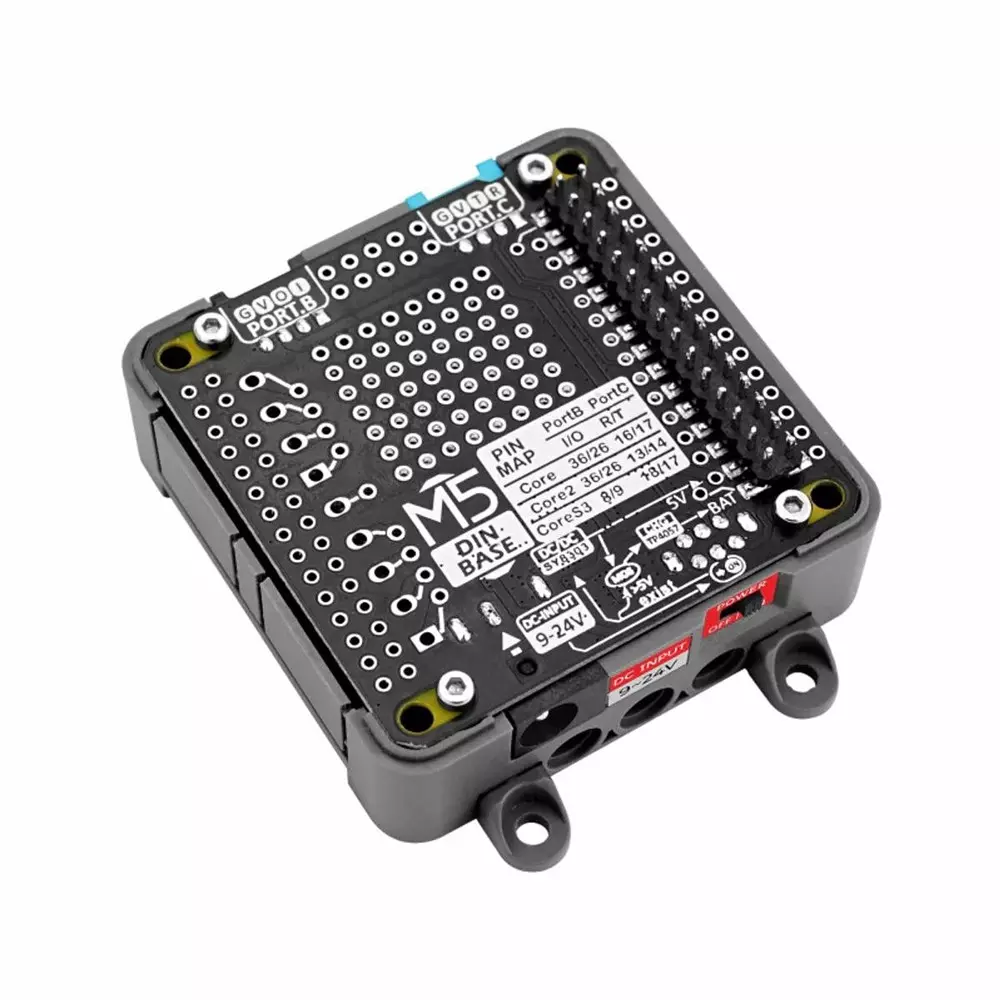

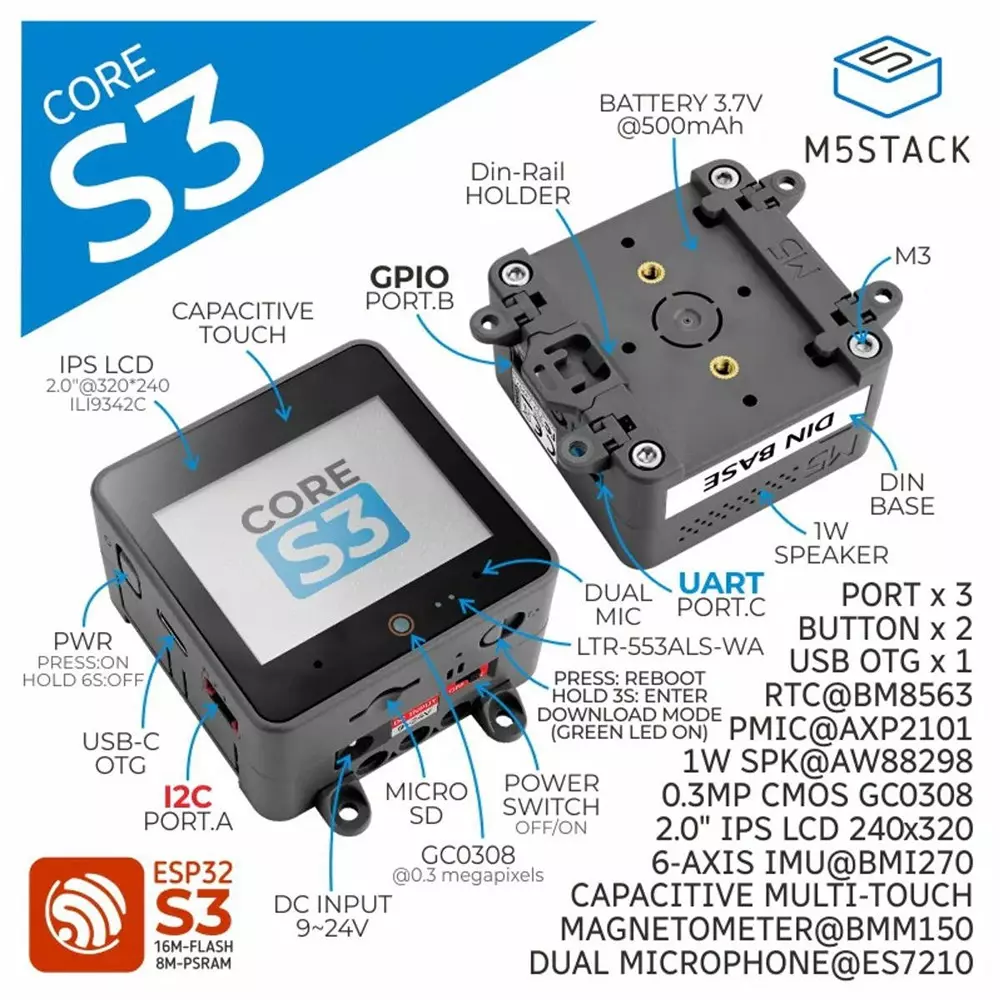

M5Stack Core S3 main unit, M5Stack DIN Base, hex wrench, and mounting bracket set |
Type of Product |
M5Stack CoreS3 ESP32S3 IoT Development Kit |
Model No |
M5STACK-K128 |
Monotaro ID |
68556891 |
Sensor |
6-axis IMU (3-axis accelerometer + 3-axis gyroscope), 3-axis geomagnetic sensor, illuminance and proximity sensor (LTR-553A) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Display |
2.0-inch IPS LCD (resolution: 320x240), multi-touch capacitive touch panel, 300,000 pixel camera (CG0308) |
Name of Manufacturer/Packer/Importer |
M5Stack |
Interface |
USB Type-C port: OTG/CDC supportx1, M5 busx1, Grove port (I2C, GPIO, UARTx1 each)x3, microSD card (TF card) slotx1, push switchx2 |
Power Supply |
[Power management IC (AXP2101)] 3.7V/500mAh built-in battery, USB power supply: 5V, DC jack: 9-24V, [Power switch] |
Audio |
16-bit I2S audio amplifier, 1x speaker (1W), 2x microphones |
Specifications |
[SoC/Peripheral Circuit] [ESP32-S3] Dual-core Xtensa LX7 (maximum 240MHz operation), 2.4GHz Wi-Fi (antenna built into the case), Flash memory: 16MB, PSRAM (pseudo SRAM): 8MB, RTC (real-time clock): BM8563 |
Case |
External dimensions: 54x54x31 mm, DIN rail mountable, wall mountable |
