Ships within 19 days
View
View
View
View
| Set Contents | M5Stamp ESP32S3A modulex1, HY2.0 4-pin basex1, 2.54mm 9-pin headerx1, 2.54mm 6-pin headerx1, hex wrenchx1 |

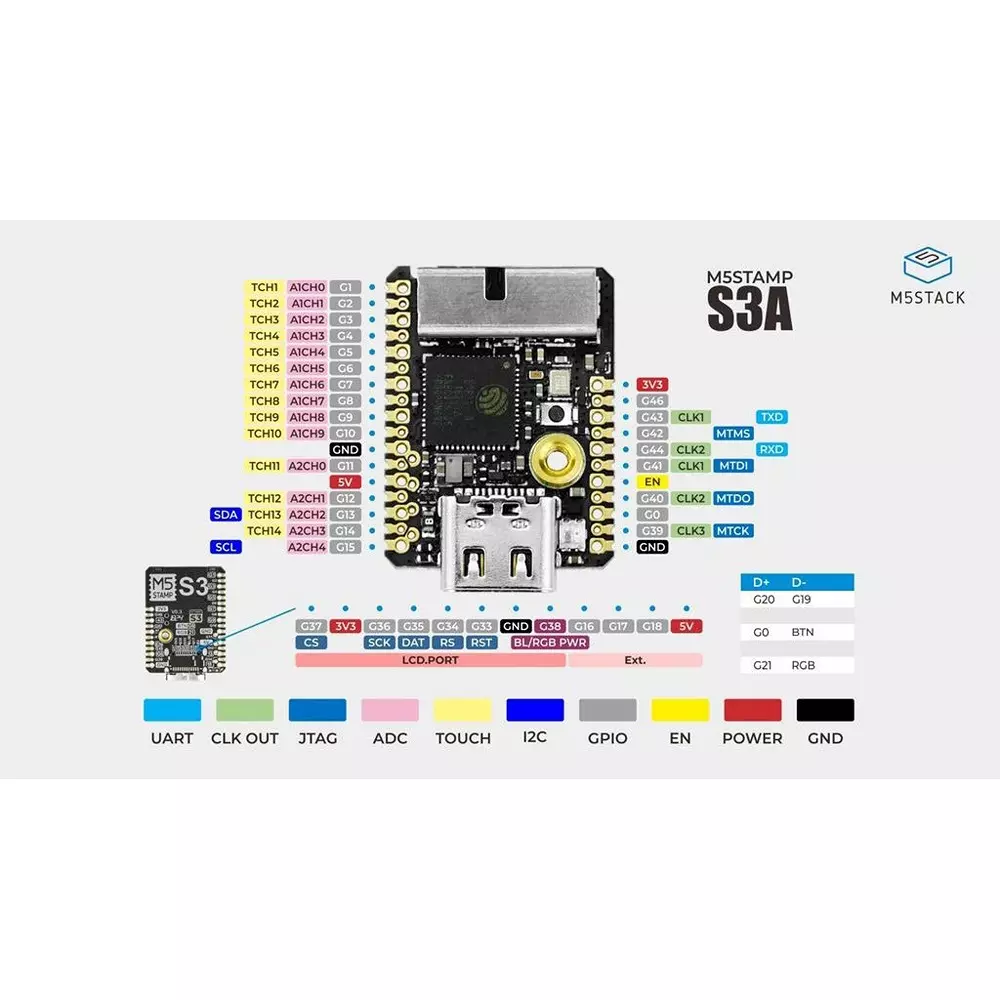

| Type of Product | M5StampS3A |
| Model No | M5STACK-S007-V033 |
| Monotaro ID | 68555859 |
Set Contents |
M5Stamp ESP32S3A modulex1, HY2.0 4-pin basex1, 2.54mm 9-pin headerx1, 2.54mm 6-pin headerx1, hex wrenchx1 |
Type of Product |
M5StampS3A |
Model No |
M5STACK-S007-V033 |
Monotaro ID |
68555859 |
Size |
24x18x4.7 mm |
Power Supply Voltage |
5V |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Converter Type |
【DC/DC】MUN3CAD01-SC |
Interface |
Programmable physical buttonx1, programmable RGB LED (WS2812B-2020)x1, touch sensor, EMAC, motor PWM, LED PWM, UART, <sup>I2C</sup> , <sup>I2S</sup> , SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, GPIOx23, pulse counter |
Flash |
8MB |
Antenna |
[Wireless] 2.4GHz 3D antenna |
Connector Shape |
[For board connection] SMT/DIP (2.54/1.27mm pitch) |
Cell Spacing (mm) |
[LCD FPC] 0.5 (12 or 8 pins) |
Suitable CPU |
SoC：ESP32-S3FN8 |
