| Set Contents | TMOS PIR unit for M5Stack (with STHS34PF80)x1, Grove cablex1 |

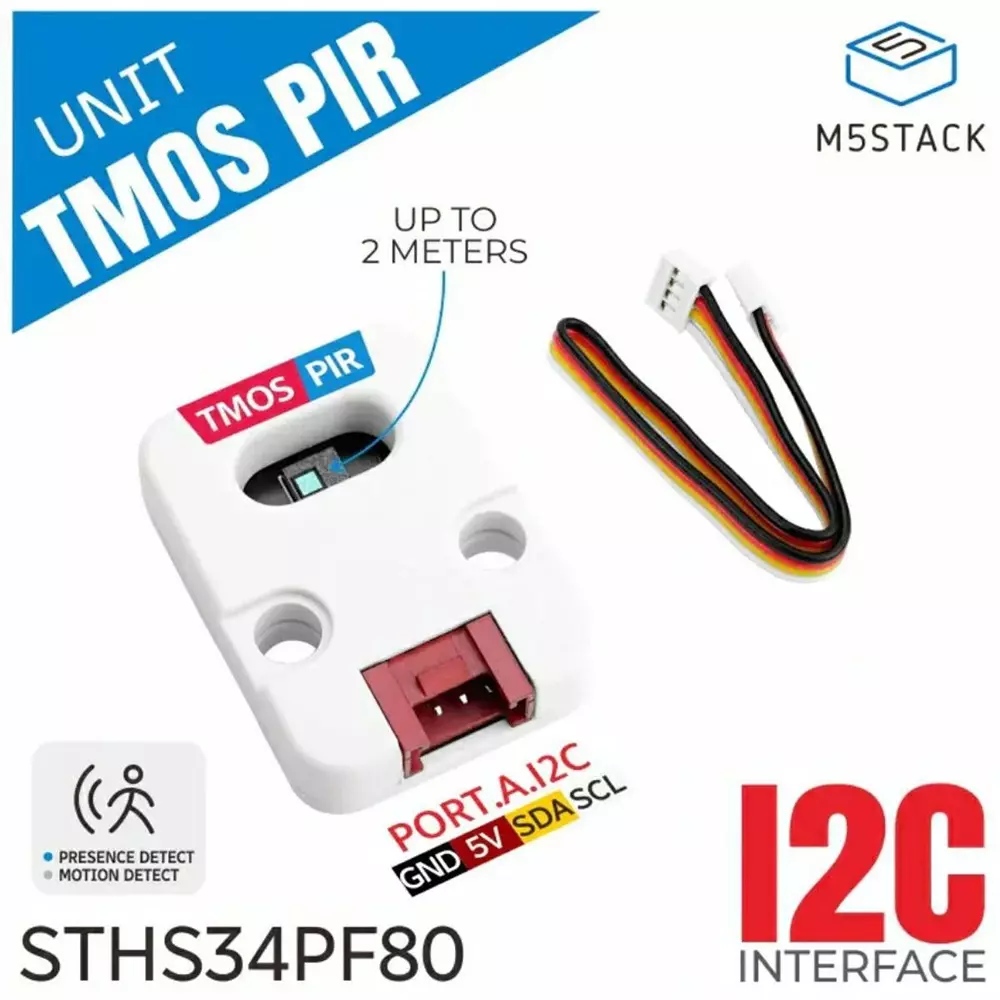

| Type of Product | TMOS PIR unit for M5Stack (with STHS34PF80) |
| Model No | M5STACK-U185 |
| Monotaro ID | 68556410 |
Set Contents |
TMOS PIR unit for M5Stack (with STHS34PF80)x1, Grove cablex1 |
Type of Product |
TMOS PIR unit for M5Stack (with STHS34PF80) |
Model No |
M5STACK-U185 |
Monotaro ID |
68556410 |
Viewing Angle |
80° |
Dimension (mm) |
32x24x8 |
Sensitivity |
[Infrared] 2000LSB/℃ |
Sensor |
STHS34PF80 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Data Rates |
0.25 to 30Hz |
Accuracy |
[Sensor] ±0.3℃ |
Communication Protocol |
I2C |
Specifications |
[I2C Address] 0x5A [Infrared Wavelength] 5-20μm [Minimum Detectable Object] 70x25cm2 |
Measurable Range |
Over 2m |
