M5Stack Electronic Part up to 1 GHz clock frequency, M5STACK-K135

Name: M5Stack Electronic Part up to 1 GHz clock frequency, M5STACK-K135
Brand: M5Stack
SKU: IND.ELE.245331256
Price: 22419 INR
Availability: InStock

Visit the M5Stack Store

EMI starts at ₹1992/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

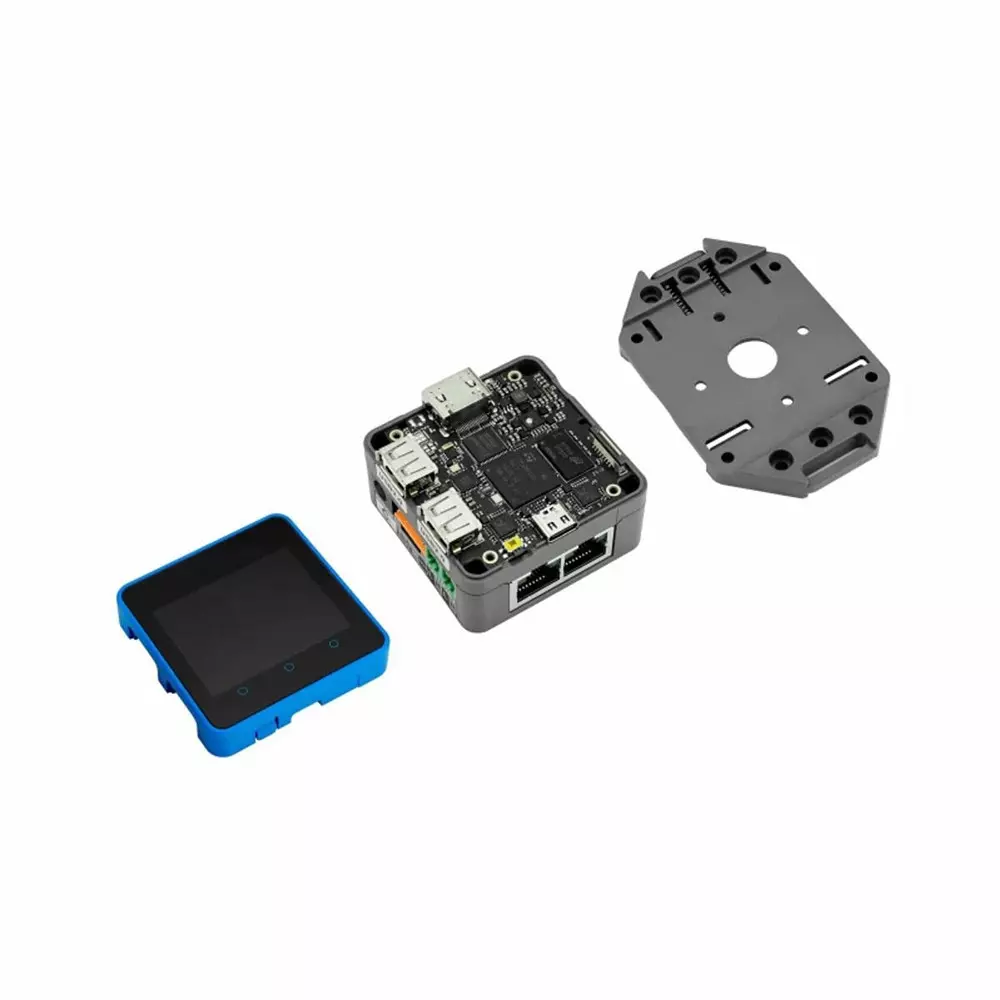

Set Contents	M5Stack CoreMP135 (DIN rail mounting bracket attached)x1, M3 hex wrenchx1, VH3.96-4P connectorx1, 2.54mm pitch 2P connectorx2, micro SD card (with OS pre-written)x1, spec sheetx1
Type of Product	M5Stack CoreMP135
Model No	M5STACK-K135
Monotaro ID	68556026

More M5Stack Electrical Components products More Electrical Components products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

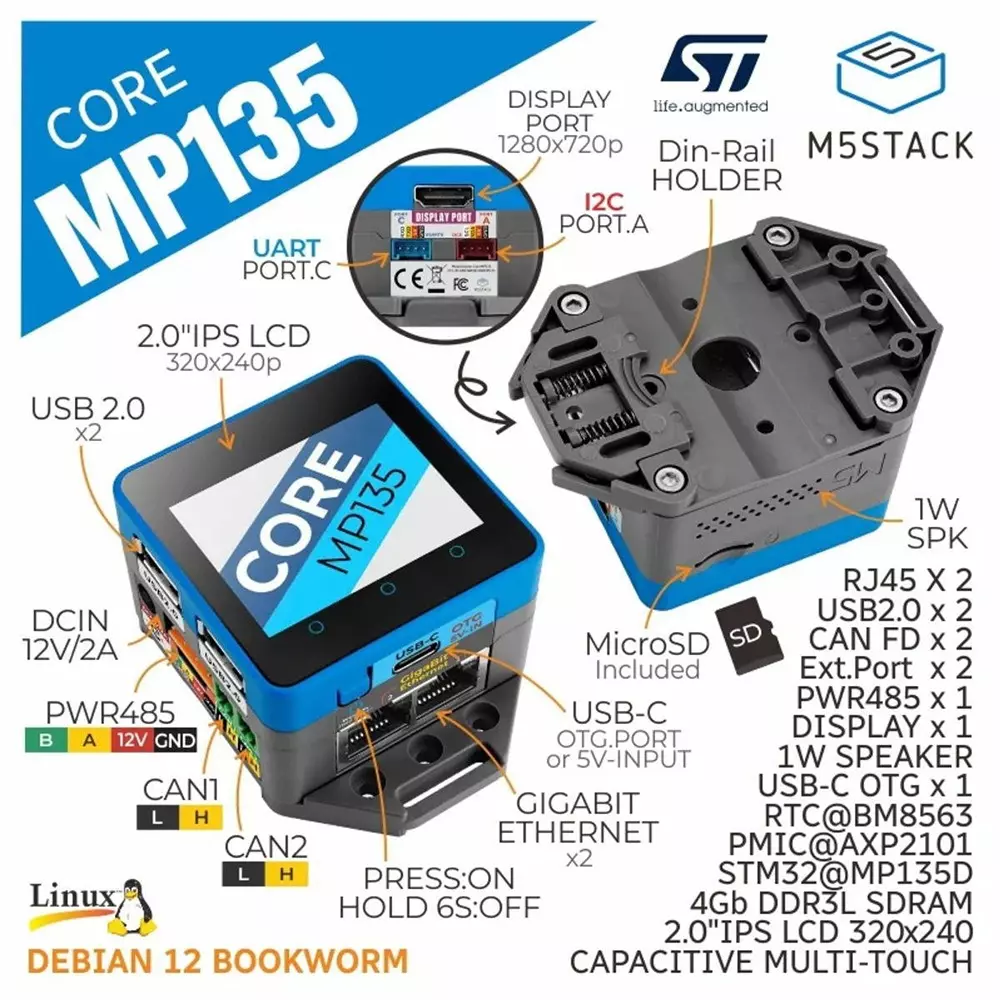

specifications

Set Contents	M5Stack CoreMP135 (DIN rail mounting bracket attached)x1, M3 hex wrenchx1, VH3.96-4P connectorx1, 2.54mm pitch 2P connectorx2, micro SD card (with OS pre-written)x1, spec sheetx1
Type of Product	M5Stack CoreMP135
Model No	M5STACK-K135
Monotaro ID	68556026
Input Power	DC12V/2A (for inner diameter 2.1/outer diameter 5.5 mm barrel plug)
Country of Origin	Japan
Import Country	Direct Import from Japan
Display	[External] HDMI (1280x720) (LT8618SX)
Name of Manufacturer/Packer/Importer	M5Stack
Clock Frequency	up to 1GHz
RAM	[MCU] 128KB AXI SYSRAM, etc.
Port	1xPort A connector (I2C or GPIO), 1xPort C connector (UART or GPIO)
USB	2xType-A connectors (USB 2.0), 1xType-C connector (USB OTG support)
Storage	microSD card slot (includes a microSD card with OS pre-written on it)
Audio	1x1W speaker (Class D amplifier IC: NS4168)
Specifications	[Equipped MCU] STM32MP135DAE7 [RAM] 512MB DDR3L SDRAM [PMU] Power supply control circuit (PMU) installed (AXP2101) [RTC] Real-time clock (RTC) installed (BM8563) [CAN] 2xCAN FD compatible CAN ports (SIT1051T/3) [RS-485] 1xRS-485 port (half-duplex, MAX3485) [M5BUS] 1xM5BUS connector
Outer Dimensions	54x54x34.5 mm (excluding DIN rail mounting bracket)
Suitable CPU	[Core] Arm Cortex-A7 32-bit RISC core
Touch Method	Multi-touch capacitive type (FT6336U)
LCD Specifications	2-inch IPS LCD (320x240) (built-in)
Cache Memory	L1: 32KB instructions/32KB data, L2: 128KB
Correspondence to Ethernet	2xRJ-45 connectors (RTL8211F, 1Gbps compatible)
