| Set Contents | 1xM5Stack Din Meter (with M5Stamp S3) body, 1xdouble-sided tape for panel attachment, 1x250 mAH LiPo battery pack, 1xsticker, 1xquick-detachable connector (cable side), 1xback brace for screw fixing (M3 screws not included) |

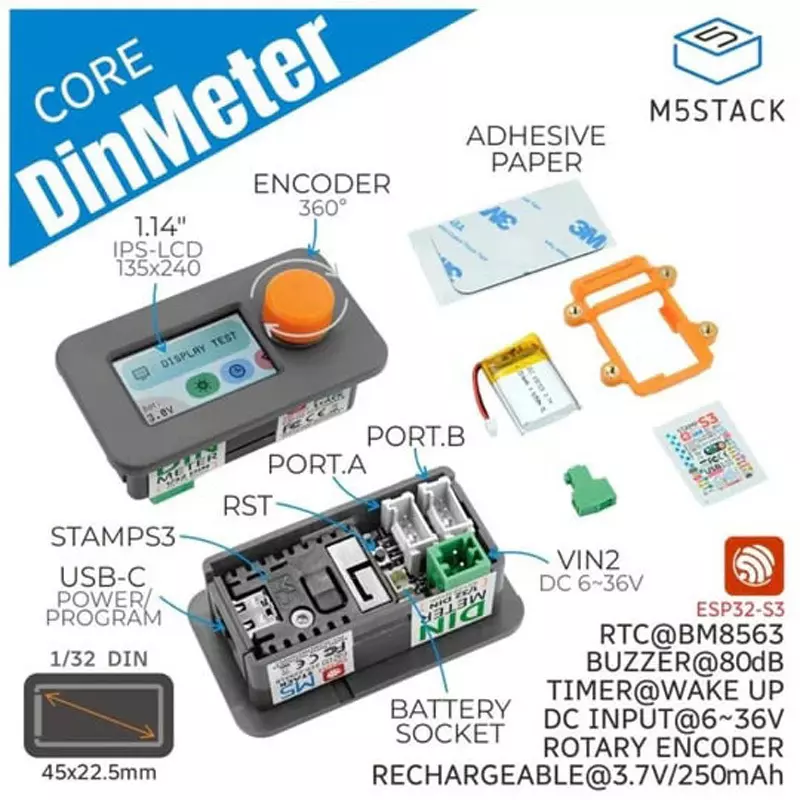

| Type of Product | M5 Din Meter (with M5Stamp S3) |
| Model No | M5STACK-K134 |
| Monotaro ID | 68556340 |
Set Contents |
1xM5Stack Din Meter (with M5Stamp S3) body, 1xdouble-sided tape for panel attachment, 1x250 mAH LiPo battery pack, 1xsticker, 1xquick-detachable connector (cable side), 1xback brace for screw fixing (M3 screws not included) |
Type of Product |
M5 Din Meter (with M5Stamp S3) |
Model No |
M5STACK-K134 |
Monotaro ID |
68556340 |
Mass (g) |
17.6 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Display |
[LCD] Screen: 1.14-inch IPS LCD, Resolution: 240x135px, Controller: ST7789v2 |
Item Code |
M5STACK-K134 |
Name of Manufacturer/Packer/Importer |
M5Stack |
Power Supply |
USB Type-C connector, external power terminal, LiPo battery, battery charging control: Yes (charging current: 100 mA) |
buzzer |
Yes (maximum volume: 80dB) |
Specifications |
MCU: ESP32-S3FN8, CPU cores: 2, maximum frequency: 240MHz, built-in flash memory: 8MB, built-in RAM: 512KB, RTC: Yes (connection method: I2C) |
Outer Dimensions |
53x32x30 mm (excluding rotary encoder knob and LiPo battery), instrument panel mounting hole dimensions: 45x22.5 mm |
I/O Connector |
2 (PORT A and PORT B) |
Encoder Type |
Rotary Encoder with Switch |
