| Set Contents | M5GOx1, Unit (ENV III, IR, RGB, PIR, ANGLE, HUB)x6, LEGO compatible blocksx4, LEGO connectorsx12, GROVE cablesx4, Type-C USB cable (20cm)x1, User manualx1 |
| Type of Product | M5GO IoT Starter Kit V2.7 |
| Model No | M5STACK-K006-V27 |
| Monotaro ID | 68556830 |
Set Contents |
M5GOx1, Unit (ENV III, IR, RGB, PIR, ANGLE, HUB)x6, LEGO compatible blocksx4, LEGO connectorsx12, GROVE cablesx4, Type-C USB cable (20cm)x1, User manualx1 |
Type of Product |
M5GO IoT Starter Kit V2.7 |
Model No |
M5STACK-K006-V27 |
Monotaro ID |
68556830 |
Mass (g) |
56.4 |
Input Power |
5 V @ 500 mA |
Dimension (mm) |
54x54x21 |
Microphone |
Analog microphone |
Battery |
500mAh @3.7V |
Speaker |
1W-0928 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Case Material |
Plastic (polycarbonate) |
Name of Manufacturer/Packer/Importer |
M5Stack |
Operating Temperature |
0 to +60℃ |
Port |

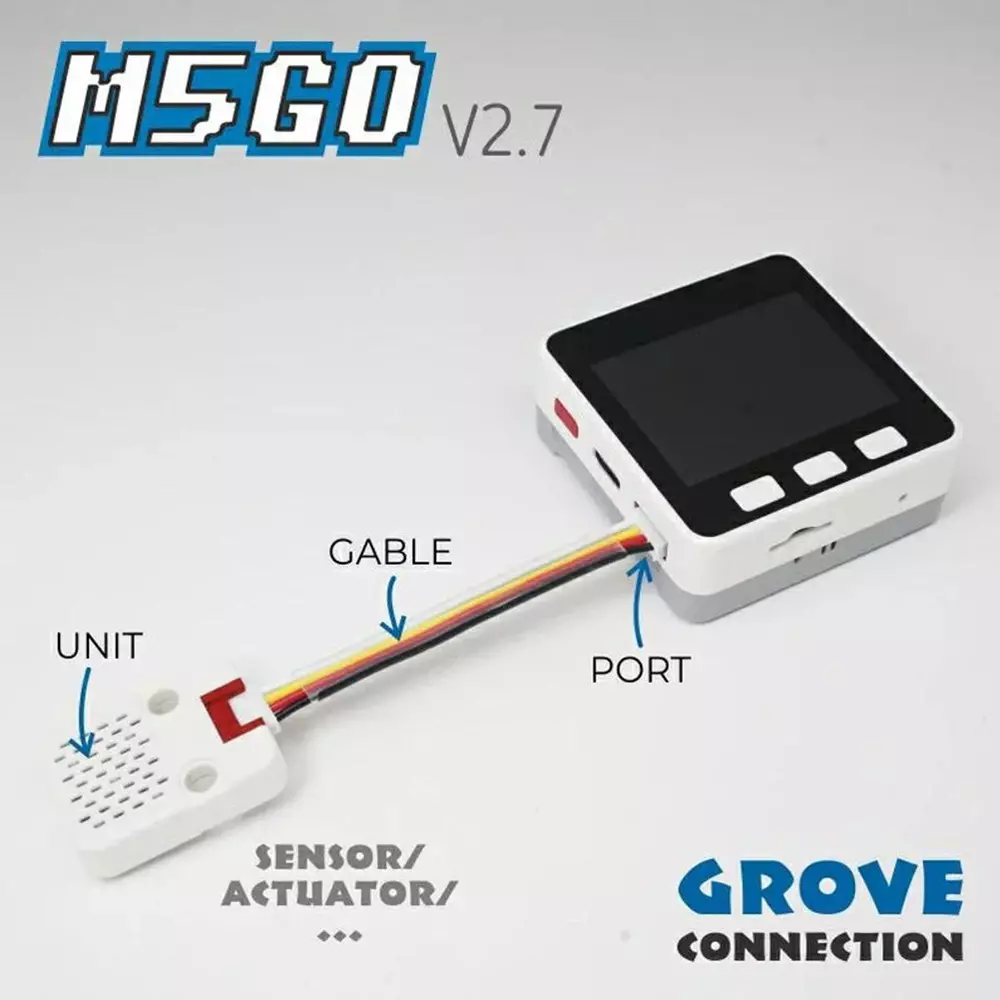

Type-Cx1, Grove(I2C, I/O, UART)x1 |
Memory |
[Flash] 16MB |
LED |
RGB LED(SK6812)x10 |
Antenna |
2.4GHz 3D Antenna |
Specifications |

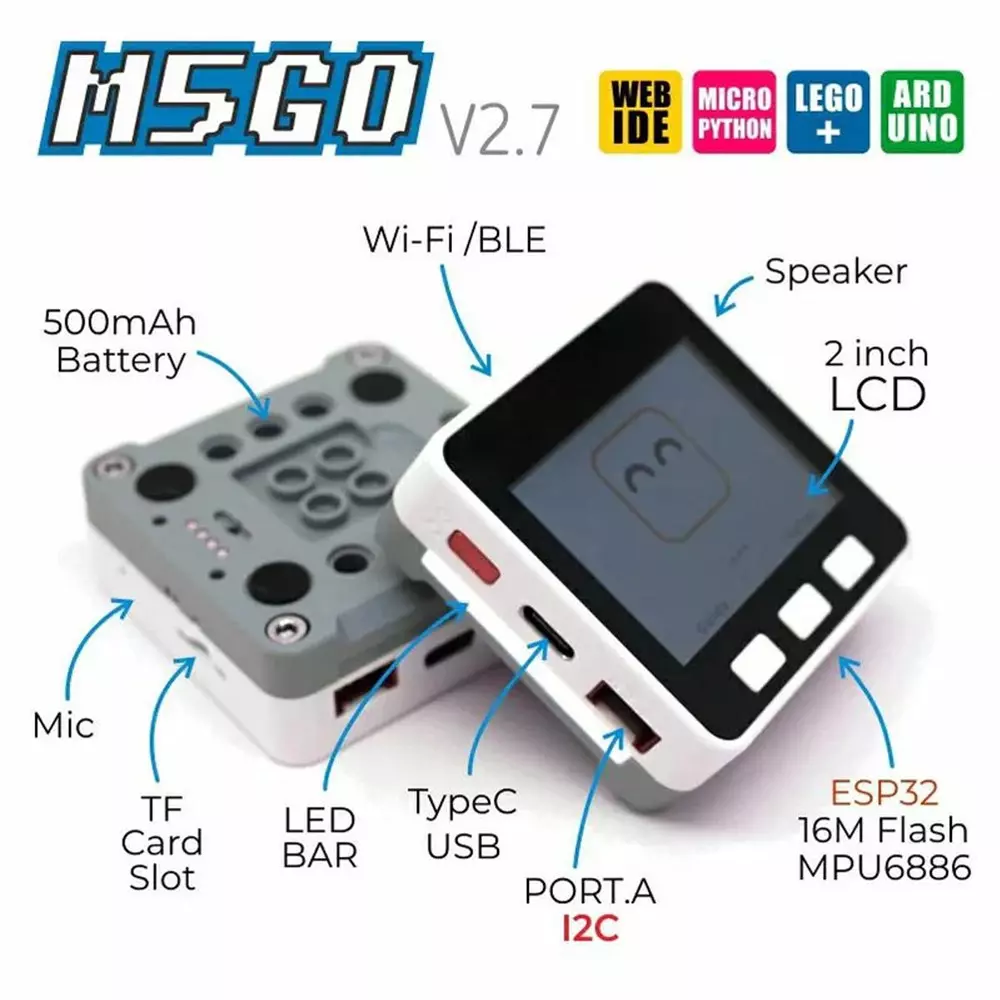

ESP32: 240MHz dual-core, 600DMIPS, 520KB SRAM, Wi-Fi, dual-mode Bluetooth; IMU: MPU6886; USB chip: CH9102F |
LCD Panel |
[IPS] 2-inch 320x240 color TFT LCD, ILI9342C, maximum brightness 853nit |
