| Set Contents | Stepping motor driver module v1.1x1, 4P quick-detachable terminal blockx3, 2P quick-detachable terminal blockx4, 4P quick-detachable terminal blockx1 |

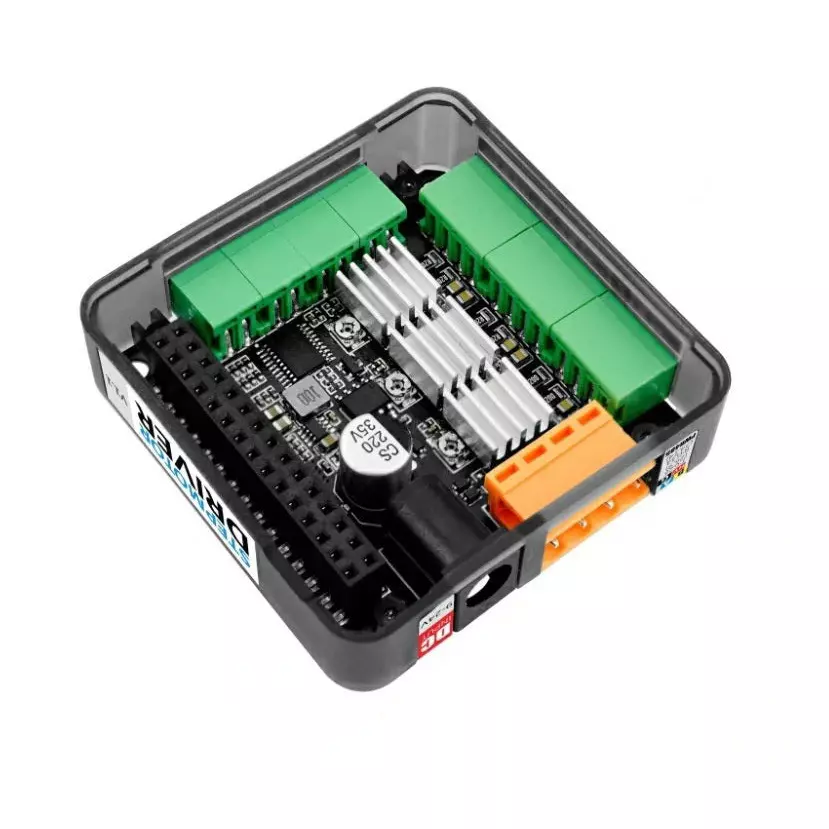

| Type of Product | Stepper Motor Driver Module v1.1 (HR8825) for M5Stack |
| Model No | M5STACK-M039-V11 |
| Monotaro ID | 68556875 |
Set Contents |
Stepping motor driver module v1.1x1, 4P quick-detachable terminal blockx3, 2P quick-detachable terminal blockx4, 4P quick-detachable terminal blockx1 |
Type of Product |
Stepper Motor Driver Module v1.1 (HR8825) for M5Stack |
Model No |
M5STACK-M039-V11 |
Monotaro ID |
68556875 |
Mass (g) |
40 |
Dimension (mm) |
54.2x54.2x13.2 |
Connector |
[DC jack] Barrel jackx1 [Stepping motor driver] 4P quick-detachable terminal blockx3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Interface |
[Digital Input] Circuit configuration: 4-bit, Connector: 2P quick-detachable terminal blockx4 [M5Core Series] CORE-bus 40-pin connectorx1 |
Power Supply Voltage (V) |
[DC Jack] 9 to 24 |
Communication Interface |
[PWR485] Communication standard: Half-duplex RS-485, Power supply voltage: 9 to 24V, Connector: 4-pin quick-detachable terminal blockx1 |
Specifications |

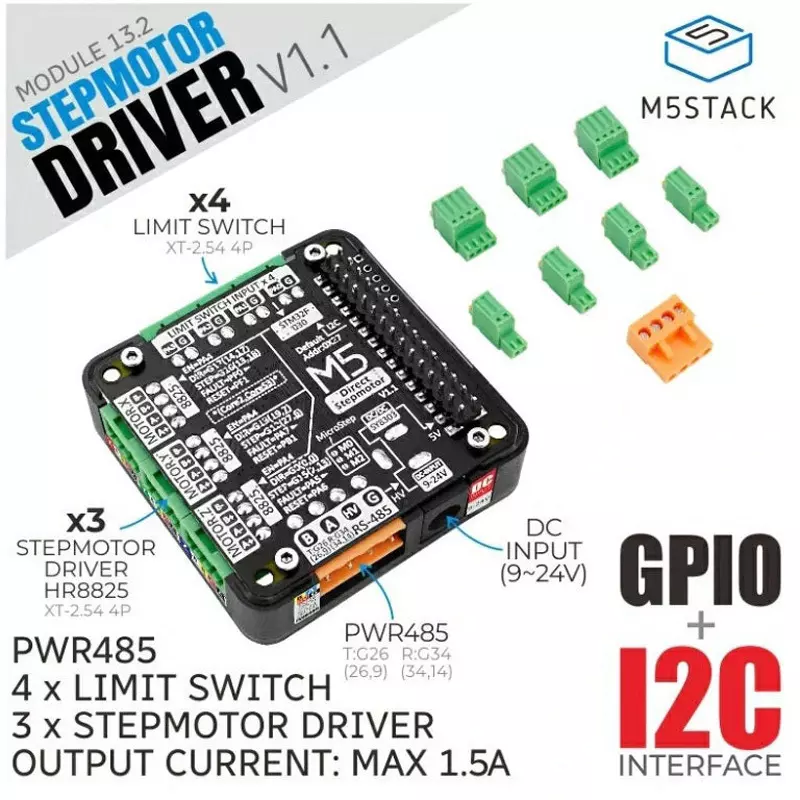

[I/O Expansion Chip] STM32F030F4P6 Coretex Microcontroller [Stepping Motor Driver] Circuit Configuration: HR8825x3, Supported Microsteps: FULL, 1/2, 1/4, 1/8, 1/16, 1/32, Maximum Current Limit per Channel: 1.5A (Set with Potentiometer), Connector: 4P One-Touch Detachable Terminal Blockx3 |
