| Set Contents | Weighing unitx1, HY2.0-4P cable (20cm)x1, M3 nutsx4 |

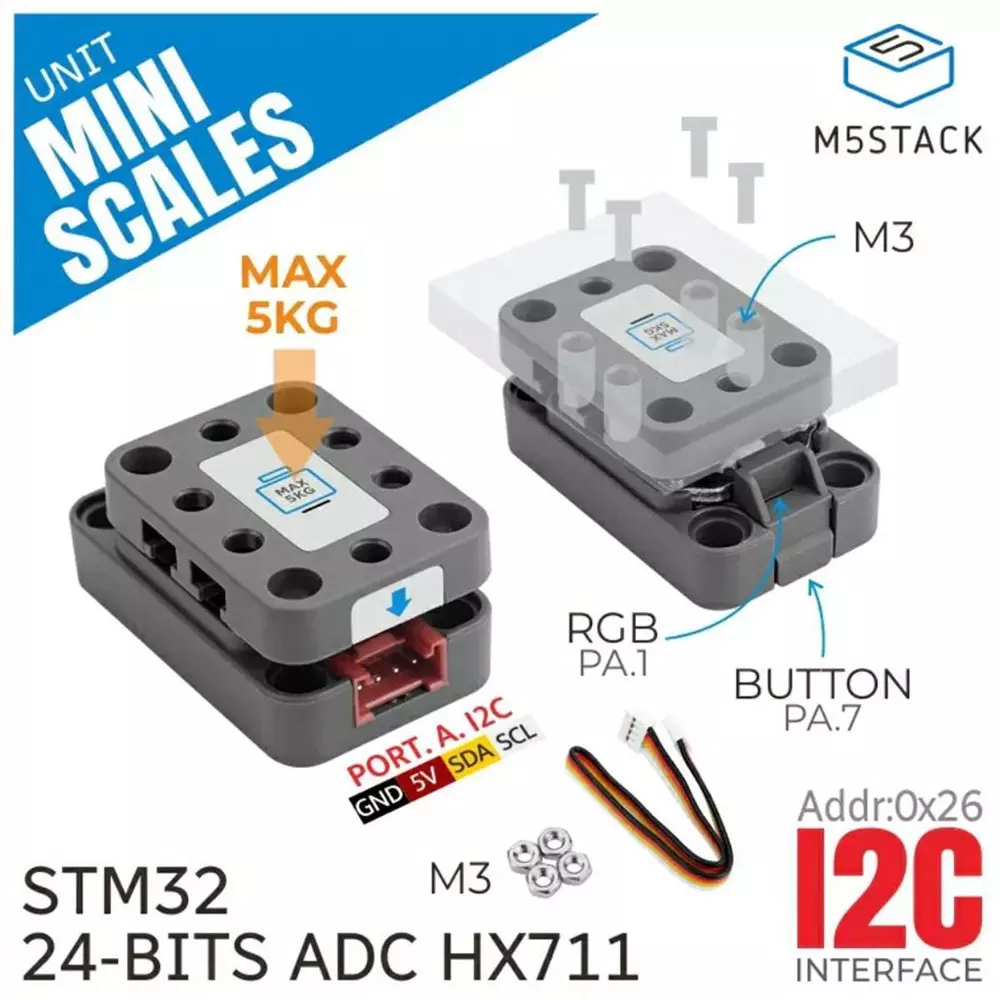

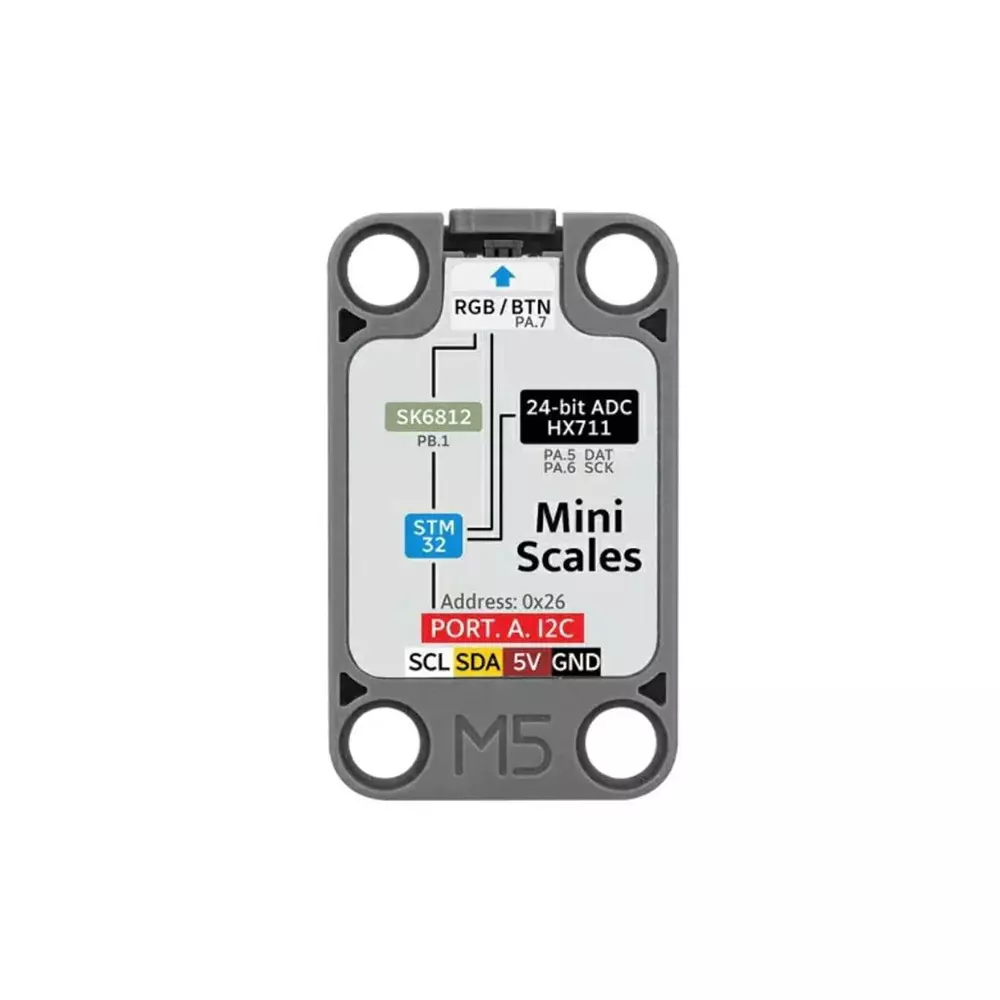

| Type of Product | M5Stack weighing unit (5kg range) |
| Model No | M5STACK-U177 |
| Monotaro ID | 68556209 |
Set Contents |
Weighing unitx1, HY2.0-4P cable (20cm)x1, M3 nutsx4 |
Type of Product |
M5Stack weighing unit (5kg range) |
Model No |
M5STACK-U177 |
Monotaro ID |
68556209 |
Mass (g) |
15.3 |
Module |
[Strain gauge] CZL928MC |
Function |
Tare |
Dimension (mm) |
40x24x18 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Measurement Range |
Up to 5 kg |
Name of Manufacturer/Packer/Importer |
M5Stack |
Controller |
[Micro] STM32F030 |
LED |
SK6812 |
Protocol |
[Conversion] STM32F030F4P6 (32-bit ARM Cortex-M0 processor) [Communication] I2C (Address: 0x26) |
A/D Converter |
HX711 |
