| Set Contents | 1xM5Stamp PLC Controller, 4xMounting Accessories, 4xScrew Clip Fasteners |

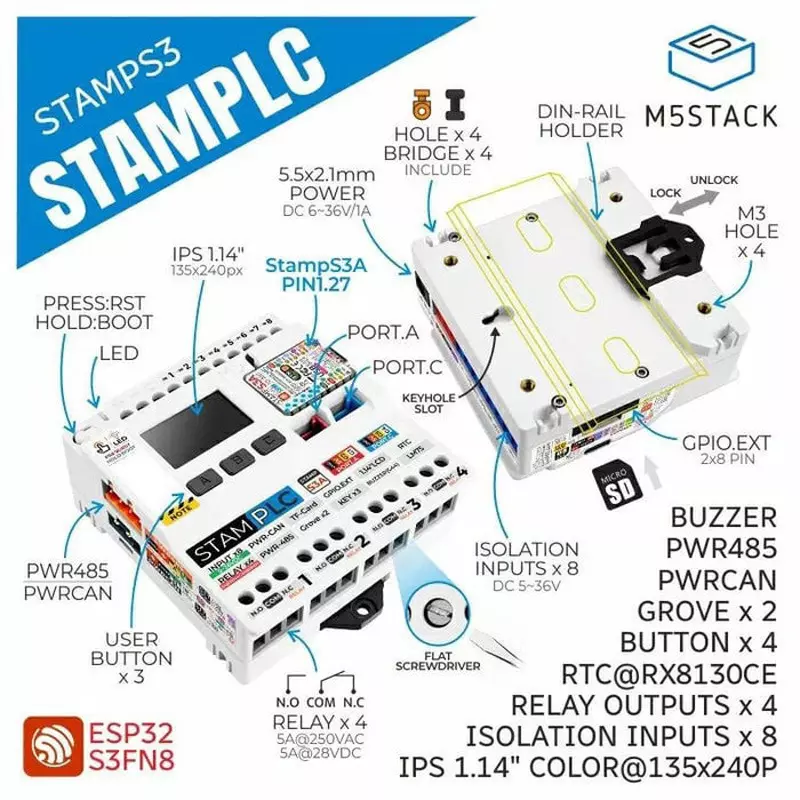

| Type of Product | M5Stamp PLC controller (with M5StampS3A) |
| Model No | M5STACK-K141 |
| Monotaro ID | 68555816 |
Set Contents |
1xM5Stamp PLC Controller, 4xMounting Accessories, 4xScrew Clip Fasteners |
Type of Product |
M5Stamp PLC controller (with M5StampS3A) |
Model No |
M5STACK-K141 |
Monotaro ID |
68555816 |
Mass (g) |
139.4 |
Dimension (mm) |
72.0x80.0x33.4 |
Operating Temperature Range |
0 to +40℃ |
Sensor |
LM75 (temperature sensor), INA226 (voltage/current sensor), RTC (RX8130CE) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Display |
1.14-inch color display (resolution 135x240), equipped with ST7789v2 chip |
Capacity |
Flash memory: 8 MB |
Relay |
AC5A @250V, DC5A @28V |
Name of Manufacturer/Packer/Importer |
M5Stack |
Control |
Interactive controls: RESET/BOOT button, 3 USER buttons, buzzer |
Interface |
Expansion interfaces: GPIO.EXT interface, two Grove interfaces |
Power Consumption |
Standby current: 21.60mA (DC5V), 15.22mA (DC12V) / Operating current: 93.89mA (DC5V), 47.84mA (DC12V) |
Storage |
microSD card slot |
Controller |
StampS3A(ESP32-S3FN8, 2.4GHz Wi-Fi) |
Communication Interface |
PWRCAN(XT30(2+2)PW-M), PWR485(HT3.96-4P) |
Installation Type |
DIN rail mounting |
Digital Output |
4 relay outputs |
I/O Ports |
(Power Supply Capacity) 2x8 Connector Maximum Load: DC4.76V@700mA / Grove Port Load Test: DC4.81V@700mA |
Digital Input |
8 isolated digital inputs (5 to 36V DC) |
DC Power Adapter (V) |
Supports DC 6-36V@1A voltage input / DC jack (outer diameter 5.5mm, inner diameter 2.1mm, center positive) |
