| Set Contents | QR code scanner unitx1, HY2.0-4P cable (20cm)x1 |

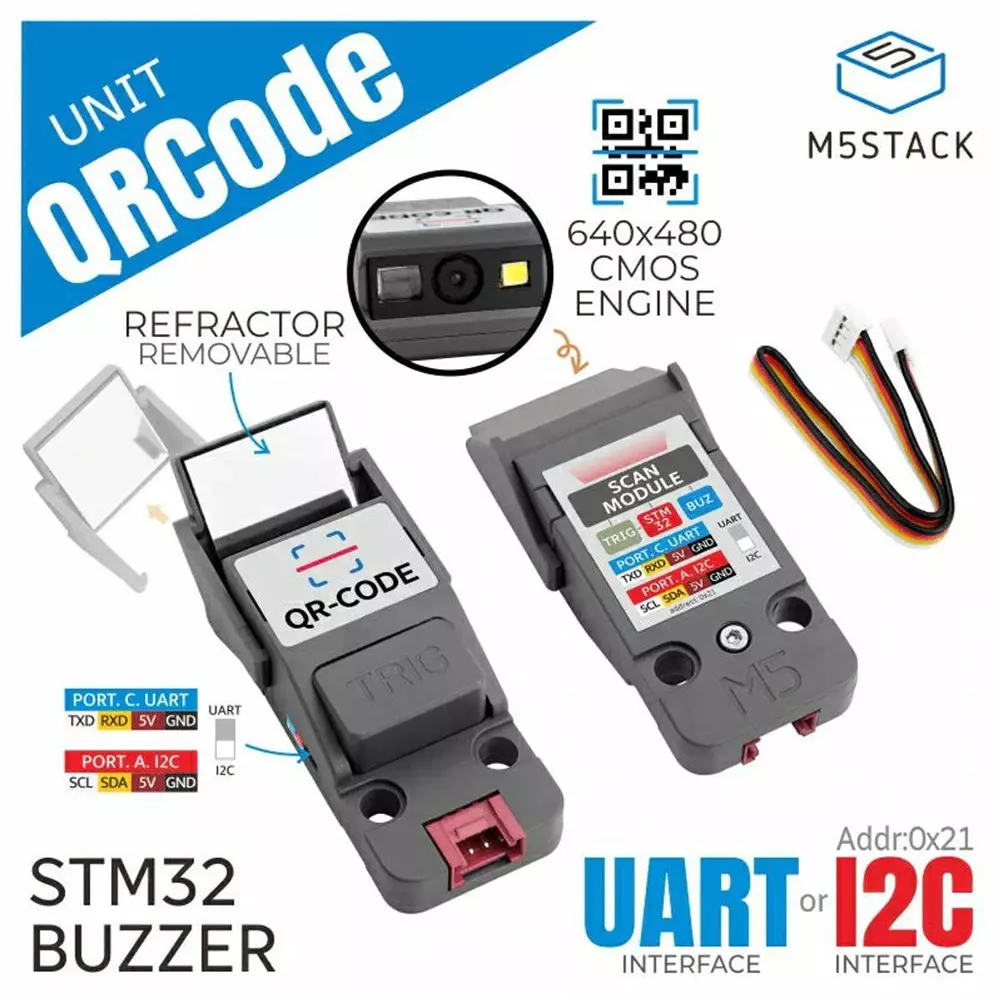

| Type of Product | QR code scanner unit for M5Stack |
| Model No | M5STACK-U173 |
| Monotaro ID | 68556227 |
Set Contents |
QR code scanner unitx1, HY2.0-4P cable (20cm)x1 |
Type of Product |
QR code scanner unit for M5Stack |
Model No |
M5STACK-U173 |
Monotaro ID |
68556227 |
Lighting |
White LED |
Dimension (mm) |
65.8x18.4x15.8 |
Sensor |
640x480 resolution CMOS sensor |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Case Material |
Plastic (PC) |
Name of Manufacturer/Packer/Importer |
M5Stack |
Accuracy |
[Recognition reading] ≧ 5 mil |
Conform to |
[QR Code] PDF417, QR Code, Data Matrix [1D Code] Code39, Code93, Code128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5 |
Communication Interface |
I2C/UART(0x21) |
Contrast |
[Print] ≧ 20% |
Offset Angle |
[Scan] Elevation angle ±55° / Declination angle ±55° (adjustable with reflective scan head) |
Specifications |
[MCU] STM32F030F4P6 (32-bit ARM Cortex-M0) |
Aiming |
Green LED |
