| Set Contents | PWRCAN module-13.2x1, HT3.96-4Px1, XT30 (2+2) PW-M cablex1 |

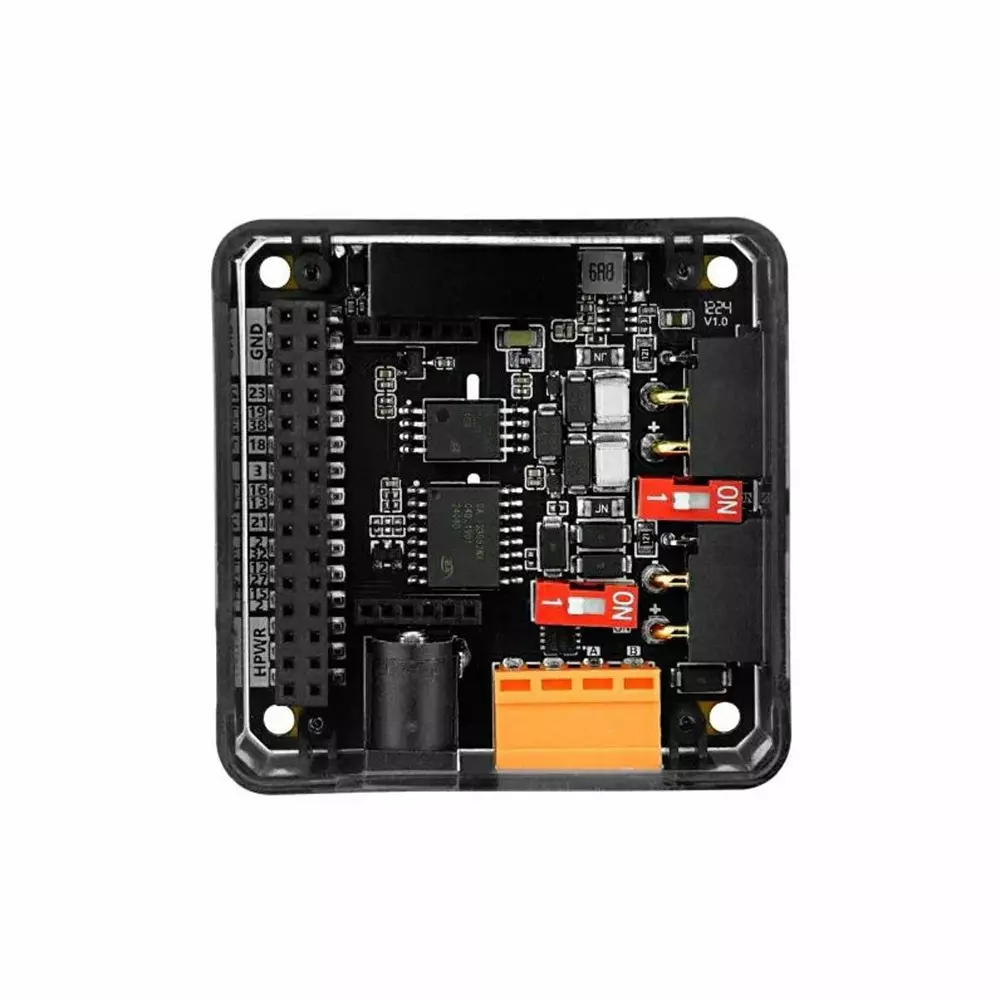

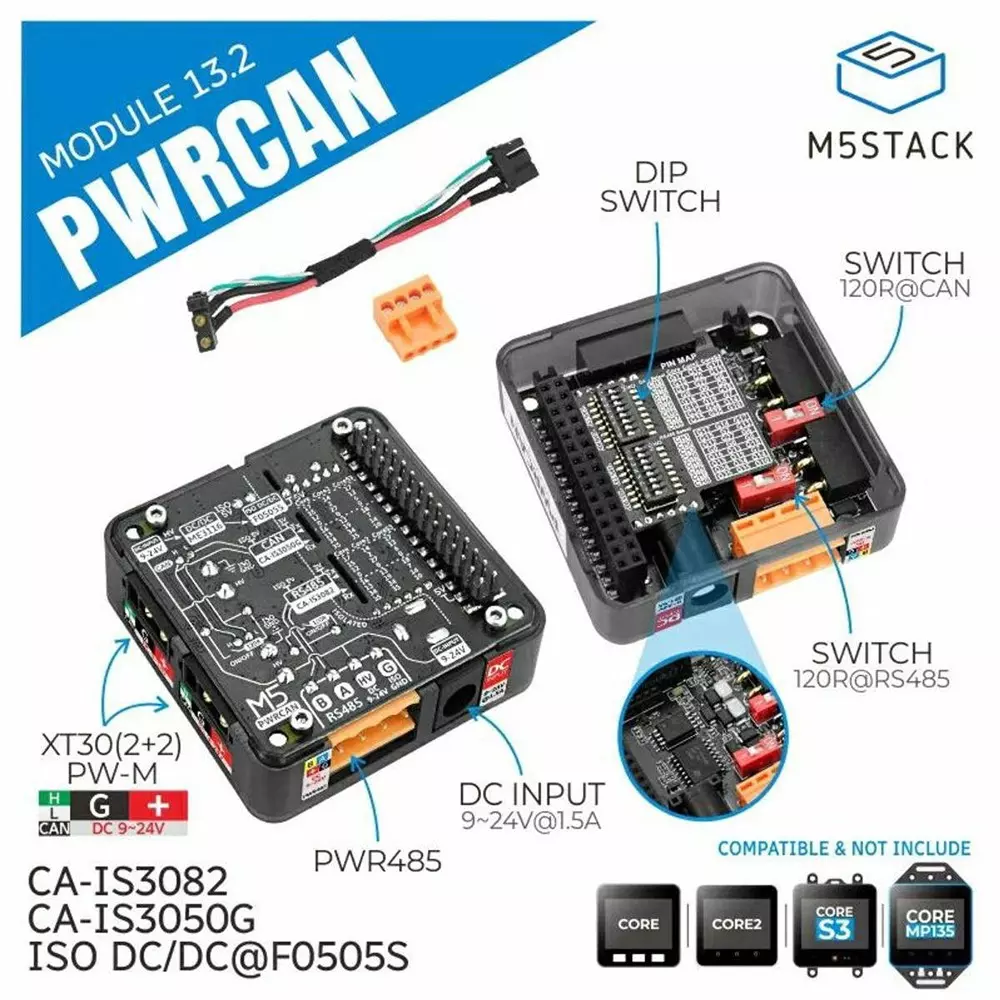

| Type of Product | PWRCAN Module-13.2 for M5Stack (Isolated CAN/RS485) |
| Model No | M5STACK-M139 |
| Monotaro ID | 68556717 |
Set Contents |
PWRCAN module-13.2x1, HT3.96-4Px1, XT30 (2+2) PW-M cablex1 |
Type of Product |
PWRCAN Module-13.2 for M5Stack (Isolated CAN/RS485) |
Model No |
M5STACK-M139 |
Monotaro ID |
68556717 |
Mass (g) |
27.7 |
Dimension (mm) |
54x54x19.7 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Interface |
[CAN] XT30 (2+2) PW-M, horizontal solder pin header [RS485] HT3.96-4p socket |
Input Voltage Range (V) |
9 to 24 |
Protocol |
CAN, RS485, bus communication protocols |
Specifications |
CAN communication: CA-IS3050G (dual channel); RS485 communication: CA-IS3082W (single channel); CAN-compatible nodes: 110; RS485-compatible nodes: 256; Power supply: DC power socket (5.5/2.1mm, center positive), RS485 (HT3.96), CAN (XT30) |
Communication speed |
[CAN bus] 1Mbps (max) [RS485 bus] 500kbps (max) |
Temperature (℃) |
0 to +40 |
