| Type of Product | M5Stack CoreS3 SE |
| Model No | M5STACK-K128-SE |
| Monotaro ID | 68555920 |
| Mass (g) | 38.4 |
Type of Product |
M5Stack CoreS3 SE |
Model No |
M5STACK-K128-SE |
Monotaro ID |
68555920 |
Mass (g) |
38.4 |
Dimension (mm) |
54x54x15.5 |
Maximum Output |
[Grove Connector] DC 4.2V/940mA (battery powered), DC 5V/680mA (USB powered) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |

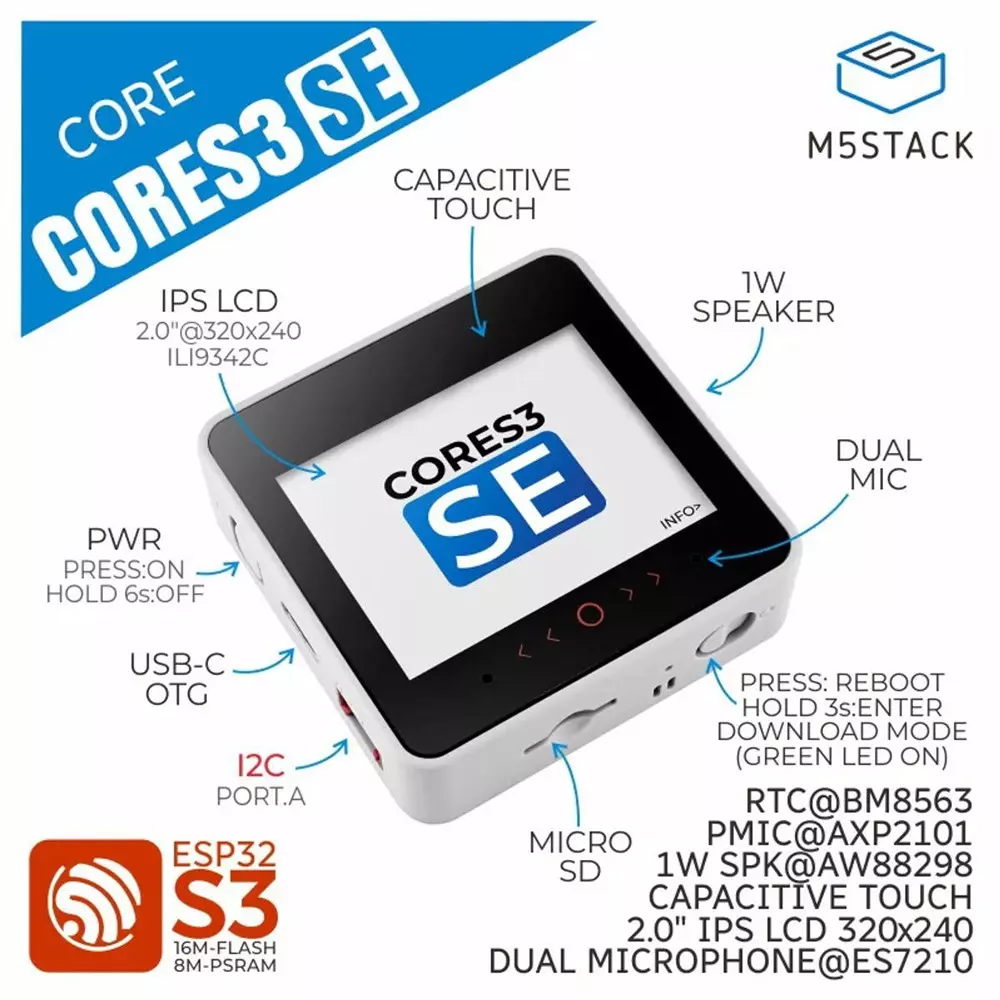

Display |
2.0-inch IPS LCD (resolution: 320x240), capacitive touch panel |
Name of Manufacturer/Packer/Importer |
M5Stack |
Interface |
1xUSB Type-C port (OTG/CDC support), 1xGrove port (I2C), 1xmicro SD card (TF card) slot (supports up to 16GB), 2xpush switches, 1xM-BUS |
Power Consumption |
Battery Powered: Standby mode: DC 4.2V/104.64 μA, Normal operation: DC 4.2V/109.67mA USB Powered: Normal operation: DC 5V/166.27mA |
Memory |
[Flash] 16MB [PSRAM (pseudo SRAM)] 8MB |
Audio |
Amplifier: AW88298 (1W 16-bit I2S power amplifier), 1W speaker, Audio decoder: ES7210 (dual microphone input) |
Specifications |
[RTC (Real-time Clock) IC] BM8563 [Power Management IC] AXP2101 |
