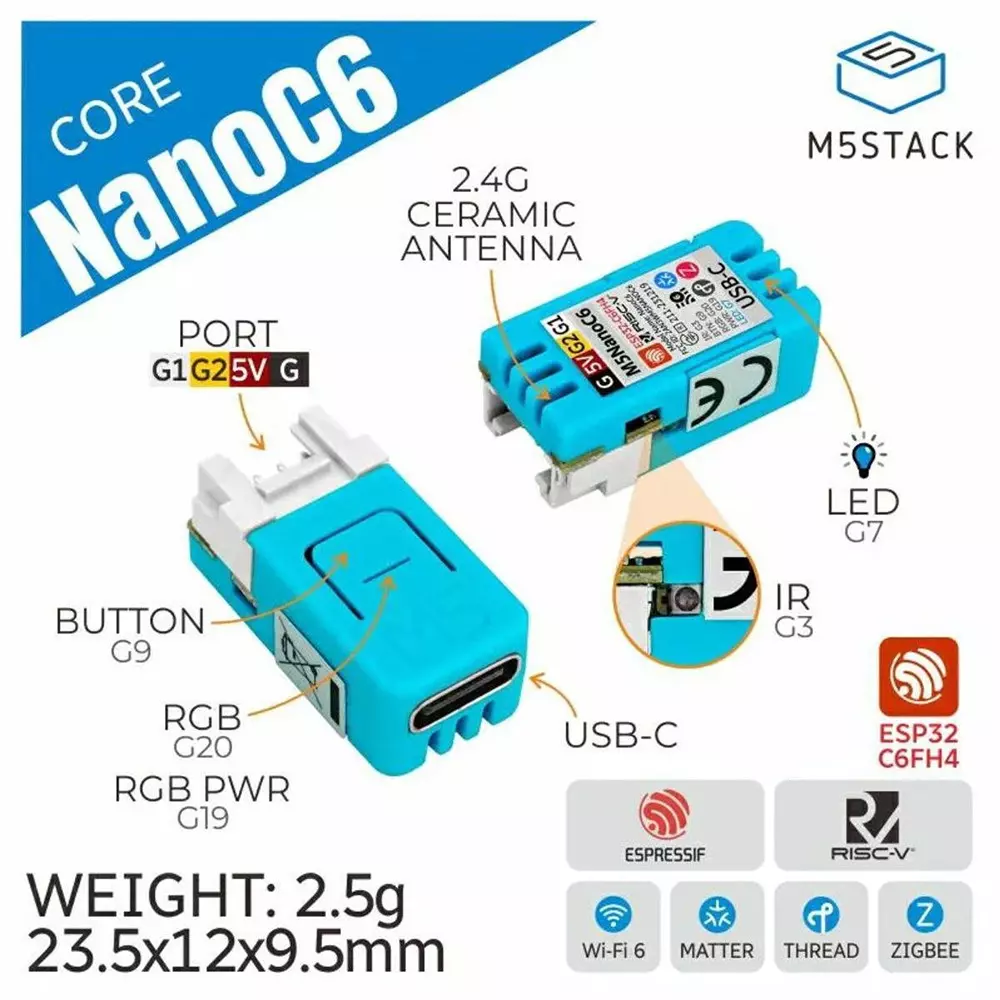

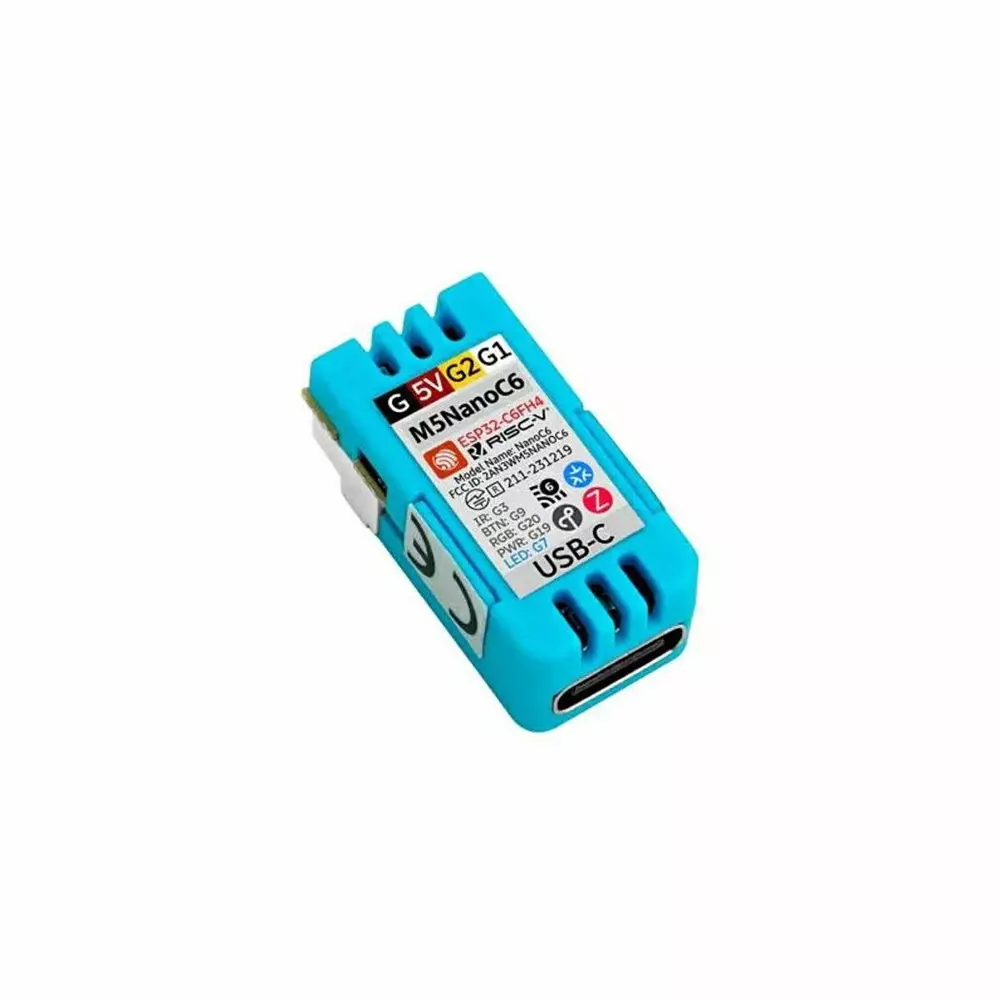

| Type of Product | M5Stack NanoC6 |
| Model No | M5STACK-C125 |
| Monotaro ID | 68556008 |
| Mass (g) | 2.6 |
Type of Product |
M5Stack NanoC6 |
Model No |
M5STACK-C125 |
Monotaro ID |
68556008 |
Mass (g) |
2.6 |
Dimension (mm) |
23.5x12x9.5 |
Output Current |
[Grove (maximum)] 600 mA (DC 5 V) |
Operating current (mA) |
106.2(DC5V) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
LED |
【RGB】WS2812 |
Standby Current |
125.5 μA DC5V (ULP low power) |
Specifications |
[SoC] ESP32-C6FH4@RISC-V 160MHz, 4M Flash, Wi-Fi 6 (2.4GHz), Zigbee 3.0, Thread 1.3, Matter, CDC [Wi-Fi Stretch Test] 54.9m (Antenna Backup, Back Alignment Test) |
Operating Temperature (c) |
0 to +40℃ |
Parameter |
[IR Remote Control] The infrared radiation distance is 632 cm when the angle is less than 0°, 83 cm when the angle is less than 45°, and 29 cm when the angle is less than 90°. |
