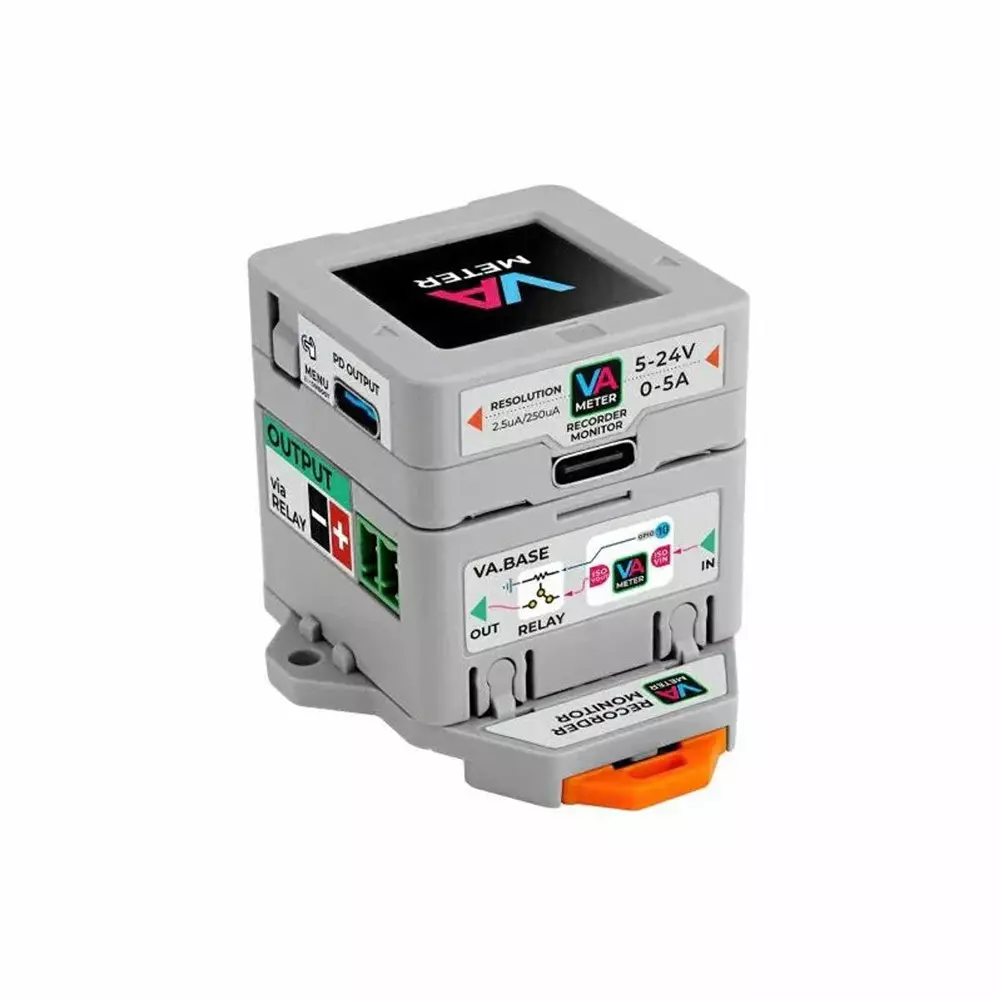

| Type of Product | M5Stack voltage/current meter with M5StampS3 |
| Model No | M5STACK-K136 |
| Monotaro ID | 68556130 |
| Mass (g) | VA Meter: 17.7, VA Meter Base: 25.8, Mounting Rail: 4 |
Type of Product |
M5Stack voltage/current meter with M5StampS3 |
Model No |
M5STACK-K136 |
Monotaro ID |
68556130 |
Mass (g) |
VA Meter: 17.7, VA Meter Base: 25.8, Mounting Rail: 4 |
Dimension (mm) |
VAMeter: 36x36x14.7, VAMeter Base: 36x36x20.3, Mounting Rail: 51.5x48x5.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
VA Meterx1, VA Meter Basex1, 3.81-2P Terminalx2, Mounting Partsx4 |
Relay |
DC5 to 24V @5A |
Input/Output |
【PD】5 to 24V@0 to 5A |
Name of Manufacturer/Packer/Importer |
M5Stack |
Accuracy |
[Current detection] 2.5 μA/250 μA |
Power Consumption |
[Factory default] StampS3 USB power input: 5V/123.5mA, PD power input: 5V/118mA, 12V/66.8mA, 24V/26mA |
Wi-Fi |
IEEE802.11b/g/n (2.4GHz Wi-Fi) |
Flash |
8MB |
Output |
【PD】DC24V/3A(68℃), DC24V/5A(92℃) |
Specifications |

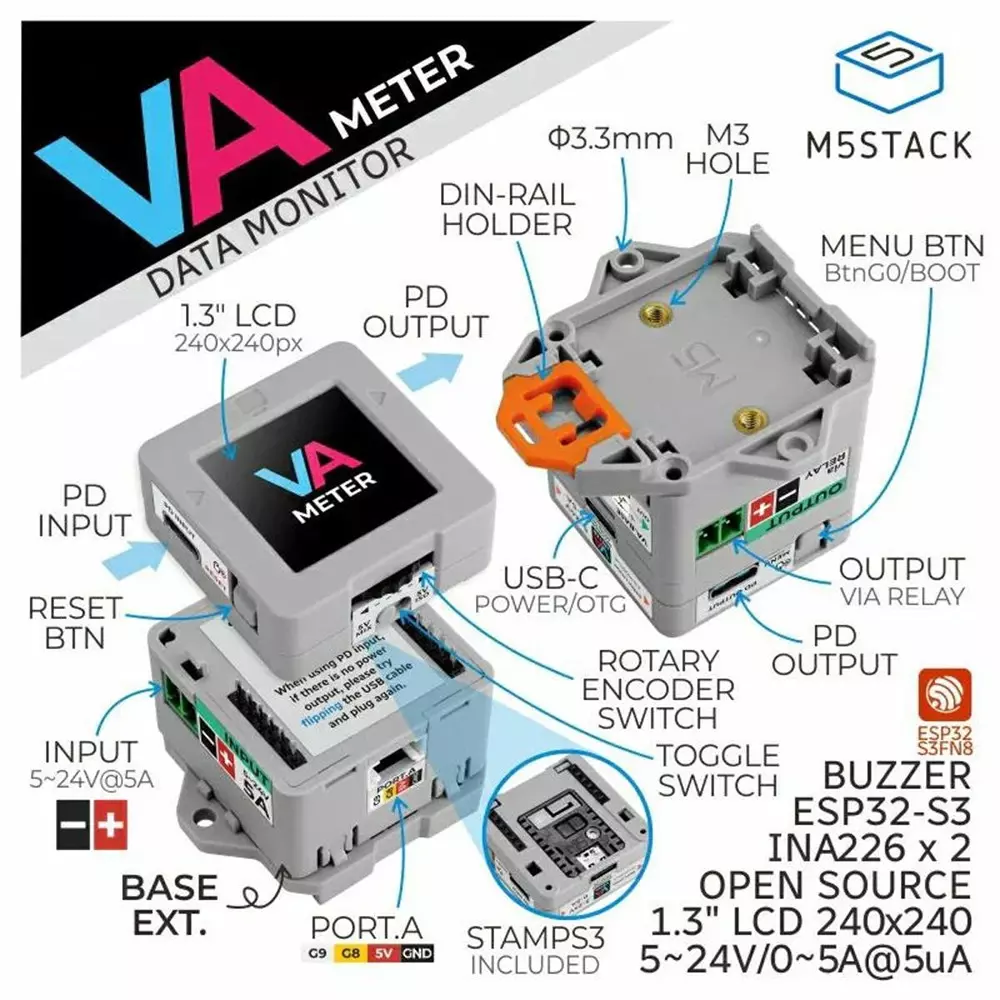

Power Detection Chip: INA226 SoC: ESP32S3FN8 (32-bit LX7, dual-core, 240MHz) Current Sampling Error: 1-100mA: 1.01%, 100mA-5A: 0.94%, UA Level Current: 0.69% User Interaction: Rotary Encoder Switch, Reset Button, Start Button, Board INA226 Communication Address: Two detection chips, INA226: 0x40/0x41 |
Operating Temperature (c) |
0 to +40℃ |
LCD Panel |
1.3-inch LCD (240x240 pixels) [Driver] ST7789 |
