Ships within 19 days

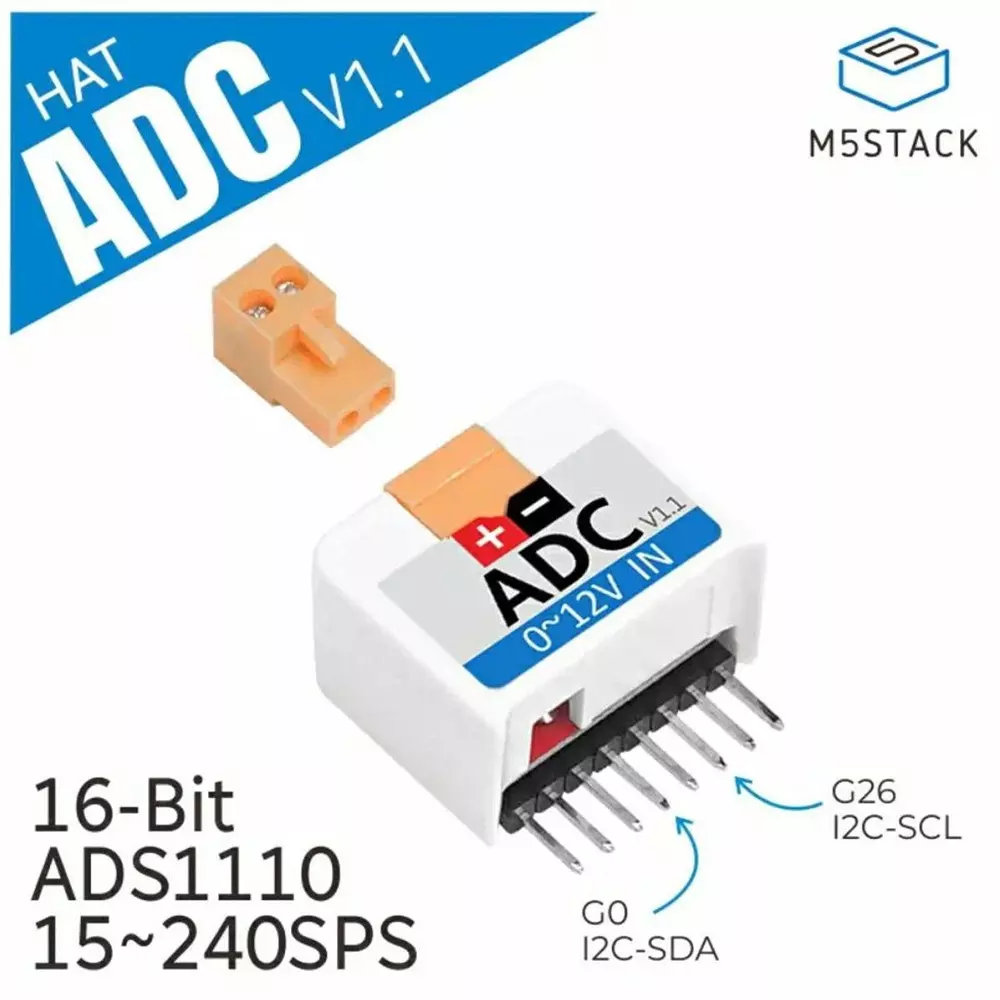

![M5Stack ADC Hat [Built-in reference] 2.048 V±0.05% Power Supply Voltage I2 C Communication Protocol, M5STACK-U069-V11](http://static1.industrybuying.com/products/industrial-automation/electrical-components-and-material/electrical-components/IND.ELE.745331465_1786627719717.webp "M5Stack ADC Hat [Built-in reference] 2.048 V±0.05% Power Supply Voltage I2 C Communication Protocol, M5STACK-U069-V11")
View
View
View
View
| Set Contents | M5StickC ADC Hat V1.1 (with ADS1110) main unitx1, 2-pin terminalx1 |

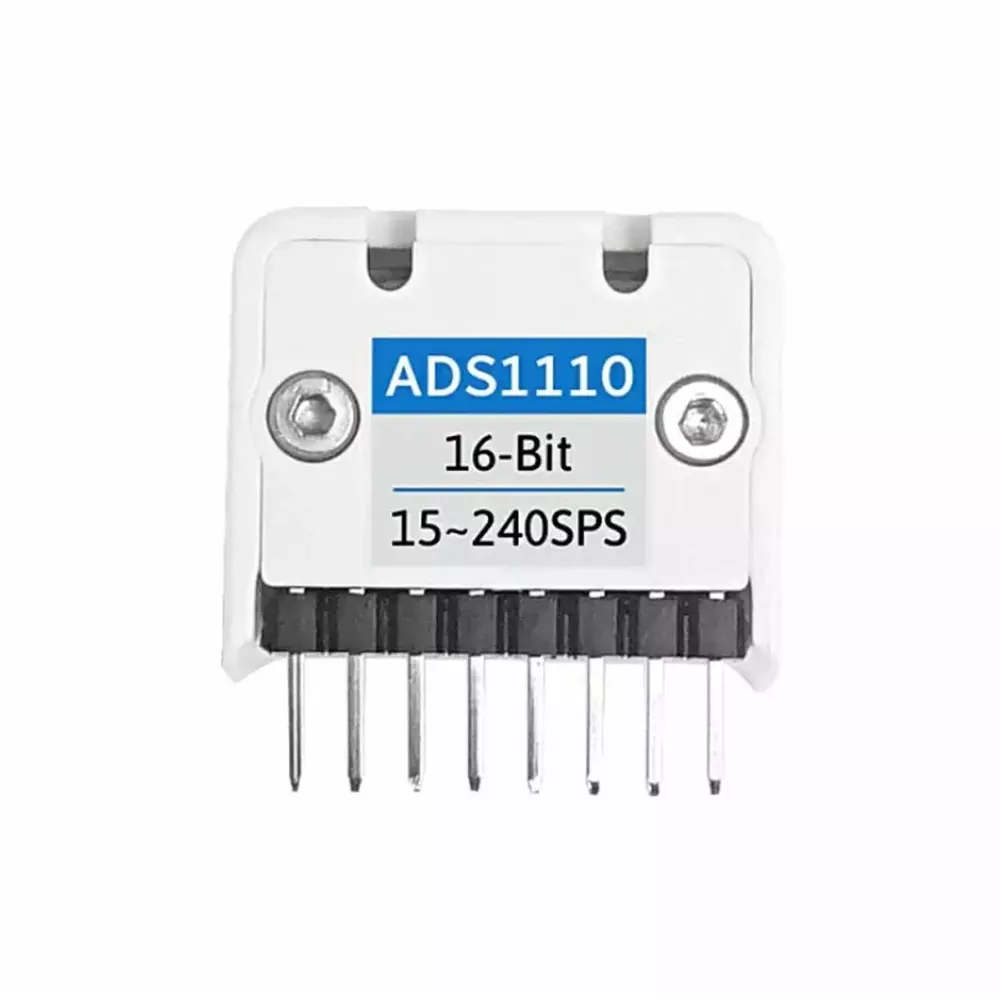

| Type of Product | M5StickC ADC Hat V1.1 (with ADS1110) |
| Model No | M5STACK-U069-V11 |
| Monotaro ID | 68556699 |
Set Contents |
M5StickC ADC Hat V1.1 (with ADS1110) main unitx1, 2-pin terminalx1 |
Type of Product |
M5StickC ADC Hat V1.1 (with ADS1110) |
Model No |
M5STACK-U069-V11 |
Monotaro ID |
68556699 |
Conversion Speed |
15sps to 240sps |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Resolution |
16 bit |
Noise Level |
[Low] 4μVp-p |
Input Connector |
3.96mm pitch, 2-pin terminal |
Input Voltage Range (V) |
0 to 12 |
Power Supply Voltage (V) |
[Built-in reference] 2.048V±0.05% |
Drift |
[Reference voltage] 5 ppm/℃ |
Input |
1 channel single-ended |
Communication Protocol |
I2C |
Specifications |
[Attenuator] 1/6.1 (input 12V - A/D converter VIN 1.967V) [I2C address] 0x48 |
Outer Dimensions |
24x25x13 mm |
A/D Converter |
ADS1110 |
Gain control |
[Built-in PGA] 1, 2, 4, 8 times |
