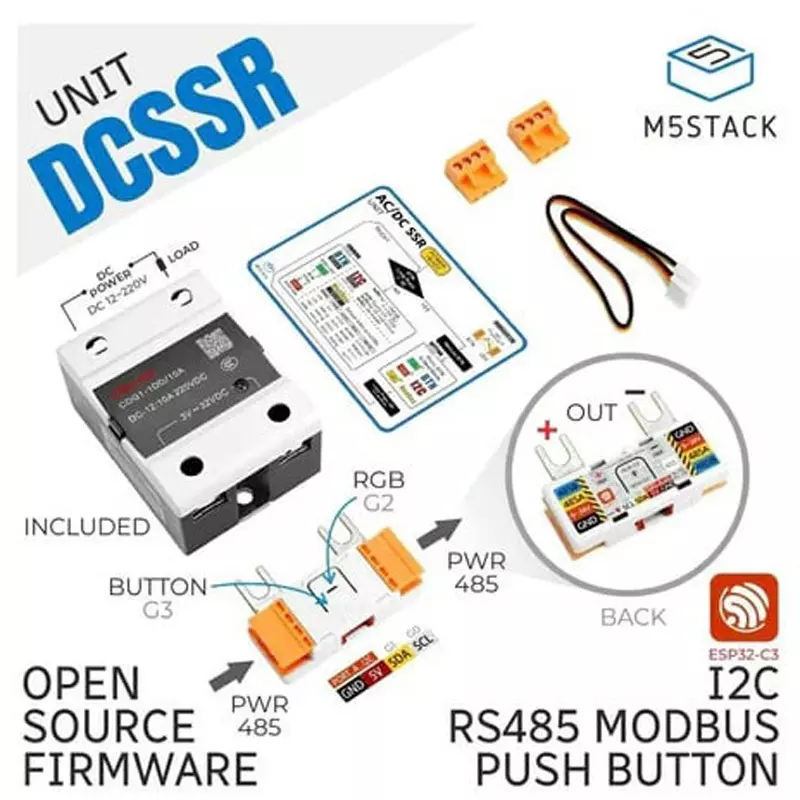

| Set Contents | 1xSolid State Relay, 1xDCSSR Unit, 1xHY2.0-4P Cable (20cm), 1xCommunication Protocol Manual, 2x3.96-4P Terminal Blocks |

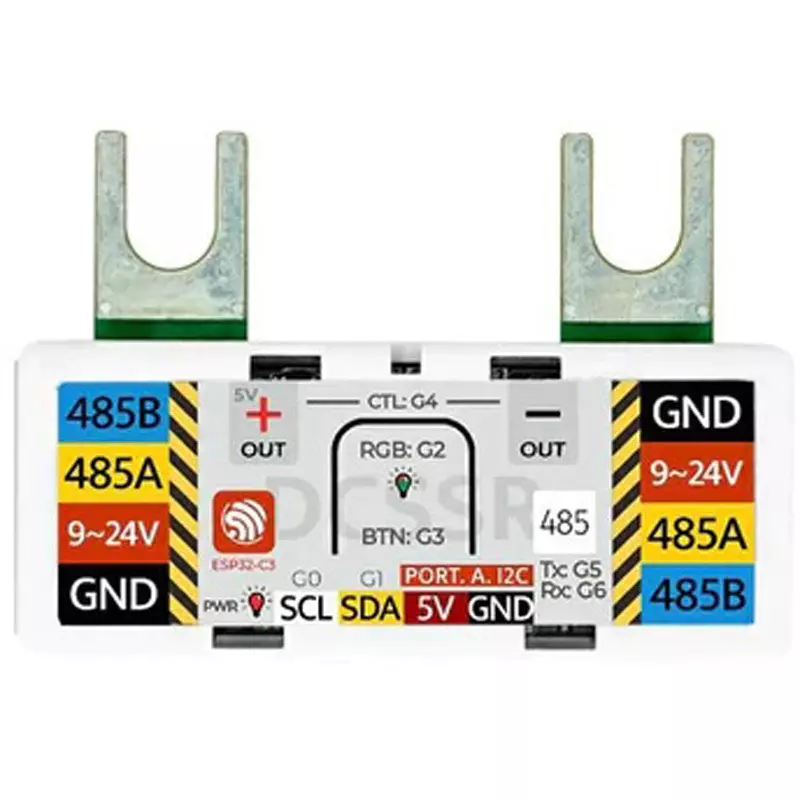

| Type of Product | DC Solid State Relay Unit for M5Stack (CDG1-1DD/10A) |
| Model No | M5STACK-U140 |
| Monotaro ID | 68556656 |
Set Contents |
1xSolid State Relay, 1xDCSSR Unit, 1xHY2.0-4P Cable (20cm), 1xCommunication Protocol Manual, 2x3.96-4P Terminal Blocks |
Type of Product |
DC Solid State Relay Unit for M5Stack (CDG1-1DD/10A) |
Model No |
M5STACK-U140 |
Monotaro ID |
68556656 |
Mass (g) |
112.6 |
Dimension (mm) |
80x45x31 |
Current (mA) |
[Breakdown Leak] ≦ 5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Controller |
[Main] ESP32-C3 |
LED |
[Programmable RGB] SK6812 |
Load Voltage |
24 to 220 V DC |
Indicator Lamp |
Red (lights on: closed, light off: not connected) |
Specifications |
[On-state voltage drop] ≦ 1.6V |
Electrical Life |
≧ 1 million times |
Load Current (Amp) |
10 (when heat is dissipated sufficiently) |
