Ships within 19 days
View
View
View
View

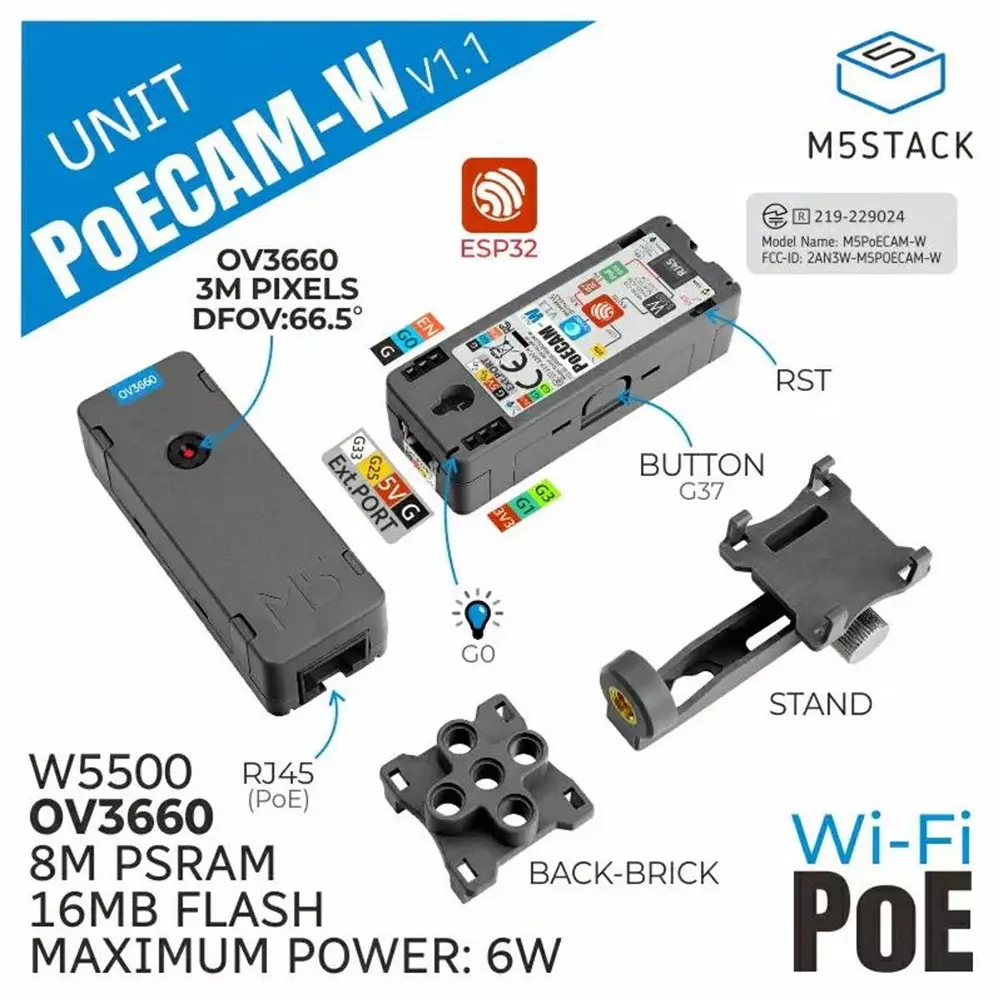

| Type of Product | M5Stack Wi-Fi PoE Camera (OV3660) |
| Model No | M5STACK-U121-B-V11 |
| Monotaro ID | 68556096 |
| Mass (g) | 38 |
Type of Product |
M5Stack Wi-Fi PoE Camera (OV3660) |
Model No |
M5STACK-U121-B-V11 |
Monotaro ID |
68556096 |
Mass (g) |
38 |
Module |
[Camera] OV3660 @3M pixels |
Viewing Angle |
65° |
Dimension (mm) |
64x24x18 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
M5PoECAM-W V1.1x1, Camera Mount Clipx1, LEGO Compatible Clipx1 |
Name of Manufacturer/Packer/Importer |
M5Stack |
Interface |
【Ethernet】RJ45 |
Memory |
【PSRAM】8MB |
Wi-Fi |
802.11 b/g/n |
Flash |
16MB |
Protocol |
[Supported TCP/IP] TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
Pixels |
1.75μmx1.75μm |
Specifications |
[SoC] ESP32-D0WDQ6-V3 [DFOV] 65.5° [Ethernet chip] W5500 |
PoE Support |
PoE IEEE802.3af (maximum power 6W) |
Control Function |
[Automatic Image Control] Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), Automatic Black Level Calibration (ABLC) |
Format Type |
[Output] RAW, RGB565/555/444, YUV422/420, YCbCr422, JPEG |
