| Set Contents | M5Stack Dial v1.1x1, L-shaped hex wrench for M2 screwsx1, 2.54 mm-2 pin terminalx1 |
| Type of Product | Dial for M5Stack v1.1 |
| Model No | M5STACK-K130-V11 |
| Monotaro ID | 68555771 |
Set Contents |
M5Stack Dial v1.1x1, L-shaped hex wrench for M2 screwsx1, 2.54 mm-2 pin terminalx1 |
Type of Product |

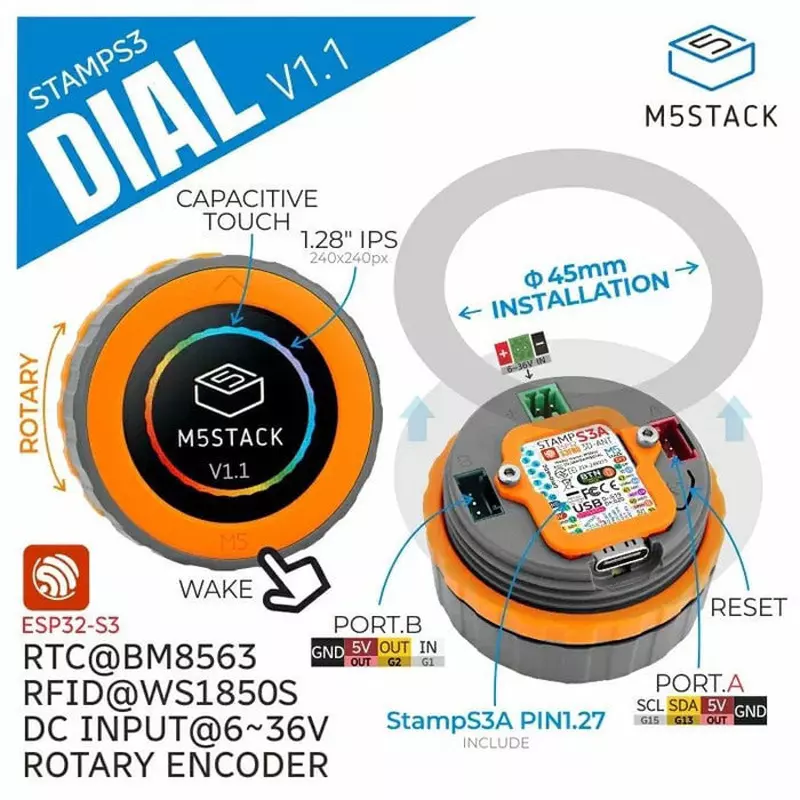

Dial for M5Stack v1.1 |
Model No |
M5STACK-K130-V11 |
Monotaro ID |
68555771 |
Mass (g) |
46.2 |
Dimension (mm) |
51.0x51.0x32.3 |
Current (mA) |
(Sleep current) USB power supply: DC5V@6.84mA (LDO consumption) / Battery only: DC4V@6uA (Operating current) USB power supply: DC5V@88.19mA / Battery only: DC4V@100mA |
Operating Temperature Range |
0 to +40℃ |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Input Voltage (V) |
DC6 to 36 |
Driver Type |
Screen driver: GC9A01 (1.28 inches, 240x240 pixels), Touch driver: FT3267 |
buzzer |
80 |
Socket |
1.25mm, 2-pin |
Suitable CPU |
SoC: ESP32-S3 (Xtensa LX7, 8MB flash, Wi-Fi, OTG, CDC) |
Encoder Type |
Resolution: 16 positions, 64 PPR |
matching base |
(RFID) WS1850S @ Tag operating frequency: 13.56MHz, ISO/IEC14443 Type A/Type B protocol |
