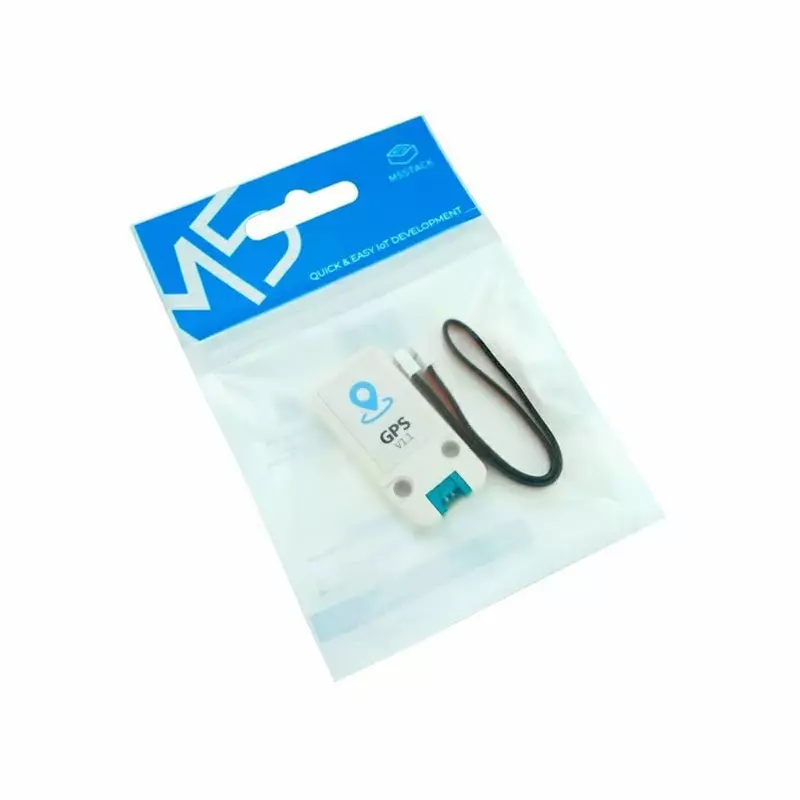

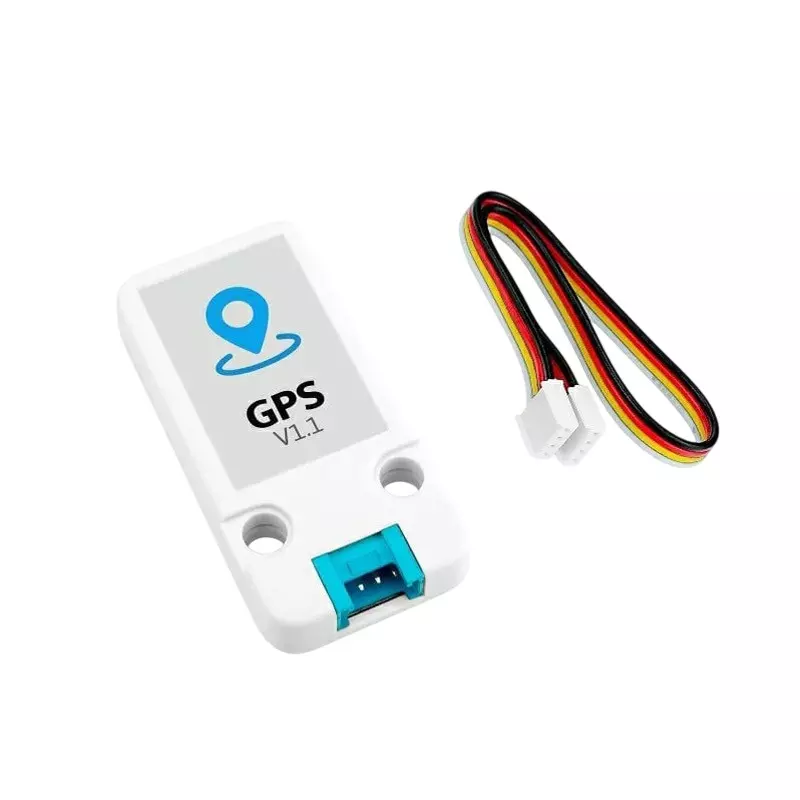

| Set Contents | M5Stack GPS unit v1.1x1 / HY2.0-4P cable (20cm)x1 |
| Type of Product | GPS unit for M5Stack v1.1 |
| Model No | M5STACK-U032-V11 |
| Monotaro ID | 68555710 |
Set Contents |
M5Stack GPS unit v1.1x1 / HY2.0-4P cable (20cm)x1 |
Type of Product |
GPS unit for M5Stack v1.1 |
Model No |
M5STACK-U032-V11 |
Monotaro ID |
68555710 |
Mass (g) |
12.3 |
Dimension (mm) |
48x24x8 |
Sensitivity |
Tracking: -162dBm, Capture: -160dBm, Cold Start: -148dBm |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
No. of Channels |
50 |
Accuracy |
Position accuracy: <1.5m (CEP50) |
Power Consumption |
DC5V/31.64 mA |
Protocol |
NMEA0183 4.1 |
Communication Protocol |
UART communication (baud rate 115200bps@8N1) |
Suitable CPU |
SoC：AT6668 |
matching base |
GPS/QZSS/BD2/BD3/GAL/GLO BDS：B1I+B1C, GPS/QZSS/SBAS：L1, GALILEO：E1, GLONASS：R1 |
Startup Time |
Cold start: 23, Hot start: 1 |
Display Update Rate |
Max 10Hz |
