| Set Contents | INA3221 timer power unitx1, Grove cablex1 |

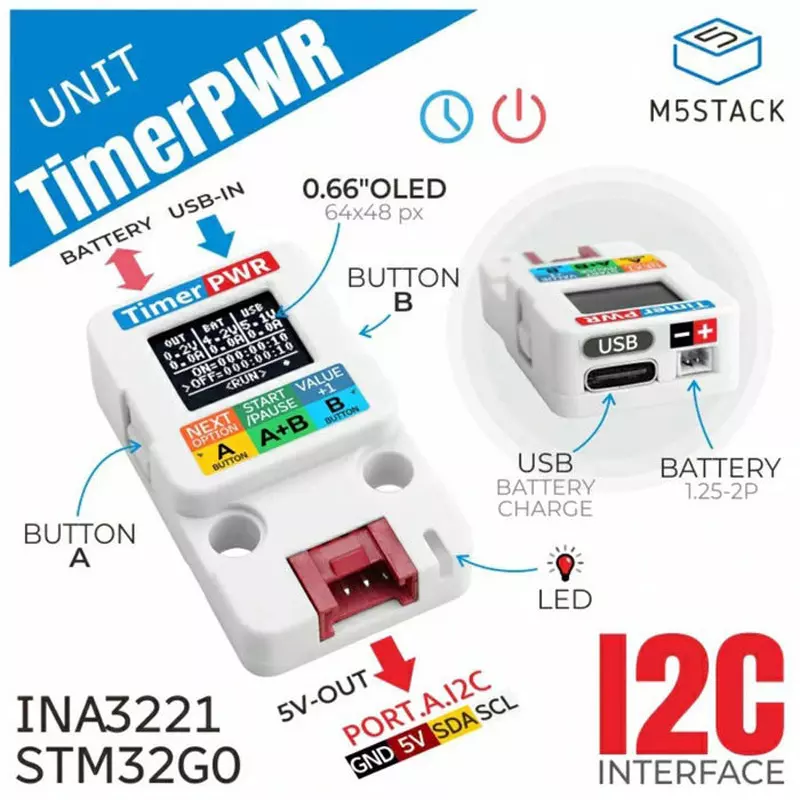

| Type of Product | Timer power unit for M5Stack (INA3221) |
| Model No | M5STACK-U189 |
| Monotaro ID | 68556595 |
Set Contents |
INA3221 timer power unitx1, Grove cablex1 |
Type of Product |
Timer power unit for M5Stack (INA3221) |
Model No |
M5STACK-U189 |
Monotaro ID |
68556595 |
Input Power |
5 V (USB Type-C connector for power input only) |
Battery |
Uses a 3.7V LiPo battery (not included), Battery terminals: 1.25mm pitch 2-pin (for 3.7V LiPo batteries), Charging current: 330mA, Charging IC: LGS4056H |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Display Type |
0.66-inch OLED display (white, 64x48) |
Interface |
[Grove] I2C connection, address used: 0x56 |
Switch Type |
[Operation] 2 |
LED |
[Power indicator] 1 |
Specifications |
[Built-in MCU] STM32G031G8U6 |
Outer Dimensions |
24x40x11 mm |
