Ships within 19 days
View
View
View
View

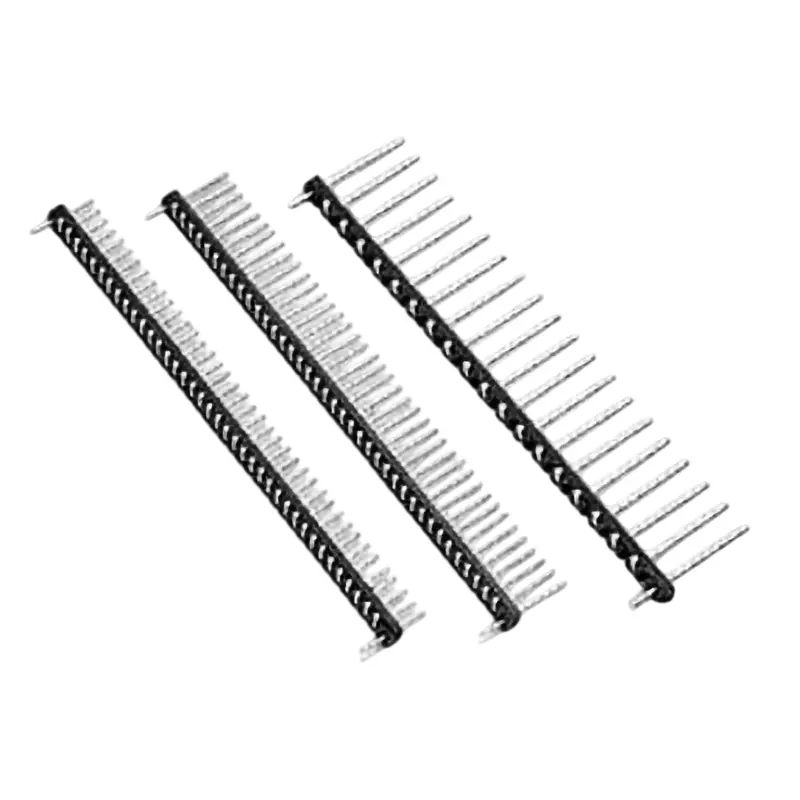

| Type of Product | Connecting Pin |
| Model No | OQS-03-5-19P |
| Monotaro ID | 43689529 |
| Material | Resin part: PPS black (UL94V-0), pin part: phosphor bronze |
Type of Product |
Connecting Pin |
Model No |
OQS-03-5-19P |
Monotaro ID |
43689529 |
Material |
Resin part: PPS black (UL94V-0), pin part: phosphor bronze |
Rated Current (A) |
2 |
Dimension B (Φmm) |
1.5 |
Dimension A (Φmm) |
5 |
Finish Type |
Nickel Base Gold Plating |
Operating Temperature Range |
-40 to +125℃ |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
No. of Connections |
19 |
Name of Manufacturer/Packer/Importer |
MacEight Co., Ltd. |
Pack of |
10 Pcs |
Insulation Resistance (MOhm) |
500 or more |
Dimension P |
2.54 mm |
Dimension E (Φmm) |
49.53 mm |
Dimension C |
0.4 mm |
Dimension d |
0.635 mm |
Insulation Voltage |
1000 V (AC, DC 1 minute) |
