| Type of Product | Grounding 2 P15 A Rubber Plug |
| Model No | ME2538 |
| Monotaro ID | 10241366 |
| Type | Plug |
Type of Product |
Grounding 2 P15 A Rubber Plug |
Model No |
ME2538 |
Monotaro ID |
10241366 |
Type |
Plug |
Rated Voltage (V) |
125 |
Rated Current (A) |
15 |
Shape |
Flat Blade Type |
Applicable crimp terminal |
(0.75 to 1.25mm² )R1.25-3.5, (2mm² )R2-3.5 |
Dimension C (Φmm) |
8.3 to 13 |

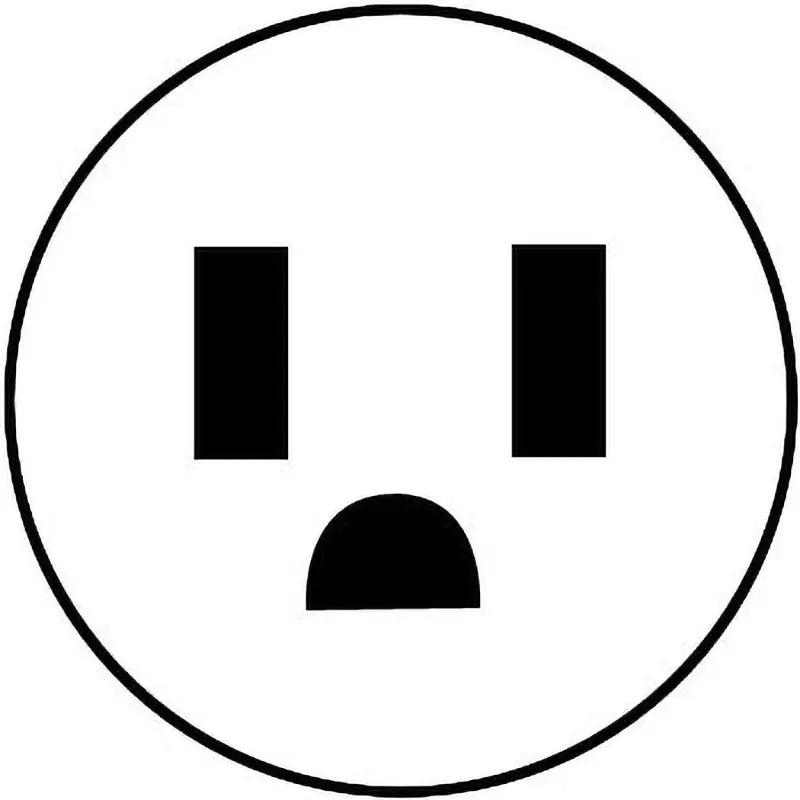

Outlet shape |
Ground 2P 15A 125V |
No. of Pole |
Grounding 2P |
Mass (g) |
45 |
Dimension A (Φmm) |
36 |
Dimensions B (mm) |
50 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
1CT・2CT・2RNCT・2PNCT・VCT・VCT(S)：0.75 to 2, VCTF・VCTF(S)：2, CTF・RNCTF：1.25・2 |
Name of Manufacturer/Packer/Importer |
Meikosha Co., Ltd. |
Pack of |
1 Pcs |
Trusco Part No. |
255-3759 |
Conform to |
RoHS |
Specifications |
Uses terminal screws with safety washers: prevents cord fraying. Toothed washer (detent). Solve the effect of spring washer with one washer. The washer does not fall off the terminal screw. |
